Speed 300rpm Industry Slip Ring Stator Fixed On Flang Installation Way 12x5A
Industry Slip Rings Speed 300rpm Stator fixed on Flang Installation way 12*5A
ECN000-12P1 is CENO customized industry slip rings, It’s built on an upgrade increasing the number of paths from an old version.This industry slip rings used in mining machinery, It’s strong stainless steel housing material and special flange installation way more suitable for mechanical work outdoor. The working speed and protection grade and be customized accord to customer request.
Features
Integrate different spec as applications
Anti-corrosion
Flange fixed
Applications
Automation equipment
Mining machinery
Pump driving motor
Machine tool
Optional
Circuit & Current
Path number
IP protection grade
Working speed
Specification
| ECN000-12P1 | Specification |
| Circuit & Current | 12*5A |
| Rating voltage | 0~220VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Insulation Resistance | 500MΩ@500VDC |
| Contact Resistance fluctuation | ≤30mΩ (50rpm) |
| Working temperature | -20~+60℃ |
| Working Humidity | ≤60% |
| Working speed | 0~300rpm |
| Contact material | Precious material |
| Housing material | Aluminum alloy sandblasting oxide black |
| Installation way |
Rotor end flat position drive Stator end fixed on Flange |
| Protection grade | IP51 |

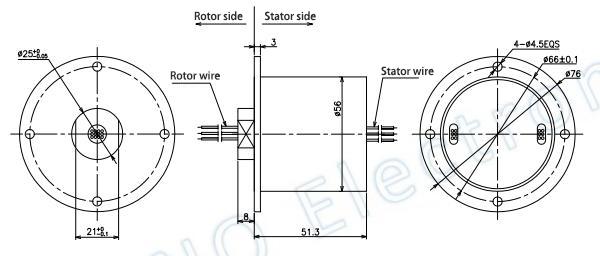

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
