5A 15A 35A 115mm Large Size Ethernet Slip Rings Precious Metals Carbon Brush
5A 15A 35A 115mm large size ethernet slip rings Precious Metals carbon brush
This is CENO's new product with multi-function and it can transmit 4 kinds currents for power and ethernet signal. Carbon brush contact material is the best solution for high ampere transferring. Integrated low power and even signal into one slip ring can be an option during design phase. Cable outlet use connection bolt instead of lead wire make connection much easier. This model has stainless steel housing for withstanding harsh environment as well as sturdy body is good enough for coping any mounting issue will occur. CENO have produced many kinds of multi-function slip rings for our new and old customers.
Features
• No electric arc
• High & Low current rating integrated
• No crosstalk
Applications
• Welding robot
• Rotary table
• Heavy crane
Optional
• Current rating
• Signal type
• Rotation speed
Specification
| ECN115-25P-01EM Specification | |
| Circuits & Current | 4x35A,3x15A,17x5A,2x6A,1xEthernet |
| Voltage | 0~220VAC |
| Electrical noise | ≤Max 30mΩ (50rpm) |
| Dielectric strength |
≥500V@50Hz (power) ≥300V@50Hz (signal) |
| Insulation resistance |
≥500MΩ@500VDC (power) ≥100MΩ@100VDC (signal) |
| Operating speed | 0-60 rpm |
| Contact material | Precious metal, carbon brush |
| Housing material | Stainless steel, Aluminium alloy |
| Operating temperature | 40℃~+80℃ |
| IP protection grade | IP51 |
| Through hole size | 115mm |

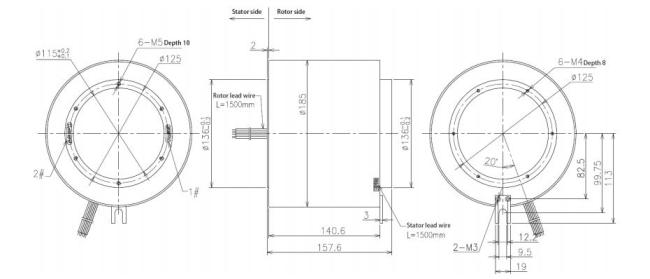

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
