2 Channels FC / APC Fiber Optic Rotary Joint With SM Connector
2 channels Fiber type FC/APC Fiber Optic Rotary Joint with SM Connector
There is an new production power & fiber optic slip ring ECN000-03P2-04S-02F-IP61 in CENO recently. It’s combined with 3circuits of 10A power signal, 4 circuits of data signal and two channel of fiber optic signal. The power & fiber optic slip ring wildly used in different works of life, such as the communication purposes, endoscopes and other medical devices, fiber optic sensor or fiber optic decoration etc.,
Specification
|
ECN000-03P2-04S-02F-IP61 |
|
| Current & Circuits | 3 circuits * 10A; 4 * signal |
| Diameter strength | 1500VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance fluctuation | ≤30mΩ (50rpm) |
| Lead wire size | AWG17# Tin coated Teflon |
| Lead wire length |
Rotor : 1000mm; Stator :1000mm |
| Operating speed | 0~250rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| Working temperature | -30°C ~ +80°C |
| Working humidity | <85% |
| Protect grade | IP61 |
| Fiber | Parameter |
| Fiber mode | SM |
| Channel | 2 |
| Wavelength | 1310/1550nm |
| Insert loss | <2.0dB |
| Return loss | ≥55dB |
| Insert loss | <±0.5 |
|
Contact type |
FC / APC |
| Cable length | Stator: 1000mm; Rotor : 1000mm |
Features
- Power integrated fiber optic
- High working speed, low electric noise
- Wavelength 1310/1550nm
- Fiber type SM & Contact type FC/APC
Applications
- Medical equipment
- Inspection instrument
- Rotary tables
- Test benches
- Communicaiton purposes
Optional
- Circuits number
- IP protection grade
- Fiber optic type
- Signal type & current rating
- Wavelength

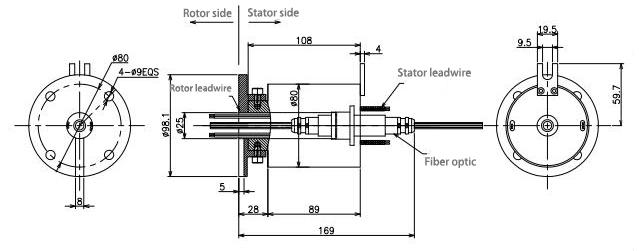

Outline drawing
