12 Circuits Industry Signal Slip Ring 8 Wires Power 100rpm IP51
Slip Ring industry 12 circuits signal & 8 wires power 100rpm IP51
ECN000-08P3-12S is an industry signal slip ring from CENO electrical company , there are 8 wires of 16Amp electric power and 12 circuits of signal, it can be working normally and stably at the speed of 100rpm and at the temperature from -30°C to +80°C. CENO research and development partner select the proper materials for this industry signal slip ring according to the protect grace IP51 as customer request. It’s mainly used on simulation tester, antenna system or Traffic control system.
Features
• Operate stably and combine various signals within optional
• Flange installation, Maintenance free and better installation than traditional slip rings
Applications
• Winding machine
• Packing robot
• Simulation tester
• Traffic control system
Optional
• Circuit number & Current size
• Protection grade
• Signal type
• Working speed
Specification
|
ECN000-08P3-12S |
|
| Current & Circuits | 8 circuits * 16A; 12 circuits * Signal |
| Rating Voltage | 0~300 VAC/VDC |
| Dielectric Strength |
≥ 1000VAC@50Hz (Power) ≥ 500VAC@50Hz (Signal) |
| Isolation resistance |
≥500MΩ@500VDC (Power) ≥300MΩ@100VDC (Signal) |
| Contact resistance float | Max 30mΩ (50rpm) |
| Lead wire size |
AWG14# Tin coated Teflon® UL (1.5mm²) AWG22# Tin coated Teflon® UL (0.35mm²) Six-core Twisted shielded wire (0.35mm²) |
| Lead wire length |
Rotor : 500mm Stator :500mm |
| Operating speed | 0~100rpm |
| Contact material | Precious Metal |
| Housing material | Aluminum alloy |
| Working temperature | -30°C ~ +80°C |
| Working humidity | <60% |
| Protect grade | IP51 |
| Rotation way | Stator side Flange installation |

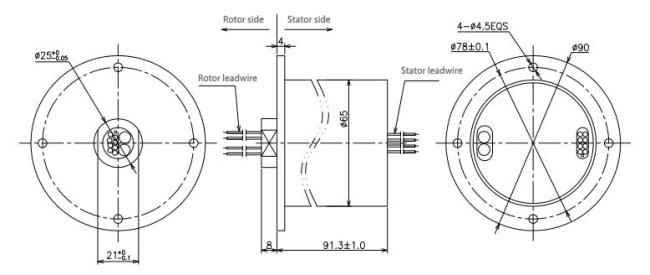

Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
