MM Type Fiber Optical Rotary Joint SC / APC Connector 100rpm Flange
Rotary Joint fiber optic MM type & SC / APC connector 100rpm Flange
ECN000-12P2-04F is an new designed integrated slip ring combined electrical power and Fiber Optical signal from CENO company. There are 12 circuits for 10A electrical power and 4 channels for Fiber Optical signals with the MM Fiber type, 850~1650nm wavelength and SC/APC connector, the protection grade of the fiber optical rotary joints part (electrical components excluded ) can be up IP67, the protection grade of electrical components part is IP51. It’s flange designed and easy to install or maintenance, gets well performance and various function, widely used on wind power plant, security camera, Multi-site radar linkage.
Specification
|
ECN000-12P2-04F |
|
| Current & Circuits | 12 circuits * 10A |
| Rating Voltage | 0~24 VAC/VDC |
| Dielectric Strength | ≥ 500VAC@50Hz |
| Isolation resistance | ≥100MΩ@100VDC |
| Electrical noise | Max 30mΩ (50rpm) |
| Lead wire size | AWG17# Wire Teflon® UL |
| Lead wire length |
Rotor : 500mm Stator : 500mm |
| Operating speed | 0~100rpm |
| Contact material | Precious Metal |
| Housing material | Aluminum alloy + Stainless steel |
| Working temperature | -30°C ~ +40°C |
| Working humidity | <60% |
| Protect grade | IP51 |
| Rotation way | Flange installation |
| Fiber Optical Rotary Joint | |
| Fiber type | MM |
| Fiber channel | 4 |
| Wavelength | 850~1650nm |
| Insertion Loss, max | 1.5dB |
| Return Loss, min | 40dB |
| Peak power, max | 23dBm |
| Lead wire length | Rotor : 500mm; Stator :500mm |
| Connector | SC / APC |
Features
- Power integrated 4 channels fiber optic
- High working speed, low electric noise
- Wavelength 850 /1650nm
- Fiber type SM & Contact type SC/APC
Applications
- Medical equipment
- Inspection instrument
- Rotary tables
- Test benches
- Communicaiton purposes
Optional
- Circuits number
- IP protection grade
- Fiber optic type
- Signal type & current rating
- Wavelength

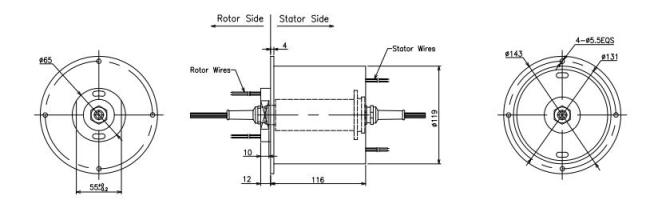

Outline drawing
