Automated Sanitary Fittings Faucets Water Meter Brass Valve Bodies Low Pressure Die Casting Systems For Industrial Manufacturing
Price:
Negotiable
MOQ:
1set
Delivery Time:
2 weeks
Brand:
Xiamen Dingzhu
Product Description

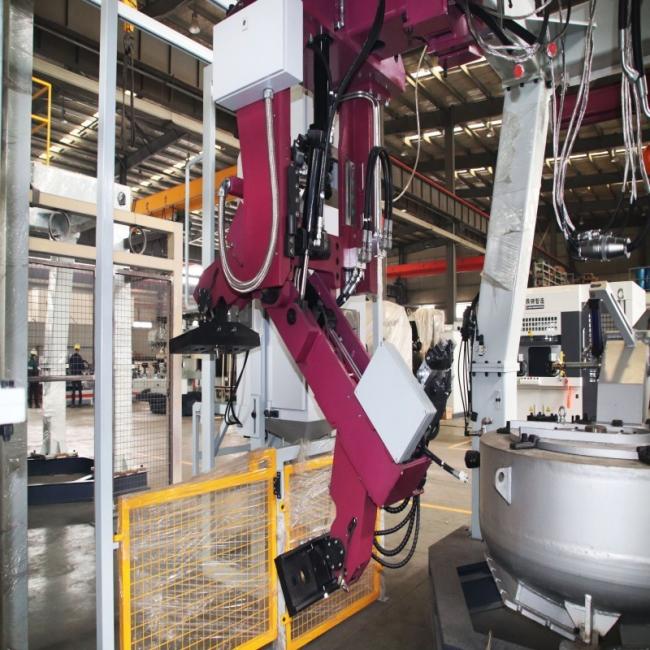

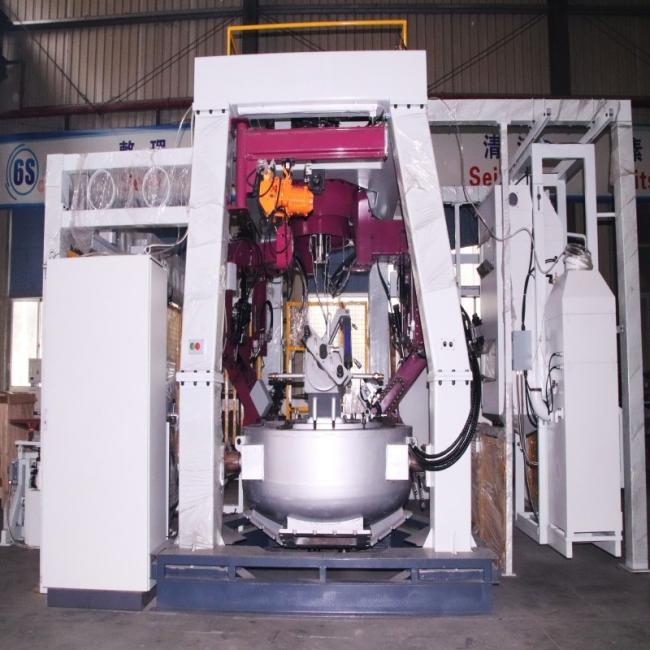

Automated Low Pressure Die Casting Systems for Brass Components
Specialized low pressure die casting machines designed for manufacturing brass sanitary fittings, faucets, water meters, and valve bodies with automated operation and rapid die changing capabilities.
Technical Specifications
| Items | RD-5040-S (Standard) | RD-8050-S (Larger) |
|---|---|---|
| Basic Parameters | ||
| Machine Size | 7000×6000×4200mm | 7400×6000×4350mm |
| Total Weight | 20T | 22T |
| Total Power | 180KW | 180KW |
| Voltage | 380V | 380V |
| Die Specifications | ||
| Max. Die Dimensions | 600×400×240mm | 800×500×240mm |
| Max. Die Thickness | 2×120mm | 2×120mm |
| Max. Die Opening Stroke | 372mm | 372mm |
| Max. Die Weight | 250KG | 500KG |
| Max. Force of Die Closing | 2400KG | 4000KG |
| Max. Force Of Ejector | 1000KG | 1000KG |
| Max. Die Ejector Stroke | 48mm | 48mm |
| Furnace Specifications | ||
| Melting Rate | 680KG/H | 680KG/H |
| Capacity | 2800KG | 2800KG |
| Inductor | 3×55KW | 3×35KW |
| Hydraulic System | ||
| Motor Power | 12KW | 8.7KW |
| Rated Pressure | 8Mpa | 8Mpa |
| Hydraulic Fluid Temp. | ≤55℃ | ≤55℃ |
Process Technology
In the low pressure casting process, molten metal is filled directly from the holding or casting furnace into the die or sand mould from below, with low turbulence and absolutely controlled filling for superior casting quality.

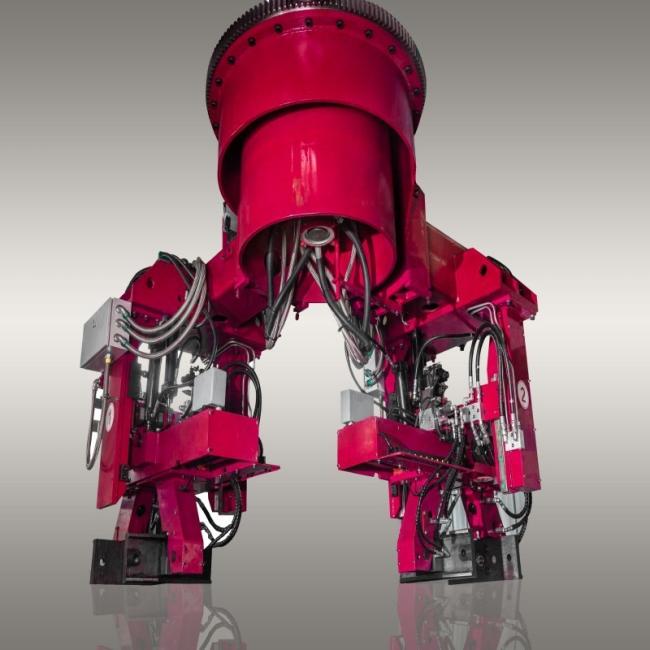

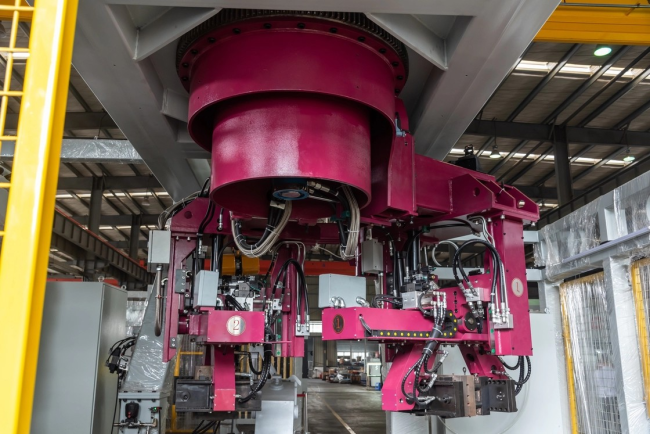

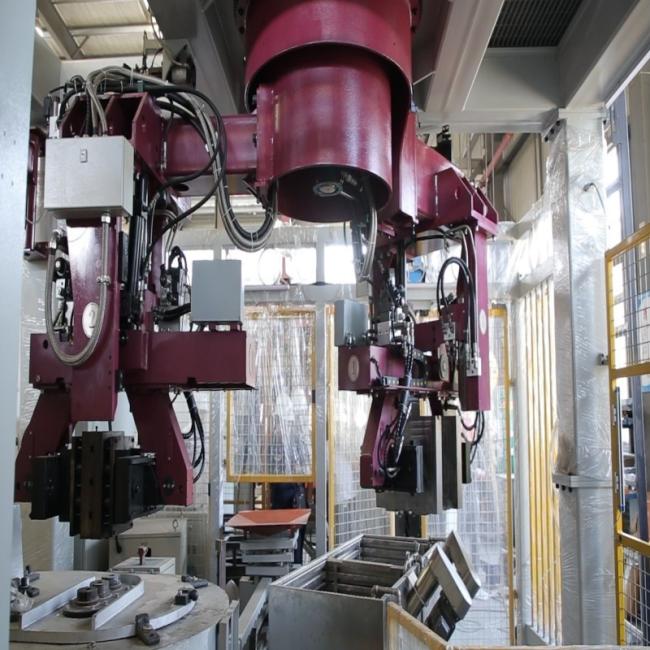

Product Gallery
Manufacturer Profile
Xiamen Dingzhu Intelligent Equipment Co., Ltd. (established 2016) is a global leader in intelligent manufacturing solutions specializing in low-pressure die casting, grinding, polishing, and automation systems. Our core offerings include automatic LPDC machines, robotic cell grinding/polishing systems, CNC polishing equipment, and turnkey production lines, serving industries such as water meter casting, door locks, auto parts, and precision deburring.
With exports to 30+ countries and partnerships with top brands like Kohler and TOTO, we empower manufacturers with safer, greener, and smarter production through proprietary technologies like dynamic pressure control and multi-axis robotic algorithms. 50+ patents and a 60+ R&D team drive innovations in low-pressure casting and robotic automation.
We deliver end-to-end solutions—from mold design (CAE simulation) to lean factory layouts—backed by 24/7 global support, localized service centers, and 48-hour on-site assistance. CE-certified with strict material inspection and a 1-year warranty, we prioritize eco-friendly practices and operational excellence.

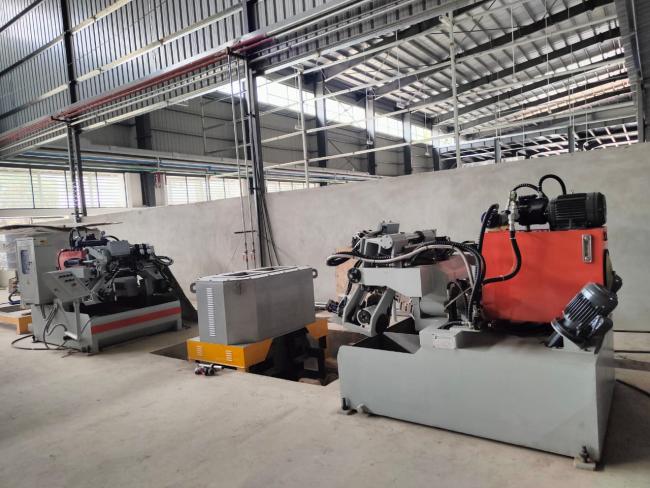

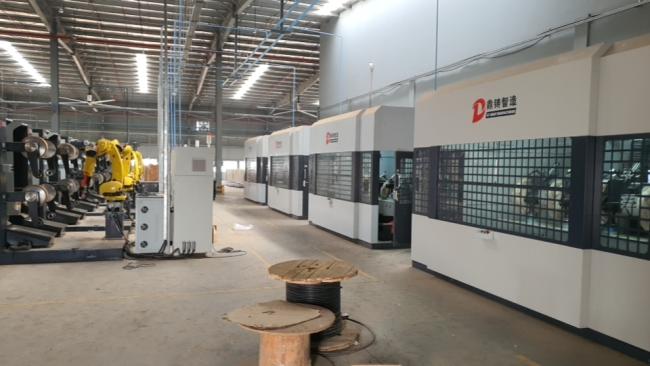

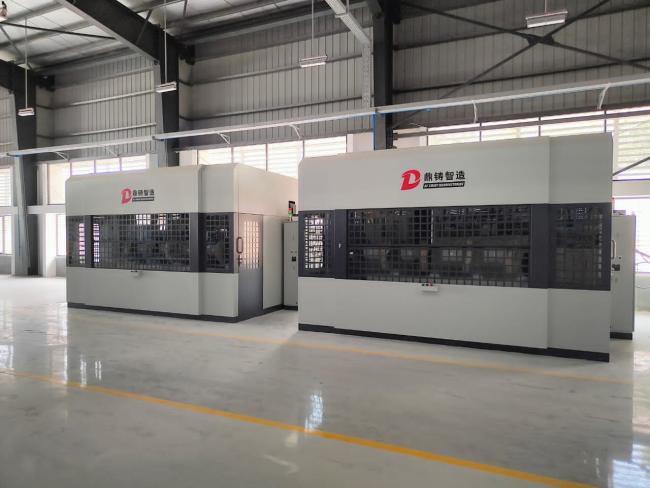

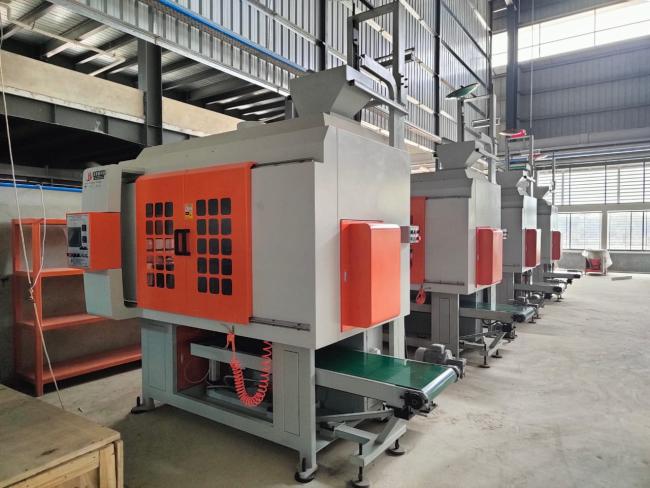

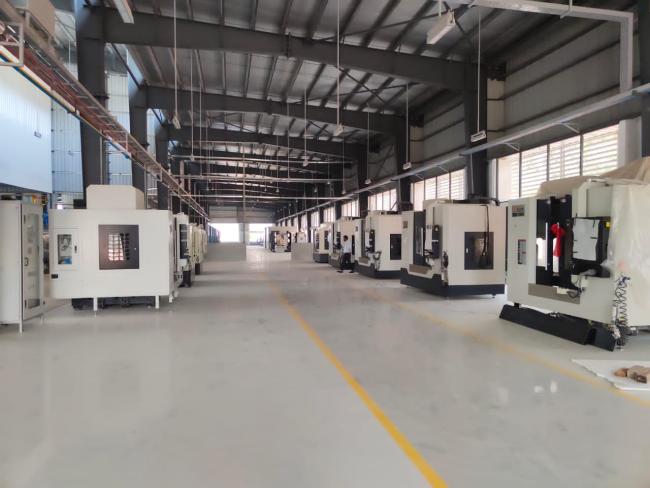

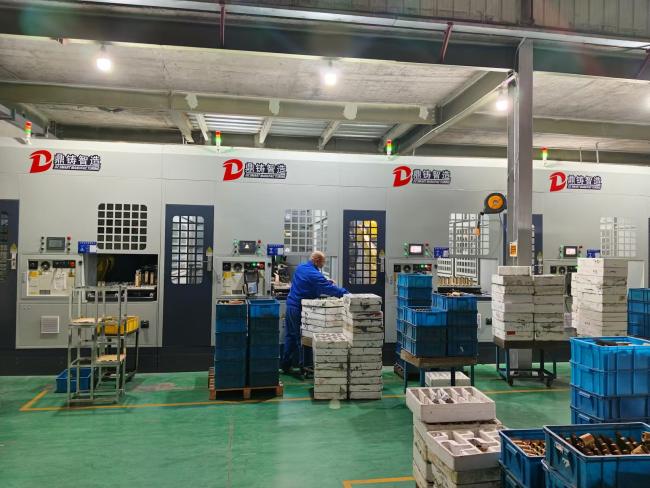

Production Process
International Exhibitions

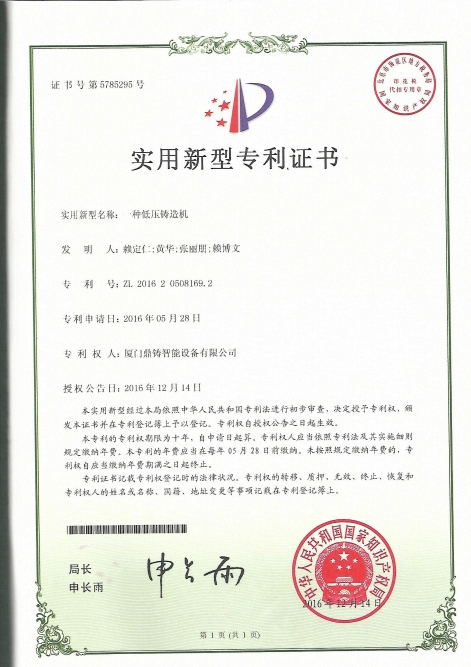

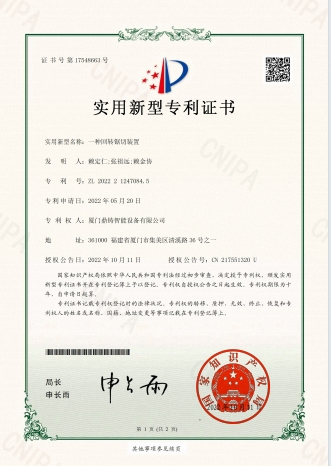

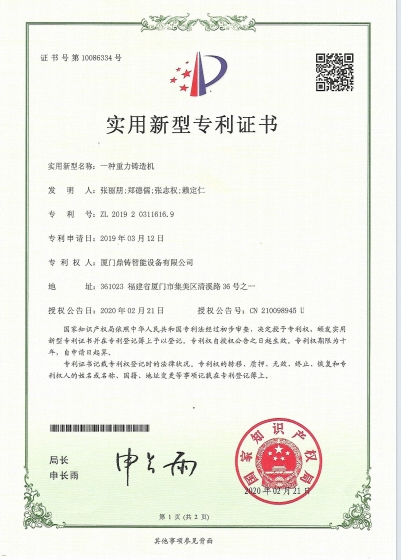

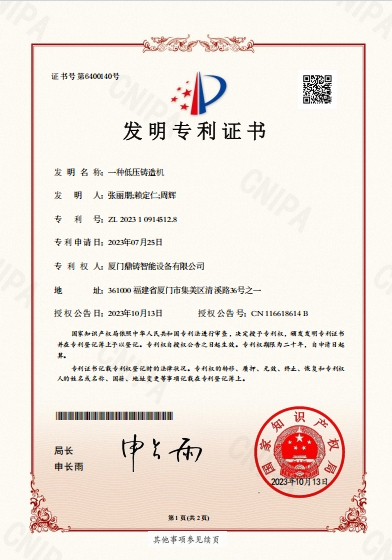

Quality Certifications

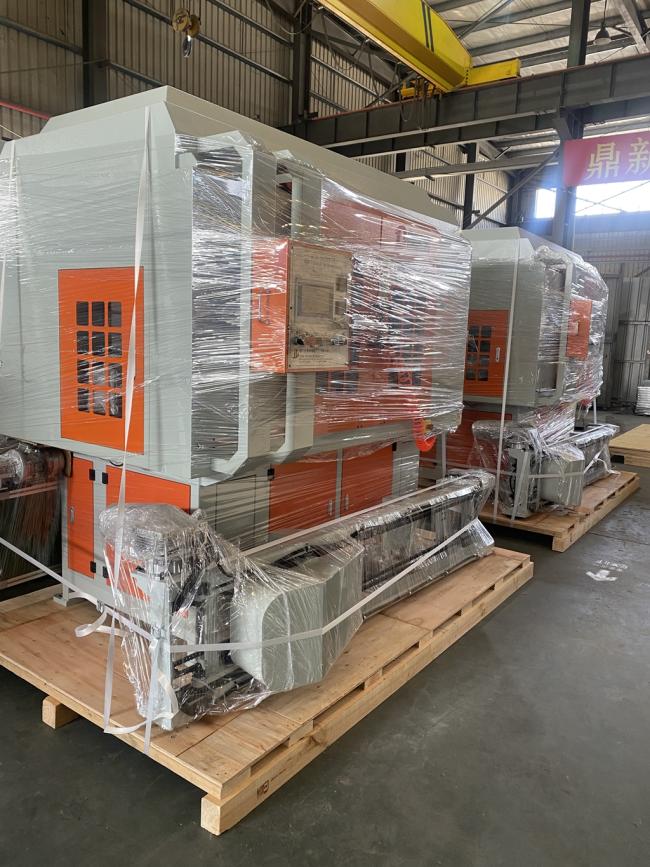

Packaging & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Frequently Asked Questions
Q: Could you please arrange the installation and commissioning?
A: Yes, we could and the buyer pays the charge.
Q: Could you arrange the production education?
A: Yes, we could and the buyer pays the charge.
Q: How long is the guarantee?
A: One year and charge for repair the whole life.
Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
