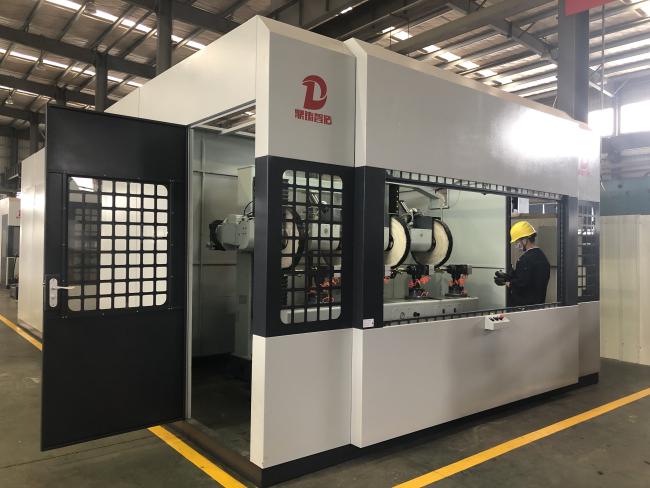

Sanitary Ware Metal Polishing Equipment , Stainless Steel Tube Polishing Equipment

metal steel pipe Metal polishing Equip finishing machine wheeled polishing machine Tube Polish Equipment

Feature:

1. The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 axises rotary; Multiple stations simultaneous operation high flexibility and high product efficiency. Widely used in sanitary ware, door control, auto parts field products polishing

2. With Italy advanced control system for high precision of control and high stability of move technology.

3. Software: Programmable, with protable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program.

4. Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque becomes smaller and automatically the compensation in all direction

5. Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;

6. Solid polishing wax, to set up the wax spraying cycle time, frequency.

Select fixed wax and liquid wax according to product features

7. Full digital control, Can store 50 programs

polishing program parameters can be saved and adjusted at any time.

8. CN/EN language display on Touch Panel. to set all parameters for an easy operation;fault codes display and alarm pages for quick troubles shooting and repair.

Main technical parameters​

Size:3000×3160×2772(L×W×H)

Power:16.25KW

Rated Voltage:380V 50Hz

Max. Polishing Mop Diameter:600mm

Min. Polishing Mop Diameter:400mm

X Axis Travel:1100

Y Axis Travel:900

Z Axis Travel:700

U Axis Travel:±60°

V Axis Travel:±360°

Operating Voltage :380V
