High Torque Worm Gear Slew Drive CE Certified Gear Ratio 57 / 1 For PV Solar Trackers
The slewing drive is a new type of slewing product, usually called slewing ring, which is usually composed of worm, slewing ring, housing, motor and other components. Since the core components are slewing bearings, they can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new rotary drive has features of easy installation, easy maintenance and higher IP grade.
Slewing drive are widely used in PV,CPV,STP solar tracking systems and construction applications including truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications.
Features
1. High backholding torque to improve the solar tracking system's safety
2. Enveloping worm drive inside
3. Multi tooth contact to ensure high load
4. Self-locking function
Technical Data
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 40% | ≤0.1 | Yes | 25 |
| 5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 34 |
| 7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 56 |
| 9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 40% | ≤0.1 | Yes | 92 |
| 12" | 78:1 | 5800 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 160 |
| 14" | 85:1 | 6750 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 224 |
| 17" | 102:1 | 9460 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 320 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 492 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 705 |
Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.

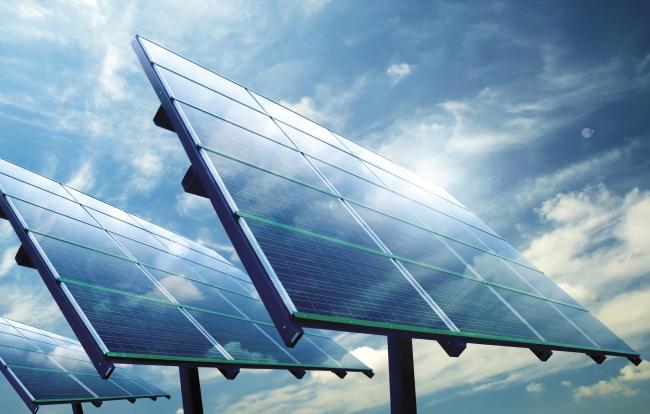

Applicatons
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
