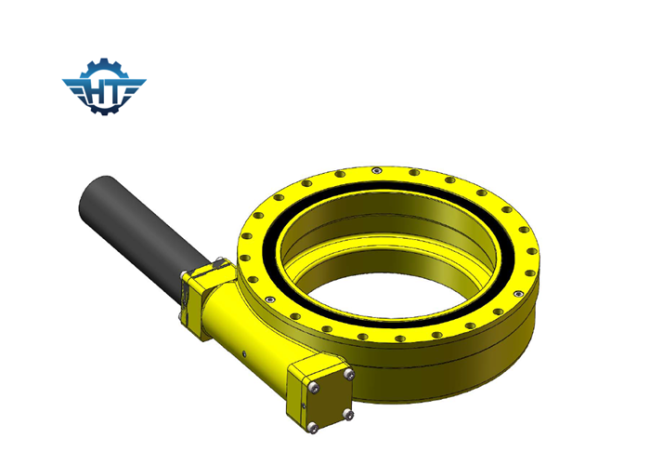

CE Certified SE Single Axis Worm Gear Slew Drive With Enclosed Housing For Solar Trackers
CE Certified SE Single Axis Worm Gear Slew Drive With Enclosed Housing For Solar Trackers
Description
Slew drive is a new kind of slew products, easy to mount and save more space.
Slew drive consists of worm, slew ring, hosing, motor and so on. The core part is slewing bearing, so slew drive can also bear axial, radial loading and titling moment at the same time.
Advantages
1. Compact design and space saving installation.
2. Modular construction allows very quick modifications.
3. Maximum load capacity.
4. Easy to integrate into existing applications.
5. Long life.
6. Almost free of maintenance.
7. Special designs available.
Performance Parameters of SE Series
| Model | Ratio | Rated Output Torque | Tilting Torque | Holding Torque | Axial Load | Radial Load | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | N.m | kN | kN | degree | Yes | kg | |||
| 1" | 31:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3" | 31:1 | 300 | 1500 | 7000 | 30 | 15 | 40% | ≤0.1 | Yes | 9 |
| 5" | 37:1 | 637.5 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 14 |
| 7" | 57:1 | 1750 | 10500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 23 |
| 9" | 61:1 | 4300 | 49900 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 44 |
| 12" | 78:1 | 5600 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 51 |
| 14" | 85:1 | 6750 | 135000 | 44200 | 680 | 230 | 40% | ≤0.1 | Yes | 62 |
| 17" | 102:1 | 9460 | 203000 | 53040 | 980 | 390 | 40% | ≤0.1 | Yes | 85 |
| 21" | 125:1 | 16000 | 271000 | 65000 | 1600 | 640 | 40% | ≤0.1 | Yes | 141 |
| 25" | 150:1 | 21450 | 346000 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 182 |
