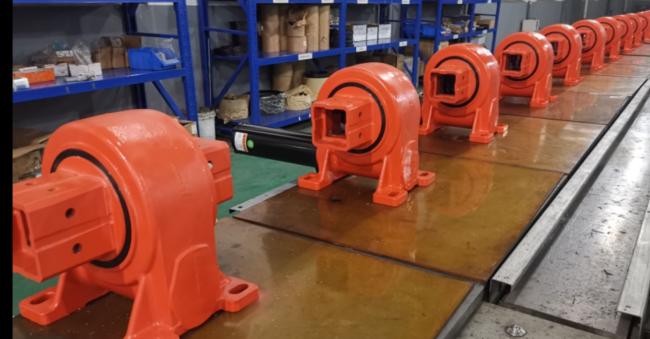

Ve9 Spray Painting High Torque Worm Gear Slew Drive Suitable For Low Latitude Areas​

Description

Slew drive, a kind of integrated drive power source of fully rotary deceleration transmission mechanism, it takes the slewing bearing as the transmission actuator and the mechanism attachment, by attaching the active part, the driving source and the shell to one ring in the inner and outer ring of the slewing bearing, while the other ring as both the transmission actuator and the connecting base of the driven working parts. In this way, by using the the characteristics of slewing bearing as the fully rotary connector to configure the drive power and the main drive parts effectively, making it a set of rotary, deceleration and drive functions and at the same time with simple structure, general type of deceleration transmission mechanism of easy manufacturing and maintenance.

Dimensions & Technical Data

Motor

Brushless DC Motor

A brushless DC motor is essentially flipped inside out, eliminating the need for brushes to flip the electromagnetic field. In brushless DC motors, the permanent magnets are on the rotor, and the electromagnets are on the stator. A computer then charges the electromagnets in the stator to rotate the rotor a full 360-degrees.

Specification:

Voltage: 24VDC

No load current: 0.6A (max)

No load output speed: 3.2 rpm

No load speed: 1300 rpm

Rated Speed: 2 rpm

Rated Torque: 43 Nm

Max Torque: 48 Nm

Rated Current: 1.8A (max)

IP Grade: IP65/66

Electrical connection:

1. Thick Red: Motor +

2. Thick Black: Motor -

3. Yellow Green: GND

4. Thin Yellow: hall B

5. Thin Red: hall +5V

6. Thin Black: hall GND

7. Thin Green: hall A

Q&A

1. How can i choose?

Please specify the wheel diameter size, width, voltage, power and no-load speed of the required motors.

2. Could I take samples to test quality and market in advance?

Sure, welcome to take samples to test our quality and service.

3. What's the total cost for samples?

Total sample cost= sample cost + freight

We will give you the best shipping cost after you choose the suitable gear motors

4. How do you ship samples?

Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex

5. What's your minimum order quantity?

10 sets after samples confirmed

6. What's your delivery time?

For standard samples: within 7days; for batch orders: within 25days.

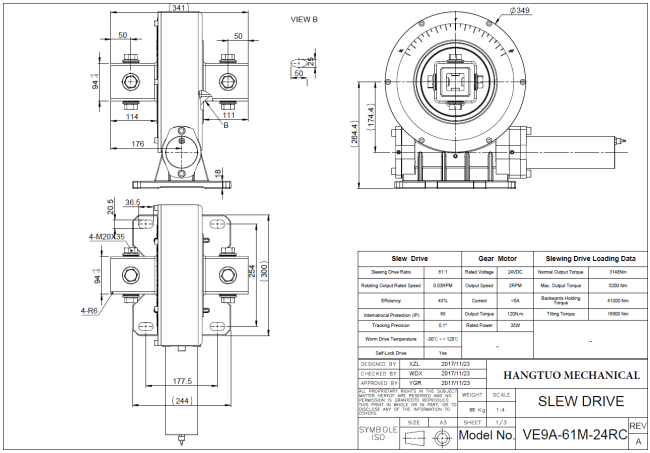

Dimensions
