1 Inch Horizontal Rotary Speed Reducer Small Slew Drive With High Torque For Solar Energy
Price:
USD 100~150/ pc
MOQ:
1 piece
Delivery Time:
15~45 days
Brand:
HangTuo
Product Description
1 Inch Horizontal Rotary Speed Reducer With High Torque For Solar Energy
Description
The slewing drive enables your solar tracking system to always follow the sun. You can use it horizontal, verticall or as a combination of horizontally and vertically mounted. The SE series slewing drive is a worm gear slewing drive consisting of hourglass worm, slewing ring, enclosed housing and other neccessary standard parts.

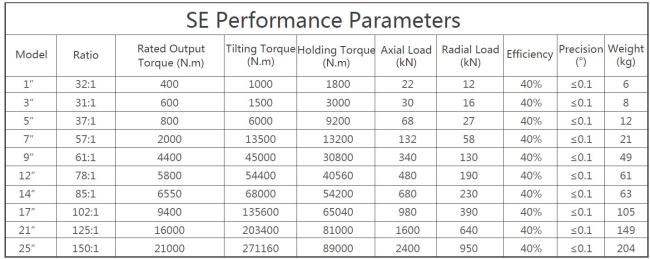

Specifications
| Model Number | SE1 |
| Brand Name | Hangtuo |
| Gear Ratio | 32:1 |
| Output Torque (Nm) | 400 |
| Tilting Torque (Nm) | 1000 |
| Holding Torque (Nm) | 1800 |
| Weight (kgs) | 6 |
| Axial Load (kN) | 22 |
| Radial Load (kN) | 12 |
| Working Temperature (℃) | -30～+120 |
| Place Of Origin | Changshu, China (Mainland) |
| Inspect | Full inspection |
| Processing | Forging/machining/coating/assembly |
| Service | 24 hours online |
Additional Information
| Min. Order Quantity | 5 units, sample order available |
| Port | China seaport ningbo/shanghai |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | Lead time 20-40 days |
| Packaging Details | Wooden case free from fumigation |
