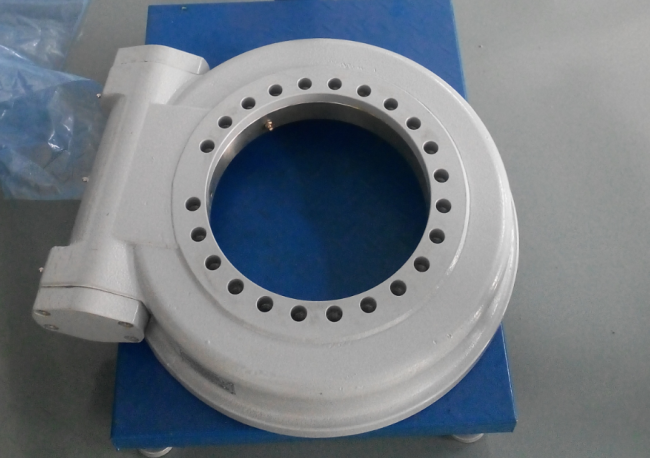

SE17 Single Axis Slew Drive With IP66 Enclosed Housing And Envelop Worm For Solar Trackers
SE17 Single Axis Slew Drive With IP66 Enclosed Housing And Envelop Worm For Solar Trackers
Description
SE slew ring bearing drive can bear axial force. It is designed in compact structure for construction machinery, habor machinery, aerial platform vehicle, military, etc. It is also widely used in solar tracking system to produce an efficient solar generation system such as single axis solar tracking system and dual axis solar tracking system.
Two SE slewing drives can be installed in the system and achieve azimuth and elevation direction rotating at the same time. It is believed that will contribute significantly in increasing the efficiency of energy collectin from the pv panels. Tracking is reported to potentially double the energy yield of a fixed PV solar system.
SE17 Slew Drive Parameter
| Product Name | SE17 Slew Drive |
| Output Torque | 9400 N.m |
| Tilting Moment Torque | 135600 N.m |
| Holding Torque | 65040 N.m |
| Static Axial Rating | 980 kN |
| Static Radial Rating | 390 kN |
| Dynamic Axial Rating | 490 kN |
| Dynamic Radial Rating | 245 kN |
| Motor Alternatives | 380V/220V AC Motor, DC Motor |
| Products Style | Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower |
| Application Feature | Solar Tracking System, Industrial Machinery |
Applicatons
The most common of SE slewing drive application is construction machinery. It can also for the dual-axis slewing drives are dual-axis solar trackers, such as heliostats and concentrated photovoltaics (CPV), and satellite or radar dishes. Other applications include automotive lifts, robotic arm positioners, and stage equipment.
