Two-Component Food Grade Liquid Silicone Rubber RH6250-30YH For Injection Produce Transparent Tubes
Two-Component Food Grade Liquid Silicone Rubber RH6250-30YH For Injection Produce Transparent Tubes
Description
Rui-He RH6250-30YH A/B is a two-component liquid silicone rubber for injection molding processes.
RH6250-30YH can be used to produce medical technical articles with high transparency and excellent rubber-elastic properties. All LSR are platinum cured(vulcanized) materials which are mixed in a 1:1 ratio by weight.
Key Features and Benefits
Vulcanisates consisting of RH6250-30YH LSR are distinguished by the following properties:
- Excellent biocompatibility
- High stability to ozone and ultraviolet light
- Neutral odor and taste
- Sterilizable with ethylene oxide, steam and gamma radiation
- Good transparency
- High thermal stability
- High recovery after a puncture
- Easy pigmentable with the LSR Colour Pastes
Typical Properties
| RH6250-30YH | |||
| Unit | Part-A | Part-B | |
| Appearance | / | translucent | translucent |
| Shore A hardness | A | 30±2 | |
| Tensile strength | Mpa | ≥ 7.0 | |
| Elongation | % | ≥650 | |
| Tear strength | KN/m | ≥ 15 | |
| Linear shrinkage rate | % | ≤ 0.1 | |
These figures are for reference only, please contact us for details.
Typical properties of the vulcanisate:
The mixing ratio of components A: B = 1: 1.
Vulcanisation: 5 min. 150 °C + 4 hrs. 200 °C post cure
Applications

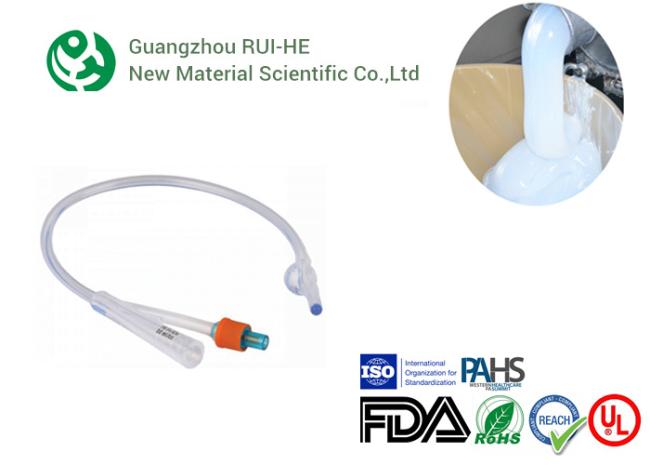

Because of the outstanding properties RH6250-30YH Lquid silicone rubber is particularly suitable for the following elastomeric articles: medical sacculus, negative pressure ball, catheter connector, sealing elements, diaphragms, ear plugs, bellows, baby teats, respiratory devices, air vent flaps, tube connectors, catheters, parts for medical technical equipment, mat, etc.
Performance Testing
RUIHE Silicone has an extensive quality control system that tests the quality of raw materials first. The material cannot be used unless they are tested and meet our quality control standards. If it does not pass our incoming quality control testing, the material is refused and trucked back to the manufacturer.
Second, during the producing process, our quality control group will test the new batch of compound silicone rubber by taking some samples (twice from solid silicone rubber or three times from liquid silicone rubber) from different steps in the process. After passing the test, this batch can be sealed to pack and deliver to the customers.

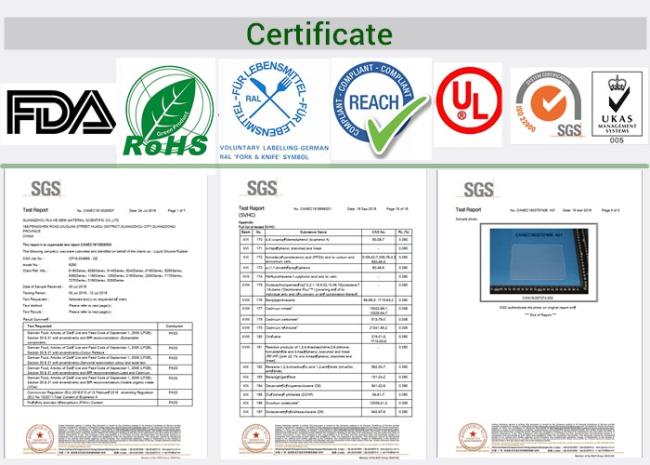

Certificate
Rui-He RH6250-30YH Liquid silicone rubber obtained the following test certificate: RoHS, FDA, MSDS, LFGB, ETC.
Packaging & Storage
- RH6250-30YH Medical is available in 20kgs pails or 200kgs drums.
- Store in a cool dry place out of direct sunlight, use it within 12 months from the day of manufacture.
Notice
This product cannot be contacted with compounds containing N, P, S to avoid affecting the catalytic effect of platinum.
