HTV High Temperature Vulcanizing Silicone Rubber Electric Power Transmission
High-Temperature Resistance HTV Electric Power Transmission Solid Silicon Rubber RH 7011 HT
Description
Rui - He® RH7011HT HTV silicone rubbers have a whole host of applications. High-temperature solid silicone rubber is mainly used for automotive industry, electrical and electronics applications, mechanical seals and other high-temperature products.
This includes a wide range of service temperatures (-50 to + 250°C, or even -90°C to + 350°C for special formulations), no known physical or physiological harmful effects, and excellent aging resistance.
Key Features and Typical Benefits
Vulcanisates consisting of Rui-He ® RH7011HT are distinguished by the following properties:
- Good high temperature/Endure heat to 250-350
- Excellent processability
- Well balanced physical properties and bound resilience
- High tensile strength
- Easy pigmentable with Colour
- Good tear resistance and shrink rate
- FDA, LFGB, ROHS qualified
Typical Properties
| RH7011HT | |||
| Unit | Part - A | ||
| Appearance | / | translucent | |
| Shore A hardness | A |
68-73 |
|
| Tensile strength | MPa | ≥ 6.0 | |
| Elongation | % | ≥ 220 | |
| Tear strength | KN / m | ≥ 11 | |
| Linear shrinkage rate | % | ≤ 0.5 | |
These figures are for reference only, please contact us for details.
Curing type: DBHP

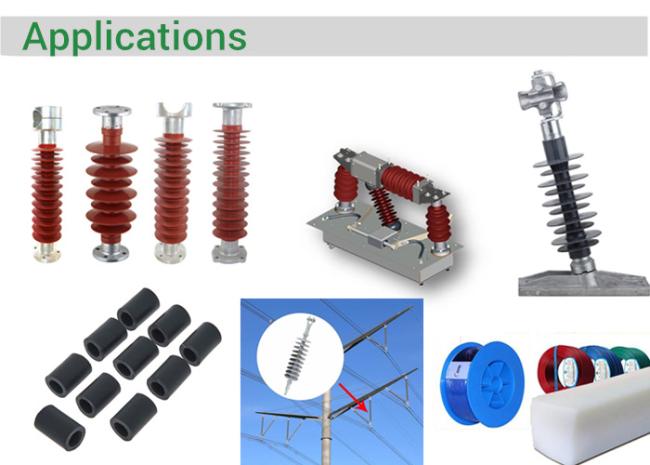

Applications
High-temperature vulcanizing silicone rubbers are suitable for a wide variety of application areas – in the automotive industry, electrical and electronics applications, the transmission and distribution industry, the construction sector, mechanical and process engineering, and in the fields of food, health care, and the medical sector.
Certification
Rui-He RH7011HT silicone rubber obtained the following test certificate: Rohs, FDA, MSDS, LFGB, ISO9001:2016.
Packaging & Storage
- RH7011HT is available in 20kgs/ bucket.
- Store in a cool dry place out of direct sunlight, use it within 12 months from the day of manufacture.
Our Services
1: Reach the international standard high quality with competitive price!
2: Passed the certificates including the FDA, RoHS, MSDS, SGS, ISO9001: 2016!
3: Online and on-site follow-up service for product demonstration!
4: Free technical training on products usage and operation instructions!
5: Free customer service to solve technical issues!
6: Any of our products with quality problems will be replaced within 3 months after purchase!
If you need to know the prices of our silicone rubbers, please contact us. We do not provide prices on the website because prices fluctuate for many reasons.
