145g 160g 4*4 Orange Color Fiberglass Mesh For Building Materials
145g 160g 4*4 Orange Color Fiberglass Mesh For Building Materials
Alkali Resistant Fiberglass Mesh
Description Of Fiberglass Mesh:
Fiberglass mesh is made of the C or E glass fiber yarn (main ingredient is a silicate, good chemical stability) through a special weaving technique, then coated by the anti-alkali and reinforcing agent and treated by high temperature heat finishing.
Fiberglass mesh can be made of several of types of fiberglass yarns,it is a inorganic non-metallic material with excellent properties.
It featured with outstanding water,alkali and aging resistance,good flexibility and softness,it is widely used in reinforecing walls,natural marble,plaster board,artificial stone materials and exterior insulation finishing system.
Usually have three different qualities,Platinum Crucible emulsion,Tuguo emulsion,Urea-formaldehyde glue. price will be different from left to right direction.
Parameters:
- length of the netting in a roll: 50m or 100m,
- standard width: 100cm or 110cm,
- rolls of other width and/or length are available upon customer's request.
Benefit Of Fiberglass Mesh:

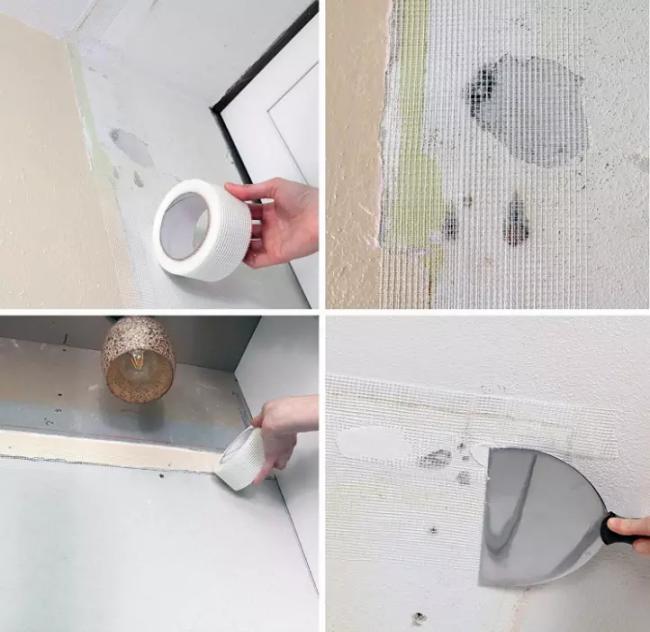

- Easy to install, by embedding in to wet base coat render especially for large surface areas
- Durable and resistant to chemical agents.
- Corrosion and alkali resistant
- Light and easy to transport
- Adaptable to uneven surfaces
- Easy and safe to use and has a triple coated resin coating to prevent fraying
Detailed Size Of Fiberglass Mesh:
| Item Number | Mesh size | Finsihed Weight | Tensile Strength×20cm | ||
| Warp | Weft | (g/m2) | Warp | Weft | |
| 10*10-100 | 10 | 10 | 100 | 1000 | 1250 |
| 5*5-80 | 5 | 5 | 80 | 700 | 850 |
| 5*5-90 | 5 | 5 | 90 | 700 | 1050 |
| 5*5-125 | 5 | 5 | 125 | 1200 | 1300 |
| 5*5-145 | 5 | 5 | 145 | 1400 | 1500 |
| 5*5-160 | 5 | 5 | 160 | 1450 | 1600 |
| 4*4-135 | 4 | 4 | 135 | 1000 | 1300 |
| 4*4-160 | 4 | 4 | 160 | 1550 | 1650 |
| 4*4-100 | 4 | 4 | 100 | 750 | 1000 |
Rolls of 1m x 50m (50 m²) each.
Application Of Fiberglass Mesh:
- 145g mesh 4*5 is designed for usage in insulation systems. For the production of mesh were used materials of the highest quality, so that the product has excellent technical parameters. Mesh has the properties of alkali resistant which guarantees a permanent reinforcement to a whole system. Excels in Styrofoam and mineral wool systems, fits with mineral and synthetic plasters.
- 2.60g 3*3 is designed for reinforcing interior plaster and stucco facade. Thanks to its flexibility and durability is ideal for reinforcement of complicated shapes of the facade of historic buildings. 60g meshused for internal plastering work eliminates the formation of cracks during the fast drying of surface.
- 145g 4*4 mesh is designed for usage in insulation systems. Mesh with increased weight and higher resistance to breaking force. For the production of mesh were used materials of the highest quality, so that the product has excellent technical parameters. Mesh has the properties of alkali resistant which guarantees a permanent reinforcement to a whole system. Excels in Styrofoam and mineral wool systems, fits with mineral and synthetic plasters.
- 100g,the most commonly used inside buildings for gypsum plasters. Thanks to its flexibility mesh was also used in the reinforcement of bituminous mass, for example: as a reinforcement of bituminous lagging conduit. Mesh has the properties of alkali resistant which guarantees a permanent reinforcement
