3000mm HDPE Sheet Extrusion Machine High Automatility Low Power Consumption
3000mm HDPE Sheet Extrusion Machine High Automatility Low Power Consumption

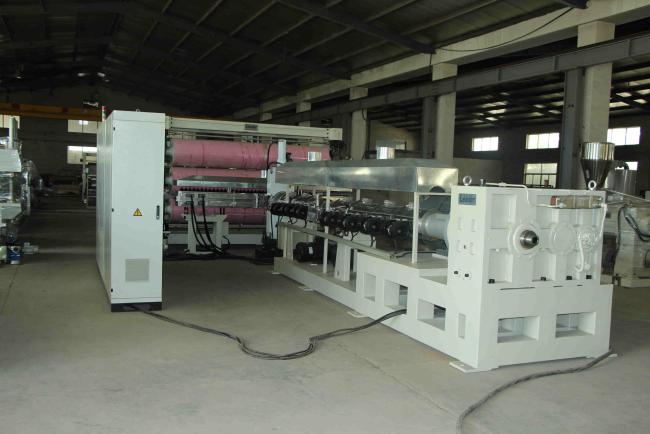

Width of 3000mm HDPE Geomembrance Waterproff Sheet Extrusion Line
LINE CONSISTS OF:
1) XAL-8002G Vacuum Feeding Machine 1 set
2) Dryer Hopper 500kg capacity 1 set
3) SJ-120/33 High efficiency single screw extruder with DC motor 160kw, 1 set
4) Hydraulic Exchaning unit 1 set
5) T-type die head, JC-times brand 1 set

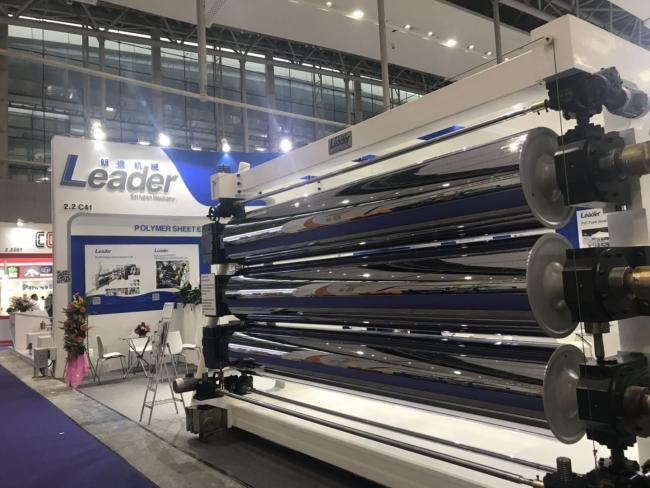

6) Three Roller calendar with diameter 450mm 1 set
7) Temperature controller for calendaring system 1 set
8) Cooling frame and edge trimming unit 1 set
9) Haul off machine 1 set
10) Plastic cutting machine -guillotine 1 set
11) Pneumatic stacker 1 set
12) spare parts: 1set
SHEET SPECIFICATIONS:
| Material | PE | PE |
| Sheet thickness | 0.5-3mm | 0.5-3mm |
| Sheet width | 1000-4000mm | 5000-8000mm |
| No. | Item | Value | ||||||
| 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm | 3.00mm | ||
| 1 | Density (g/cm3) |
0.939 | ||||||
| 2 | Tensile properties | |||||||
| Yield strength (N/mm) |
11 | 15 | 18 | 22 | 29 | 37 | 44 | |
| Break strength (N/mm) |
20 | 27 | 33 | 40 | 53 | 67 | 80 | |
| Yield elongation/% | 12 | |||||||
| Break elongation/% | ≥450 | |||||||
| 3 | Tear resistance/N | 93 | 125 | 156 | 187 | 249 | 311 | 374 |
| 4 | Puncture resistance/N | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
| 5 | Stress crack resistance/h | ≥1500 |
||||||
