250 - 450kw PMMA HIPS ABS Sheet Extrusion Line For Bathtub Sanitary Tubes
250 - 450kw PMMA HIPS ABS Sheet Extrusion Line For Bathtub Sanitary Tubes
Width of 2100mm ABS HIPS PMMA Refrigerator Plate , Sanitaryware Plate Extrusion Line
Production Line Compotents:
This line is specially designed to produce ABS/PMMA co-extruded sheets/boards, which posses the features of not only the strongly impact resistance of ABS, but also the high gloss and rigidity of PMMA; has good molding vacuum, high temperature and low temperature resistant, wear resistance, corrosion resistance and good mechanical processing of performance;
Widely used for bathtub, sanitary board, shower room, wash basin, steam room, etc.
Double layers refrigerator sheet: LMSB-120/65, (ABS+PMMA)
Trilayers refrigerator sheet: LMSB-120/65/45,(ABS+PS+HIPS).

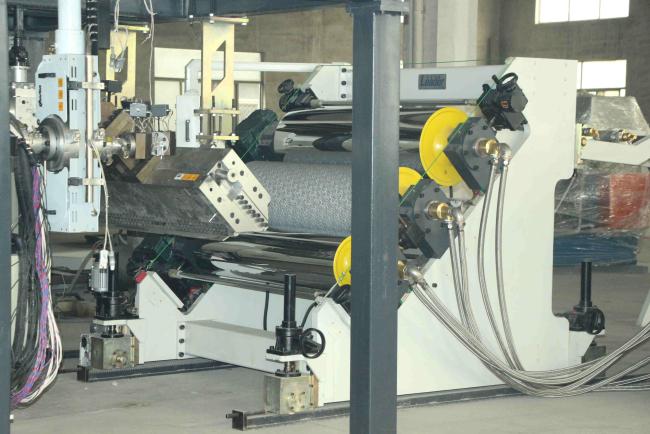

This line consists of : single screw extruders, co-extruder, hydraulic exchaning units,
T-type die head, three roller calendars, cooling frame and edge cutting units, haul off machine,
cutter or winder, stacker etc.
Technical Parameter:
| Extruder Model | LSJ-120/36, 65/33 | LSJ-130/36, 75/33 |
| Suitable material | ABS, PMMA | ABS, PMMA |
| Co-extrusion layer structure | A/B/C, A/B/A, A/B | A/B/A |
| Sheet width | 1200-1700mm | 1800-2100mm |
| Sheet thickness | 1-6mm, | 2-8mm |
| Max capacity | 500kg/h | 700kg/h |
