HDPE LLDPE Geomembrane Waterproof Liner Sheet Extrusion Line With Large Capacity
HDPE LLDPE Geomembrane Waterproof Liner Sheet Extrusion Line With Large Capacity

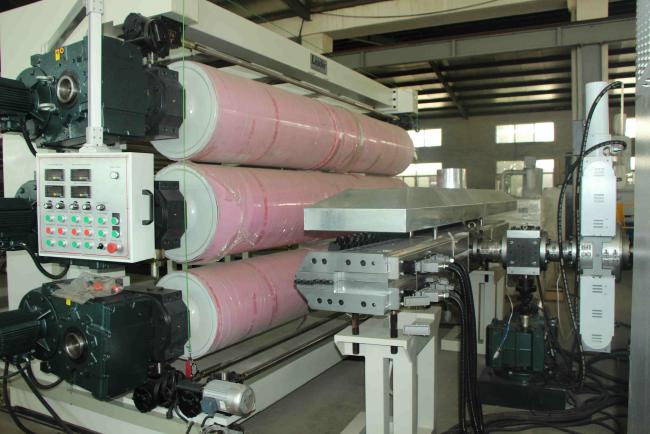

5000mm Width HDPE Material Geomembrance Waterproof Sheet Extrusion Line
PART 1: APPLICATIONS:
1. For waterproofing usage in industrial & civil buildings including the green roof, flat roof and the sloping roof.
2. Underground waterproof: Reservoir, dam, pool. Waterproof usage in Tunnel, grain depot, artificial engineering, landfill, Artificial lake.
PART 2: SHEET SPECIFICATIONS:
| Material | PE | PE |
| Sheet thickness | 0.5-3mm | 0.5-3mm |
| Sheet width | 1000-4000mm | 5000-8000mm |
| No. | Item | Value | ||||||
| 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm | 3.00mm | ||
| 1 | Density (g/cm3) |
0.939 | ||||||
| 2 | Tensile properties | |||||||
| Yield strength (N/mm) |
11 | 15 | 18 | 22 | 29 | 37 | 44 | |
| Break strength (N/mm) |
20 | 27 | 33 | 40 | 53 | 67 | 80 | |
| Yield elongation/% | 12 | |||||||
| Break elongation/% | ≥450 | |||||||
| 3 | Tear resistance/N | 93 | 125 | 156 | 187 | 249 | 311 | 374 |
| 4 | Puncture resistance/N | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
| 5 | Stress crack resistance/h | ≥1500 |
||||||
PART 4: GUARANTEE TIME AND AFTER SALE SERVICE:
1. Warranty for machinery: 18 months for mechanical parts, 12 months for electrical parts.
2. The seller will dispatch one or two (1 or 2) engineers from the seller to the buyer's factory for installation and commissioning and training. The buyer should bear the cost of air-tickets, hotel and food, and 80 USD/day for each engineer.
