Plastic Sheet PVC Sheet Extrusion Line PVC Sheet Extruder PVC Album Sheet Extrusion Line
Price:
negotiable
MOQ:
1 set
Delivery Time:
90-105 workdays
Brand:
Leader
Product Description
Plastic Sheet PVC Sheet Extrusion Line PVC Sheet Extruder PVC Album Sheet Extrusion Line
Product Description:

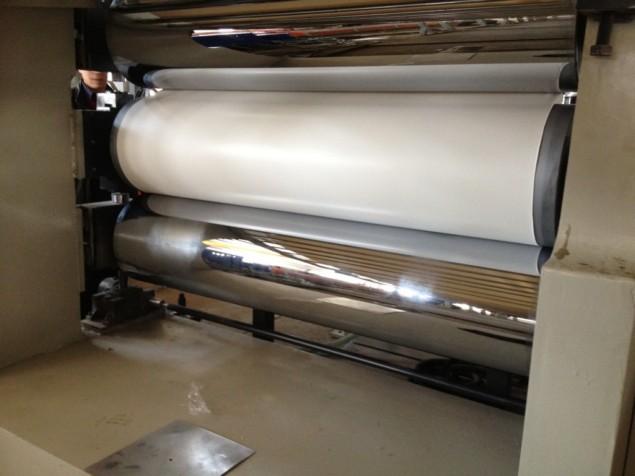

This line is specially designed to produce thin pvc sheets. This line consists of conical twin screw extruder, T-die head and other downstream machine parts. The PVC sheet produced by our machines has such characteristics of good plasticization, easy to form, high tension, accurate products color controlling , high capacity, fireproof, economical and can be replaced PVC cast sheet. PVC edge band is widely used in furniture edge banding and skinning.
Technical data:
| Model | LMSB65/132 | LMSB80/156 | LMSB92/188 |
| Max product width | 1000mm | 1500mm | 2000mm |
| Products thickness | 0.5-3mm | 0.5-3mm | 0.5-3mm |
| Extruder model | SJ-65/132 | SJ80/156 | SJ-92/188 |
| Rollers diameter | 350mm | 400mm | 450mm |
| Rollers temperature control | Oil/water | Oil/water | Oil/water |
| Main motor power | 37kw | 55kw,75kw | 75kw, 110kw |
| Capacity | 250kg/h | 360kg/h | 550kg/h |
| Total line Length | 22m | 28m | 35m |
