Laminated PVC Roof Membrane Sheet Extrusion Line 0.5-6mm Thickness
Laminated PVC Roof Membrane Sheet Extrusion Line 0.5-6mm Thickness
Summary Introduction

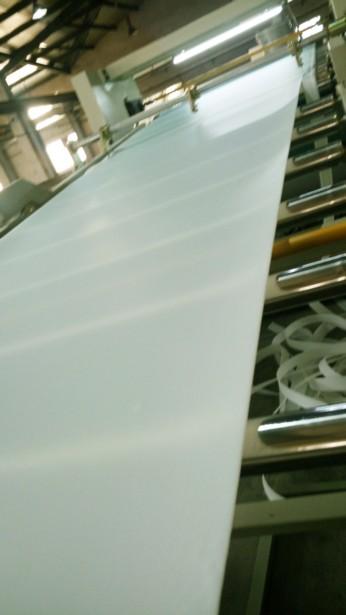

The PVC Roof membrane machine adopts flat T-die extrusion process and three roller calendars calibrating technology composed of teh according downstream machines parts , like geotextile laminating unit , haul off unit , sheets accumulator , transverse cutter and automatic winder etc , using a variety of resins such as PVC , etc , as raw material to produce geomembrane waterproof sheets , also called geo liners , geomembrane linning material , geo linning products , geomembrane covers etc . The geomemrane manufactured by our machine can reach GM13 standards .
SHEET SPECIFICATIONS:
Sheet width :1500-2000mm
Thickness:0.5-6mm
Sheet structure: Single layer or multi-layer co-extrusion
Sheet surface: can be smooth type , can be embossed/textured type , can be geotextile type
Sheets extrusion capacity :600-800kg/h
Processing raw material :
PVC granules , recycle falkes , carbon black of masterbatch , other filler material etc .
Main Technical Data :
| Main extruder model | LSJSZ-92/188 | |||
| CO-extruder model | SJSZ-65/132 | |||
| Extrusion capacity | 600-800kg/h | |||
| Installed power approximate | 450kw | |||
| Main motor power | 110kw | |||
| Sheets width | 1500-2000mm | |||
| Sheets thickness | 0.5-6mm | |||
| Thickness of the compound films | 0.2-2.5mm | |||
| Sheets structure | Single layers, multi-layers co-extrusion type, A/B, A/B/A type etc | |||
| Sheets surface | Can be smooth type, textured types, or with geotextile laminating | |||
| Width of flat T die head | 1650mm, 2200mm | |||
| Calibrating roller calendars sizes | Φ450-600mm | |||
| Cooling method | Circulated water Or Thermo-transferring oil | |||
APPLICATIONS:
1. Liners for water conveyance canals/water reservoirs/brine solutions/solar ponds/waste
conveyance/radioactive waste liquid/secondary containment of underground storage tank etc.
2. Seepage control within zoned earth dam and water proofing in coffer dam
3. Covers for solid waste land fields/waste liquid/pollution prevention
4. Structural supports as temporary dam
5. To line canal/swimming pool/tannery waste treatment ponds/acid tanks/floors etc.
