Polycarbonate Hollow Profile Sheet Extrusion Line UV Protection PLC Control
Polycarbonate Hollow Profile Sheet Extrusion Line UV Protection PLC Control
Introduction

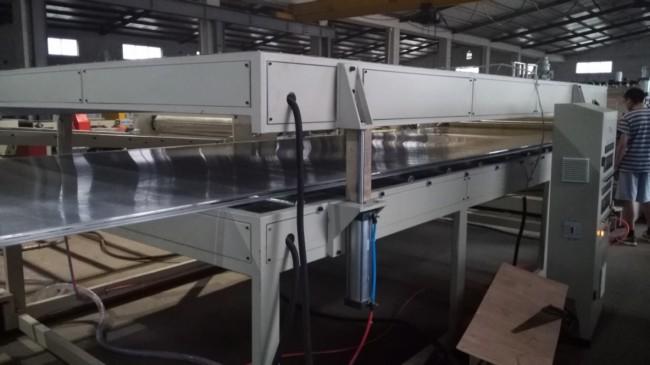

This flexible connection PE PC PP Hollow sheet extrusion line consists of single screw extruder, melt-pump, hydraulic filter exchanging unit, hollow sheet die head, vacuum calibrating table, first haul off machine, oven, corona treating unit, cooling table, second haul off machine, trimming and length-settled cutting units and stacker etc.
PC hollow sheet is widely used in construction sunroof in buildings/halls/shopping center/stadium/public places of entertainment and public facility; Ring shield of bus station/garages/pergolas/corridors;Noise barriers for highways and urban elevated road.
Machine List :
| description | data |
| feeding system | 1set |
| 120/35 single screw extruder(High effective,Using German technology) | 1set |
| 45/30 uv co-extruder | 1set |
| hydrulic screen changer | 1set |
| melt pump(Swiss MAAG brand) | 1set |
| feedblock | 1set |
| t-die head (Mould JC-Times , Best Chinese Brand) | 1set |
| vacuum calibrating table | 1set |
| first stage haul off machine | 1set |
| 5000mm oven | 1set |
| second stage haul off machine | 1set |
| protective film laminating unit | 1set |
| transeverse cutting machine | 1set |
| electrical control system(SCHNEIDER Contactor,ABB Inverter) | 1set |
Main Technical Data:
| PP/PE Hollow Sheet Extrusion Line Technical Data | PC Hollow Sheet Extrusion Line Technical Data | ||
| Extruder model | SJ-120,SJ-100 | Extruder model | SJ-120, SJ-45 |
| Sheet width | 2100mm,1220mm | Sheet width | 2100mm |
| Sheet thickness | 2-8mm,2-8mm | Sheet thickness | 4-40mm |
| Max capacity | 350kg/h,200kg/h | Max capacity | 450kg/h |
| Main motor power | 132kw | Main motor power | 132kw |
