Dog Toys Dental Brush Automatic Injection Moulding Machine CE Certificated
Injection Molding Pet Treat Machine
Introduction
1.Satisfy all your Requirements
- Energy Savings,Eco mode
- Molding Support,Memo of molding conditions,Instruction Manual Stored in System
- Preventative maintenance,Predictive maintenance
- Customized I/O Function
2.Innovated High rigidity clamping unit,Clamping control
- Clamping unit for variety of molds
- Uniformity of the clamping force "Flat press platen"
- Expanded mountable mold thickness and width
- New mold protection function
- Clamping Force Feedback Control (option)
3.Original High Accuracy Injection/ Recovery Control and Flexibility
- JSW's Original High Accuracy Volume Control
- Rich injection unit
- Various Holding Pressure Settings
- Variation of screws
Parameter:
| Item | Name of item | Unit | DM-268 |
| Injection Unit | Screw Diameter | mm | 55 |
| Screw L/D Ratio | Ratio | 20 | |
| Injection Volume (Theoretical) | cm | 601 | |
| Injection Weight (PS) | g | 548 | |
| Injection Pressure | Mpa | 185.1 | |
| Injection Rate into Air | g/s | 223.7/276.1 | |
| Injection Stroke | mm | 256 | |
| Injection Speed | Mm/s | 95/116 | |
| Screw Speed | rpm | 201/246 | |
| Clamping Unit | Clamping Force | KN | 2600 |
| Clamping Stroke | mm | 550 | |
| Space Between Tie-bars | mm*mm | 580 * 580 | |
| Max. Mould Height | mm | 600 | |
| Min. Mould Height | mm | 250 | |
| Ejector Stroke | mm | 160 | |
| Hydraulic Ejection | KN | 68 | |
| Ejector Rob Quantity | pcs | 9 | |
| Others | Max. Pump Pressure | Mpa | 17.5 |
| Pump Motor Power | kw | 22/30 | |
| Heater Power | kw | 15.9 | |
| Hopper Volume | L | 50 | |
| Oil Pump Volume | L | 550 | |
| Machine Weight | t | 8.5 | |
| Mould Positioning Ring Diam | mm | 160 | |
| Sphere Radius | mm | SR10 | |
| Machine Dimension | m *m * m | 5.82 *2 * 2 |
Samples By Our Pet treats molding machine
Our Pet treats molding machine can make pet chews with various shapes and tastes through changing the dies and formulas
We have full formula of foods and will guide you to use different materials to produce variety quality food.
Strong Packing for Pet treats molding machine
Packed by standard wooden case or wrapped by plastic film then shipped by container for Pet treats molding machine .
Machine and sample pictures:
Video:

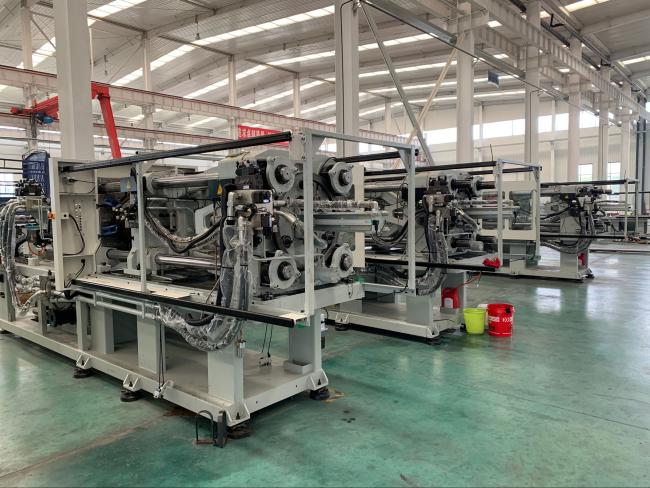

Smart plant:
Working video:
More details and price ,please contact us FREELY
