Single Screw Pet Food Manufacturing Equipment Cold Extrusion Extruding
Single Screw Pet Treat Cold Extrusion Extruding Machine
SR-126 Cold Extrusion Machine is specially used to produce high content meat jerky snacks, and act as rewards for dog and cat.
The shape of the treats can be heart, cyinder, chips, strip etc by easily changing the molds.
Ø Specially used to produce high content (max 100% meat can be used, with water percentage no more than 60%) meat products.
Ø Patented design to produce jerky treats with different shapes and sizes.
Ø Controlled by PLC and touch screen with friendly interface and fault display function.
Ø Two extrusion machines work together can make double color/co-extrusion treats.
The mold can be customized as customer’s requirement. The machine include one mold.
Capacity: 100kg/hr
Hopper volume: 65L
Screw diameter: 126mm
Power: 21kw
Cooling type:Water circulation
Cylinder pressure:0.4-0.5Mpa (no more than 0.6Mpa, and cylinder should be changed every 2-3 months)
Weight: 1200kg
Dimension:2720x900x2000mm
Process line:
Mixing materials - Forming treats - Cutting - Baking or Drying
Technical Parameter:
| Model | DR-126 |
| Capacity | 100-150kg/hr |
| Power | 18kw |
| Dimension | 4300 x 900 x 2m |

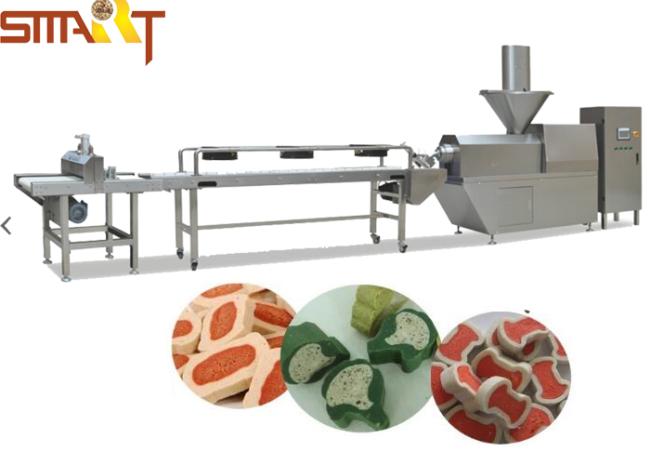

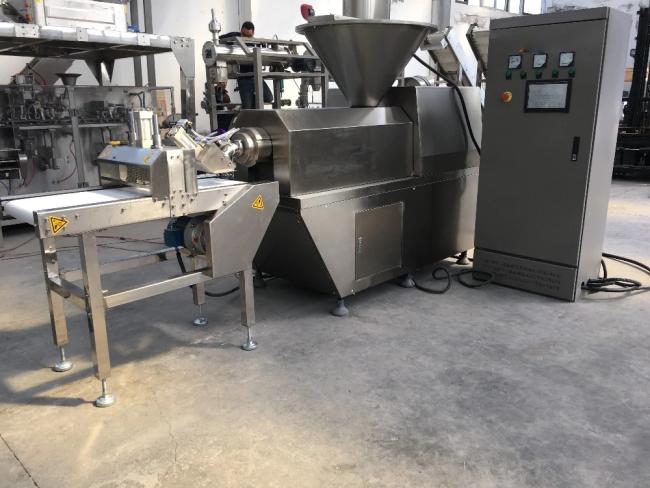

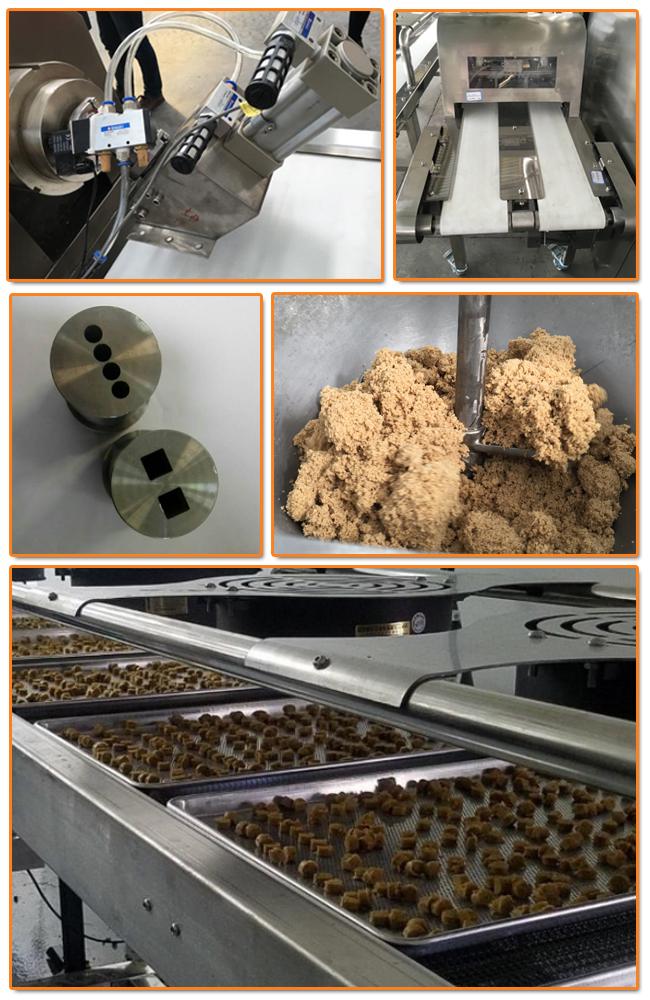

Machine and sample pictures:
Video test:
