WEG 220V 50Hz PLC Peanut Candy Bar Making Machine

Price Negotiable
Price: negotiable
MOQ: 1 set
Delivery Time: 35-45 working days
Brand: Smart
Product Description
Peanut Brittle Molding Cereal Machine
Candy Peanut Candy Bar Making Machine/Peanut Brittle Molding Cereal Machine



Introduction of Cereal Energy Granola Bar Molding Peanut Brittle Making Peanut Candy Machine :



1. Description of Peanut Brittle Molding Cereal Machine :

SR-65 Automatic forming machine(Cereal bar/peanut candy/cereal candy/rice candy)

This line can making peanut candy ,chikki, rice candy ,sesame bar, cereal bar ,nuts bar etc.

Introduction of Cereal Bar Machine

The SR-65 Automatic peanut candy bar making machine is mainly used for the food processing

and molding produced in medium and large food industry,such as:Satsuma,Rice candy, Rice bar,Frozen rice candy,Sesame candy bar, Peanut brittle(peanut candy bar),Sunflower seeds

candy bar,Coarse grains,Cereal bar and other molding and cutting.





2.Feature of puffed cereal rice ball cake making machine:

1,Easy to learn and easy to operate

2,Control by machanical, size adjustment freely;

3,Efficient and durable,

4,Shell material :stainless steel

5,The material of conveyor belt is PVC(Food Grade)





3. Voltage:

Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries.

4. Machines Materials:
Advantages of Cereal Bar Machine
The machine control the speed with the best frequency changer in China, according to different
sizes, controlled by the PLC computer, simple to operate, easy to use, it is the ideal equipment
to cut the block for the modern food industry.
All the machines are made by stainless steel.



Configuration



Motor WEG or Siemens Mixing Tank and Conveying Belt HMWHDPE
PLC & Touch Screen Siemens Mixing Blade, Mold and Hopper Blade PTFE
Electric Parts ABB or Schneider or DELIXI Cover Body Stainless Steel



Parameter for the snack bar molding machine

Model SRC-65
Capacity 200-300kg/hr
Power 4kw
Dimension 8x4x2m
Workers Needed 2-3





Production flow:

1.Suger(Chocolate) Cooking - 2Mixer -3.Molding and Cutting-4.Packaging machine



1. SR-200 Sandwich Pot

  • Volume: 200L
  • Tank diameter: 850mm
  • Tank Height: 650mm
  • Power: 0.75kw
  • Rotary speed: 36rpm
  • Working pressure: 0.09Mpa
  • Heating temperature:
  • Max. 260℃
  • Weight: 260kg
  • Dimension:1100 x 1100 x 900mm

2.SRCT-35 Mixer

  • Power: 3kw
  • Speed: 50rpm
  • Mixing Tank Size:
  • 390 x 380 x 410mm
  • Heating temperature: 0-60℃
  • Weight: 200kg
  • Dimension:750 x 550 x 950mm

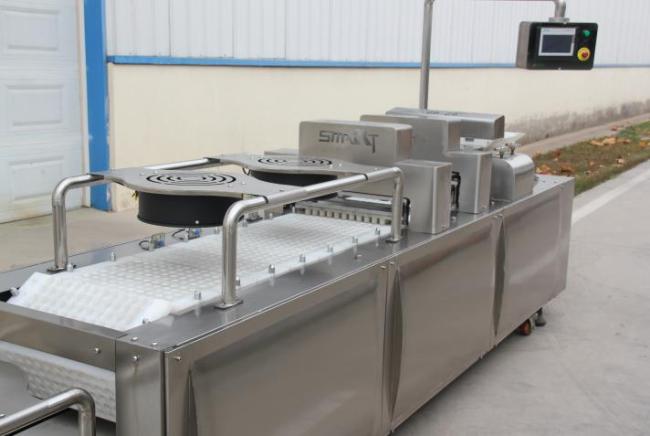

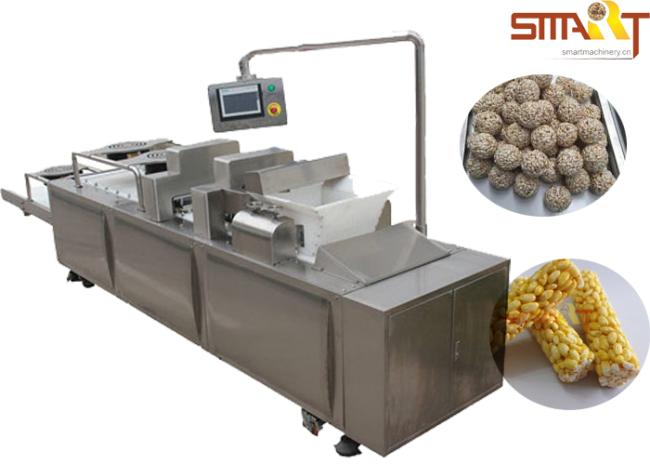

3.SRC-65 Cereal Bar Forming Machine

  • Output: 200-300kg/hr
  • Mixer Tank Size:
  • 390 x 380 x 410mm
  • Material Hopper Size:
  • 450 x 400 x 300mm
  • Mixer Tank Temperature:0-70℃
  • Mold Qty.: 39pcs, includes

- Forming mold x 36pcs

- Pressing mold x 2pcs

- Demolding mold x 1pcs

  • Forming Mold size:509 x 173mm
  • Effective mold size:380 x 140mm
  • Min. distance between mold cavity: 11mm
  • Power: 10.8kw
  • Weight: 1200kg
  • Dimension:5300 x 965 x 1850mm

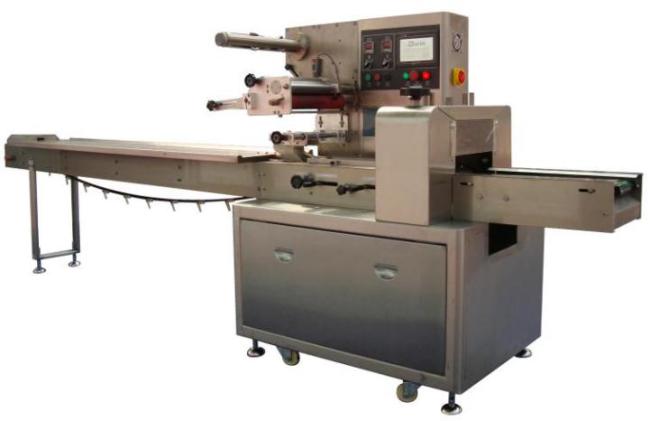

4.LSU-220 Pillow Packing Machine

  • Speed: 40-230bags/min
  • Bag length: 65-190mm
  • Bag width: 30-110mm
  • Film width: Max. 220mm
  • Product height: 5-80mm
  • Film roll diameter:
  • Max. 320mm
  • Power: 3.4kw
  • Weight: 500kg
  • Dimension:3770 x 640 x 1350mm

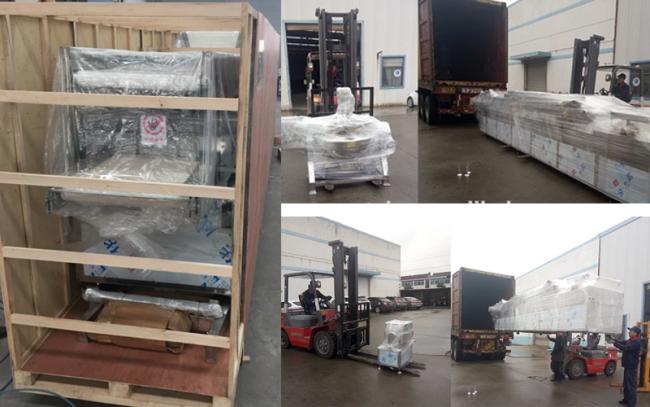

Machine and factory details:





Samples:



FAQ:

1.What’s your payment terms?
Our payment terms is 40% T/T as down payment, 60% by irrevocable L/C at sight or T/T before delivering
2. What’s your Guarantee?
We provide 1 year complete Guarantee and life-time maintenance service
3. How about the installation?
We will dispatch our technicians to your factory to guide you installation and commissioning work and training your operator.



Video:

https://youtu.be/ZV-Kqz3eTcA (Peanut bar making machine)
https://youtu.be/KNMjKvyUJro (ball shape bar making machine)
https://youtu.be/HkXoUX6GPWY (instant noodel ball shape making machine
https://youtu.be/d-e1i3vZ5MU (Ficus carica bar molding machine)
https://youtu.be/vM_DUEHjawk (Ring shape rice bar)
