Dog Snacks Beef Meat Bites Blocky Shape Molding Machine
Dog Snacks Beef Meat Bites Blocky Shape Molding Machine
Simens Controlled Dog Snacks Beef Meat Bites Blocky Shape Molding Machine
Introduction of Dog Snacks Beef Meat Bites Molding Machine:
Our new designed beef Granules/Meat Dices/Codfish Cubes Forming Machine can be used for producing beef granules,meat dices,codfish cubes with different shapes and sizes by changing the molds.
1. Adopting import servo electromagnetic system, which has the characteristics of advanced design, automatic control, stable operation, no impact and quiver
2. Adopting food-level materials to design and fabricate mould and hopper, which is safe and healthy
3. Automatic decimal aligment, automatic error correction and automatic demould of the moulding system, which has a high efficiency on the finished product.
BENEFITS FOR YOU
- Delicious recipe ideas to get you started making Granola Bars
- Quick and easy binder production
- Automatic mixing and dosing
- Flexible product sizes – bar sizes can be varied
- Modern control and recipe management via touch panel
- Variable and production-suited design
Configuration:
- PLC: Simens
- Motor: Simens
- Touch screen: Simens
- Main electronics: Simens or Schneider
- Any parts may contact food are made by good quality stainless steel, food grade PU belt
Features for the meat bites machine:
1. The product can be changed into various shapes;
2. Mechanical design,much precise positioning;
3. Continuous production in high speed;
4. Moulds and hopper are anti-sticky;
5. all the parts in touch of food are stainless steel,all harmless materials with high temperature resistance;
6. the machine can be changed in design according to customer’s requirement.
Flow chart:
Mixing Materials - Material Forming - De-mouding - Baking or Drying
Technical parameter
|
Output |
Installed Capacity |
Actual Capacity |
Voltage / Frequency |
Dimension |
Workers Required |
|
300-400kg/hr |
10kw |
7kw |
380V 50Hz |
11 x 4 x 2m |
3 |
| Model | SRC-65 |
| Capacity | 300-400kg/hr |
| Material Hopper Size | 800 x 400 x 350mm |
| Material Hopper Volume | 90L |
| Mixer Tank Temperature | 0-70℃ |
| Mold Quantity |
75pcs, includes |
| Forming Mold size | 468 x 173mm |
| Effective mold size | 352 x 154mm |
| Power | 7kw |
| Weight | 1400kg |
| Dimension | 6200 x 4700 x 1600mm |

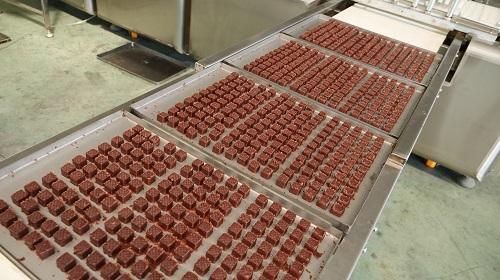

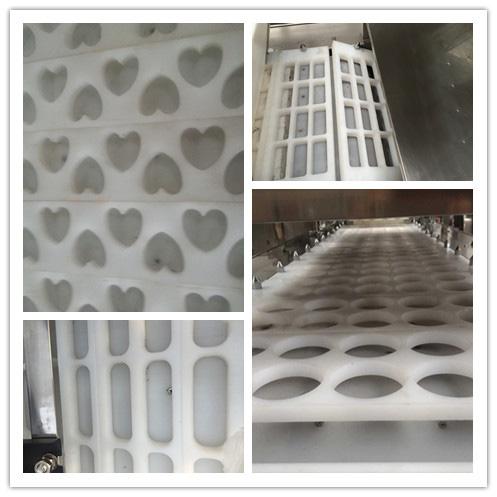

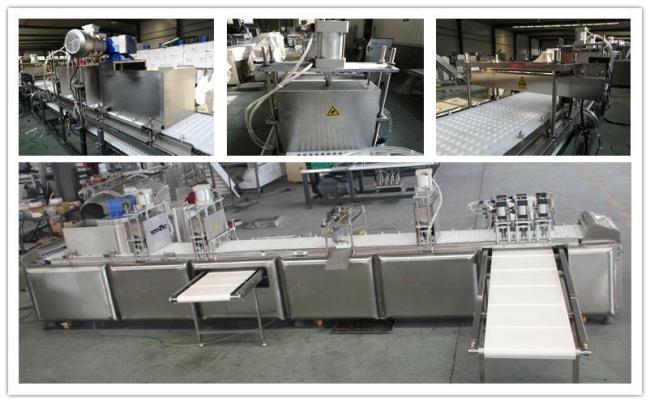

Machine and sample pictures:
Working video:
