2-5Ton Per Hour Pet Food Extruder Pet Food Production Line

Big Capacity 2-5Ton Per Hour Pet Food Extruder Pet Food Production Line

Introduction of  Pet Food Production Line

This pet food extruder for sale is specially designed to produce daily and healthy pet food for all kinds of cats and dogs.

Adopting pre-conditioning system for raw material, it can increase capacity and reduce power consumption.

This line would satisfy different demands for capacity and quality. At the same time, we focus on palatability and scientific nutritional proportion, which make pet food more easily digested and absorbed.

On base of this line, we would like to reach a multi-level and comprehensive cooperation with every client in this trade.

A simple pet food extruder consists of a barrel, helical screws, and a die (tool to cut and shape food).

Some extruders in the United States also contain a fat distributor, where the food mixture enters the barrel of the extruder through a funnel-like structure. Fat is stored in a container where it is pumped through a heat exchanger and fed through a line connected to the barrel of the extruder with a valve to prevent backflow of fat. A metering device connected to this line allows for control of fat amounts deposited in the mixture.

Pressure is applied by helical screws that is driven by a motor.Food mixture is shaped through a die when extrusion process concludes; allowing fly knife to cut extruded feed.

1.The feeder,cutter and main shaft are all controlled with inverter to ensure smooth running.
2. Wear parts are made of special anti-wear alloy with long service life.
3. It can also process floating,sinking and slow sinking aqua feed in small diameter with a high in-shape rate.
4. Equipped with barrel heating system which makes it easy to control the quality of products.
5. Low malfunction rate and easy to adjust and maintain.
6. It is mainly used to produce aqua feed, pet food, textured protein and other special feed.

II.Cat food production line flow chart
Raw material receiving system-Proportion system-Milling system-Mixing system-Extrusion system-Drying system-Coating system-Cooling system-Packing system

III.Equipment list in the pet food machines

mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→packing machine

IV.Pet food extruder Main Features
1).Our processing line adopt international advanced technology, the pellets size are very even.
2).we can adjust the cutter speed and the dies to get the different diameter and the length product
3).The Electric heating device system can control the temperature accurately
4).High temperature and high pressure can kill the salmonellosis andbacterial infections.
5).This line can produce high-protein fish feed.
6).The processing line can produce both floating and sinking fish feed.
7).This line only need three workers

V.Pet Food Raw material
Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc.

Technical Parameter for our  pet food machine

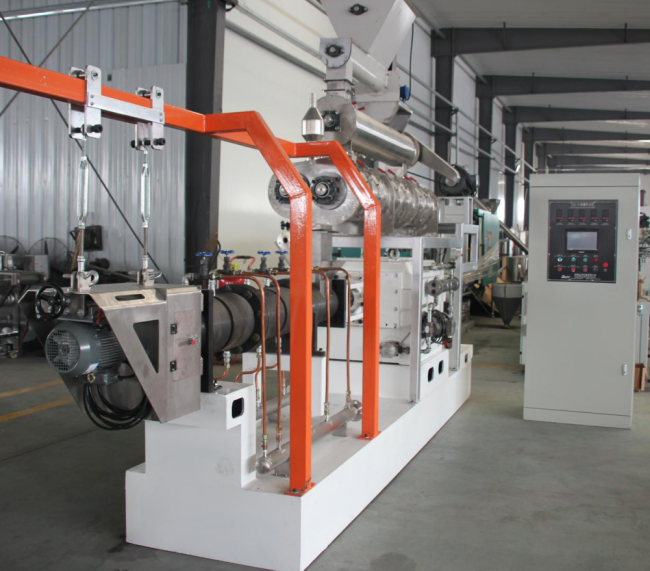

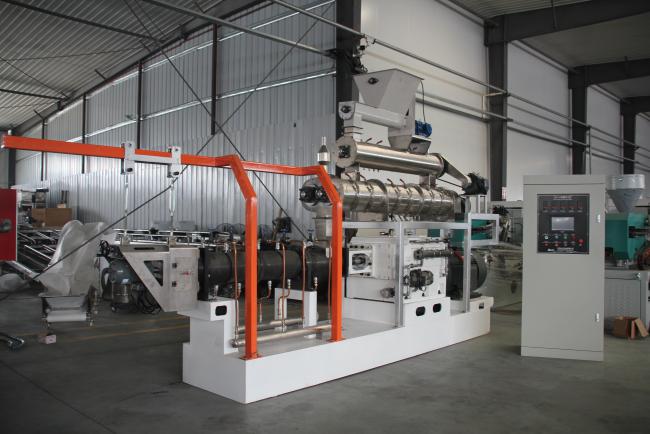

Machine detail pictures:

Machine delivery and installation:

Machine test video:

https://youtu.be/jv167yW_Mac
