PLC Kurkure Extrusion Snacks Food Machinery With 150 Kg/H
Kurkure Extruder Production Line Kurkure Cheetos Machinery with 150 kg/h
Introduction of Kurkure Extruder Production Line Kurkure Cheetos Machinery with 150 kg/h:
1. Brief Introduction:
Kurkure/Cheetos are special extruded snakes with crunchy and great taste.They are made by a special extrusion process. The corn grits are moisturized in the flour mixer with water and fed to the Rotary Head Extruder. Due to the two rotary plates, corn grits are squeezed and twisted to curls shapes. The cutting knifes can cut into required lengths. The Kurkure/Cheetos can be fried in cooking oil or toasted in oven and then cooled before flavoring. Seasoning is sprayed on the surface to achieve different favorable tastes. Due to the delicious flavors and nutrition, it is quite popular with consumers.
2. Capacity: 100-150kg/h
3. Voltage in China:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers'local voltage according to different countries.
4. Machines Materials:
All the machines are made by stainless steel.
5. Technical Parameter:
| Model | Installed power | Real power | Output | Dimension |
| SR-70 | 96KW | 62KW/H | 120-150KG/H | 17000*1100*2500mm |

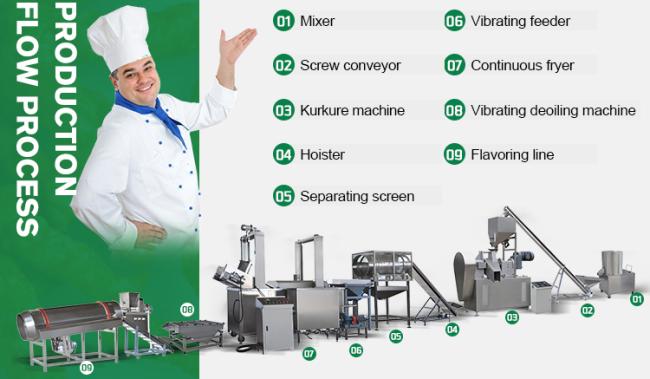

6. Flow chart:
Mixer--- Screw conveyor--- Kurkure machine--- Hoister ---Separating screen--- Vibrating feeder--- Continuous fryer--- Vibrating deoiling machine--- Flavoring line

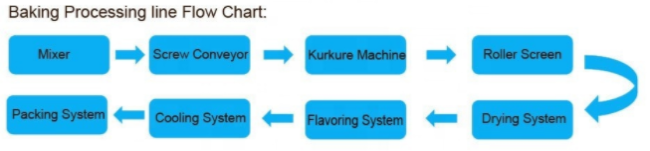

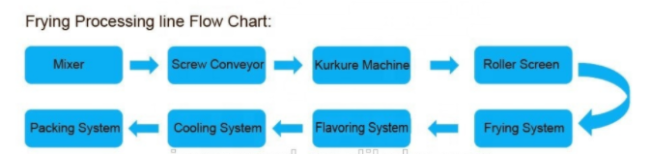

There are two types to making kurkure snacks:
Equipment list in the kurkure food production line:
mixer→screw conveyor→DG76 extruder→hoister→fryer→hoister→flavoring drum→cooling machine→packing machine
Name | Mixer |
Usage | To mix the raw materials evenly, fast speed, no leakage. |
Type | Vertical and horizontal type |
Motor | Motor |
Capacity | 20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. |
Material | stainless steel, carbon steel |
Name | Kurkure extruder machine |
Usage | To extrude the raw materials and make them to the required shape and size of kurkure |
Type | DG76 |
Motor | 15KW |
Capacity | 100-150KG/H |
Material | stainless steel, carbon steel |
Name | Fryer |
Usage | Electric Belt and Upper Cover Lifting Setting .advantage of continuous production |
Type | electrical, steam, gas fired, diesel fired heating type |
Material | stainless steel, carbon steel |
Name | Double drum flavoring machine |
Usage | To mix the oil and flavors on the surface of the fish feed |
Type | single and double flavoring drum |
Motor | 1.5kw |
Capacity | 100kg/h to 10 ton/h |
Material | stainless steel, carbon steel |

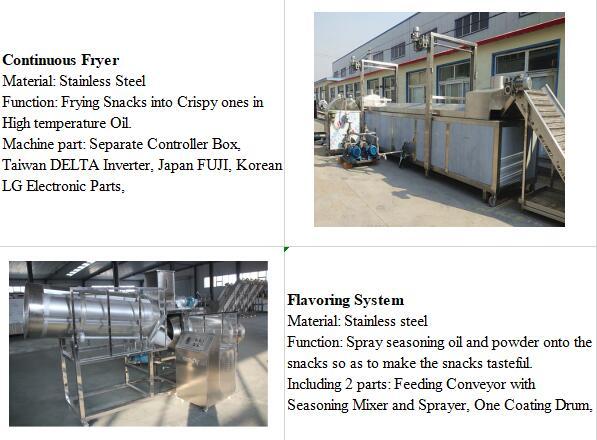

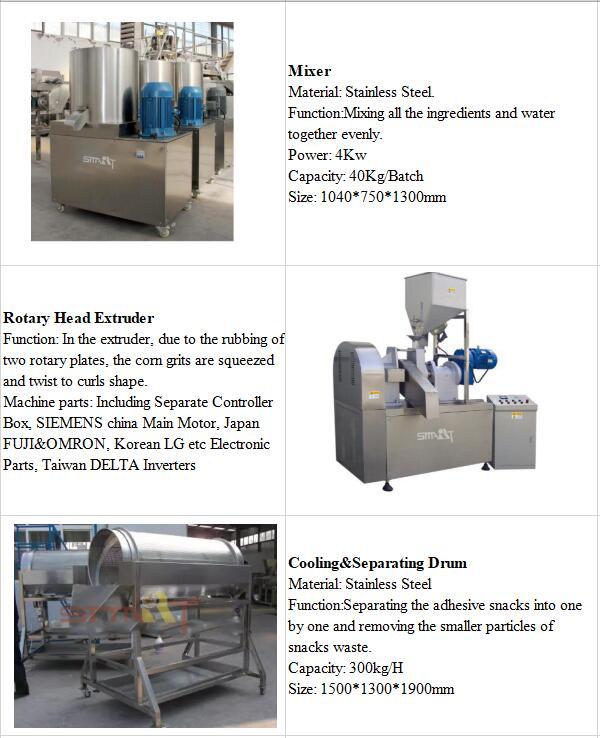

Machine line parts details:
Samples made by Kurkure Cheetos and Nik Naks making machine:
Kurkure Cheetos and Nik Naks making machine adopts corn grits as raw materials meanwhile mixing with water and oil. Kurkure Cheetos and Nik Naks production line can be used to produce cheetos, kurkure, and nik naks.
Packing and Delivery:
1.Outside package, fumigation free wooden case
2. Inner packing, stretch film
Delivery Detail:30 working days after order
Any interest about this production line, please be free to contact us!
