Nik Naks Siemens Extrusion Snacks Food Machinery 150KG/H Capacity
100-150KG/H Capacity Fried Snacks Nik Naks Extruder Product Machinery Line
100-150KG/H Capacity Fried Snacks Nik Naks Extruder Product Machinery
Brief Introduction of Nik naks extruder product machinery
1. Description:
Kurkure is a special extruded snack with extreme crispy taste. The main raw material is corn grits
which is mixed with water evenly by the flour mixer, squeezed and twisted by the extruder to form
the irregular curls shape, and then cut into different length, at last fried or baked and flavored. Such
snacks with rich taste are always the customer's favor.
2. Raw materials: adopts corn grits as ingredients
3. Products: cheetos, kurkure, corn curl and nik naks
4. Machines Materials:
Machine Material: Stainless Steel , thickness:1.2mm
Main Motor: Siemens China brand
Main Electric elements: Siemens or CHNT brand
Inverter: Delta brand
5. Technical Parameter:
| Model | Installed power | Real power | Output | Dimension |
| SR-70 | 96KW | 62KW/H | 120-150KG/H | 17000*1100*2500mm |
6. Flow chart:
Mixer--- Screw conveyor--- Kurkure machine--- Hoister ---Separating screen--- Vibrating feeder--- Continuous fryer--- Vibrating deoiling machine--- Flavoring line
Equipment list in the kurkure food production line:
mixer→screw conveyor→ extruder→hoister→fryer→hoister→flavoring drum→cooling machine→packing machine
 |
|||
| Name | Mixer | ||
| Usage | To mix the raw materials evenly, fast speed, no leakage. | ||
| Type | Vertical and horizontal type | ||
| Motor | Motor | ||
| Capacity | 20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. | ||
| Material | stainless steel, carbon steel | ||
 |
Name | Kurkure extruder machine | |
| Usage | To extrude the raw materials and make them to the required shape and size of kurkure | ||
| Type | SR-70 | ||
| Motor | 15KW | ||
| Capacity | 100-150KG/H | ||
| Material | stainless steel, carbon steel | ||
 |
Name | Fryer | |
| Usage | Electric Belt and Upper Cover Lifting Setting .advantage of continuous production | ||
| Type | electrical, steam, gas fired, diesel fired heating type | ||
| Material | stainless steel, carbon steel | ||
 |
Name | Double drum flavoring machine | |
| Usage | To mix the oil and flavors on the surface of the fish feed | ||
| Type | single and double flavoring drum | ||
| Motor | 1.5kw | ||
| Capacity | 100kg/h to 10 ton/h | ||
| Material | stainless steel, carbon steel | ||

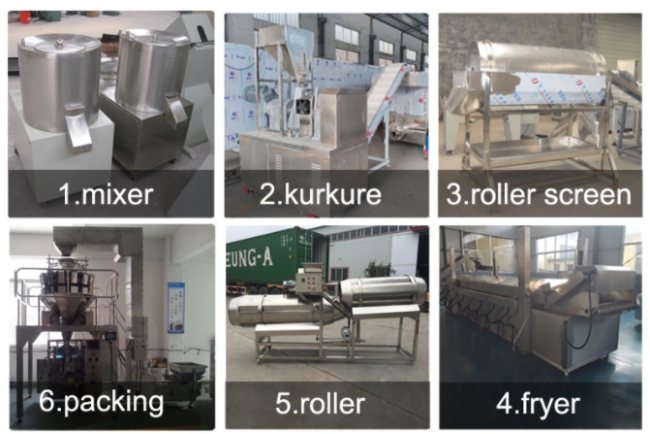

Machine line parts details:
Samples made by Kurkure Cheetos and Nik Naks making machine:
Kurkure Cheetos and Nik Naks making machine adopts corn grits as raw materials meanwhile mixing with water and oil. Kurkure Cheetos and Nik Naks production line can be used to produce cheetos, kurkure, and nik naks.
Packing and Delivery:
1.Outside package, fumigation free wooden case
2. Inner packing, stretch film
Delivery Detail:30 working days after order
Any interest about this production line, please be free to contact us!
