Kurkure Cheetos Corn Curl Nik Naks Snack Food Making Machine 150kg/H
Kurkure Cheetos Corn Curl Nik Naks Snacks Food Extruder Making Machine
Brief Introduction of Kurkure extruder product machinery
Kurkures/ Cheetos/ Nik Naks is a kind of twisted strip snack which takes corn grits as raw material. After mixing with water, the grits is extruded by the Nik Naks machinery into chips. It can be cut in different length according to different customers’ requirements. It can be flavored after frying or baking. The final products are delicious, crispy and nutritional after either way cooked.
Application
Automatic Kurkure Cheetos Corn Curl Nik Naks Snacks Food Extruder Making Machine is can produce various shapes of Kurkure Cheetos Corn Curl Nik Naks
Flow chart:
Mixer--- Screw conveyor--- Kurkure machine--- Hoister ---Separating screen--- Vibrating feeder--- Continuous fryer--- Vibrating deoiling machine--- Flavoring line
There are two types of production line, fried and baked, customer can choose either of this.
Technical Parameter
| model | installed power | power consumption | output | size |
| Baked | 96kw | 62kw | 120-140kg/h | 17000x1100x2500mm |
| Fried | 98kw | 63kw | 180-240kg/h | 17300x1200x2600mm |

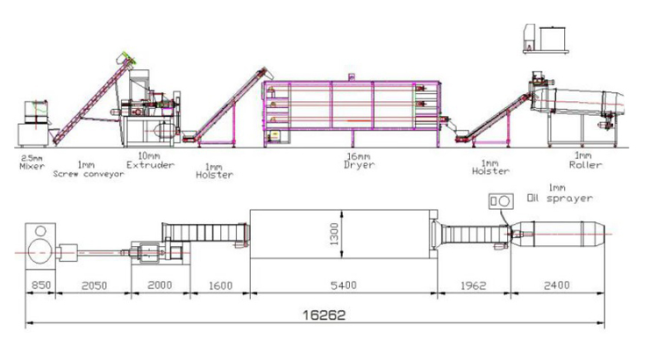

Equipment list in the kurkure food production line:
mixer→screw conveyor→ extruder→hoister→fryer→hoister→flavoring drum→cooling machine→packing machine
 |
|||
| Name | Mixer | ||
| Usage | To mix the raw materials evenly, fast speed, no leakage. | ||
| Type | Vertical and horizontal type | ||
| Motor | Motor | ||
| Capacity | 20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. | ||
| Material | stainless steel, carbon steel | ||
 |
Name | Kurkure extruder machine | |
| Usage | To extrude the raw materials and make them to the required shape and size of kurkure | ||
| Type | SR-70 | ||
| Motor | 15KW | ||
| Capacity | 100-150KG/H | ||
| Material | stainless steel, carbon steel | ||
 |
Name | Fryer | |
| Usage | Electric Belt and Upper Cover Lifting Setting .advantage of continuous production | ||
| Type | electrical, steam, gas fired, diesel fired heating type | ||
| Material | stainless steel, carbon steel | ||
 |
Name | Double drum flavoring machine | |
| Usage | To mix the oil and flavors on the surface of the fish feed | ||
| Type | single and double flavoring drum | ||
| Motor | 1.5kw | ||
| Capacity | 100kg/h to 10 ton/h | ||
| Material | stainless steel, carbon steel | ||

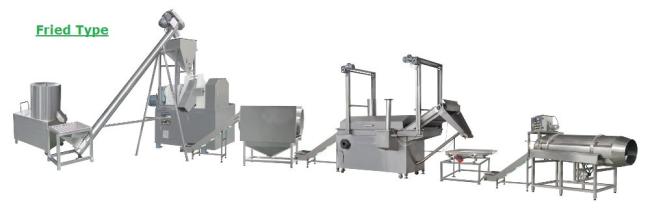

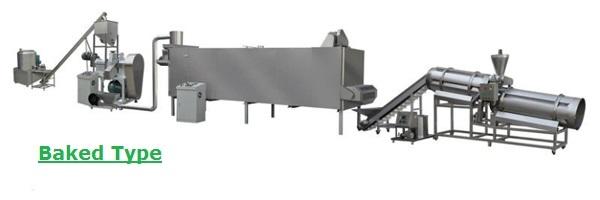

Machine line parts details:
Samples made by Kurkure Cheetos and Nik Naks making machine:
Kurkure Cheetos and Nik Naks making machine adopts corn grits as raw materials meanwhile mixing with water and oil. Kurkure Cheetos and Nik Naks production line can be used to produce cheetos, kurkure, and nik naks.
Packing and Delivery:
Inside: plastic bag.
Outside: wooden case (adopt the wooden case or wooden pellets depended on clients' requirement).
Transportation:
Tansport the Automatic Kurkure Cheetos Corn Curl Nik Naks Snacks Food Extruder Making Machine could by Shipping, train, express, or upon clients’ demands.
