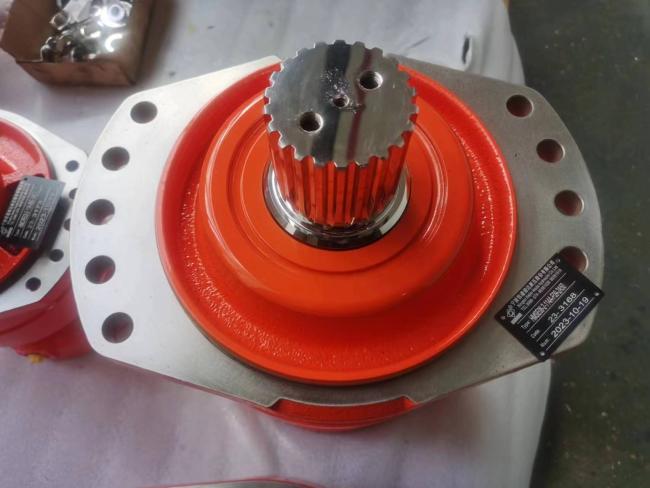

Cast Iron Hydraulic Piston Motor For Products (Ms08/Mse08) CHINA Supplier
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
7 working days
Brand:
Helm Tower
Product Description
Sourcing Hydraulic Piston Motor for Products (Ms08/Mse08) CHINA Supplier
Product Description
1)Radial piston type,low speed,high torque
2)Modular design, High efficiency
3)High pressure and smooth running even at very low speeds.
4)Permissible Radial and Axial load, Motor with multi-disc brake,
5)Controlled by motor displacement,which divided by single-displacement and double-displacement.The single-displacement is complete displacement output,and the double-displacement controlled by valve to carry out the speed by its complete displacement or half displacement output
| Type Displacement |
MS08-8 | MS08-9 | MS08-0 | MS08-1 | MS08-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 627 | 313 | 702 | 351 | 780 | 390 | 857 | 428 | 934 | 467 |
| Max power(kw) | 36 | 24 | 36 | 24 | 36 | 24 | 36 | 24 | 36 | 24 |
| Pressure discrepancy 10MPa Torque (N. m) |
937 | 459 | 1049 | 514 | 1166 | 571 | 1281 | 628 | 1396 | 684 |
| Rated torque(N. m) | 2343 | 2623 | 2914 | 3202 | 3490 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 70 | 70 | 70 | 65 | 65 | |||||
| Speed range(r/min) | 0-170 | 0-170 | 0-170 | 0-155 | 0-140 | |||||
