Rexroth MCR05 Incurve Radial Hydraulic Piston Motor For Coal Mining
Replacement Rexroth MCR05-8-13A-A05-1220 Hydraulic Piston Motor Hot Sale
Rexroth MCR5 hydraulic motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
It is widely applied in Construction Machinery( skid steer loader,breal machine), Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill), etc.
Product Features:
MCR05 Hydraulic Wheel Motor:
1) Incurve radial piston type.
2) Designed in control modules, combine freely.
3) High efficiency, High pressure, low noise.
4) Radial piston, Low speed, High torque.
5) Application:
Mining Machinery: Coal Winning Machine, Road Header, Heavy Duty Handling Car, Coal Mine Drill.
Engineering Machinery: Skid Steer Loader, Break Machine.
| Code | MCR05 | |||
| Displacement Group | 8 | 0 | 1 | 2 |
| Displacement(ml/r) | 380 | 470 | 520 | 565 |
| Theoretical torque at 10 MPa(N.m) | 604 | 747 | 826 | 890 |
| Rated speed(r/min) | 160 | 125 | 125 | 125 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 |
| Rated torque(N.m) | 1240 | 1540 | 1700 | 1850 |
| Max pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 |
| Max torque(N.m) | 1540 | 1900 | 2100 | 2290 |
| Speed range(r/min) | 0-475 | 0-385 | 0-350 | 0-320 |
| Max power(kW) | 29 | |||
| Code | MCRE05 | |||
| 0Displacement Group | 9 | 0 | 1 | 2 |
| Displacement(ml/r) | 620 | 680 | 750 | 820 |
| Theoretical torque at 10MPa(N.m) | 985 | 1080 | 1192 | 1302 |
| Rated speed(r/min) | 125 | 100 | 100 | 100 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 |
| Rated torque(N.m) | 2030 | 2230 | 2460 | 2690 |
| Max pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 |
| Max torque(N.m) | 2510 | 2750 | 3040 | 3320 |
| Speed range(r/min) | 0-290 | 0-265 | 0-240 | 0-220 |
| Max power(kW) | 35 | |||
Application

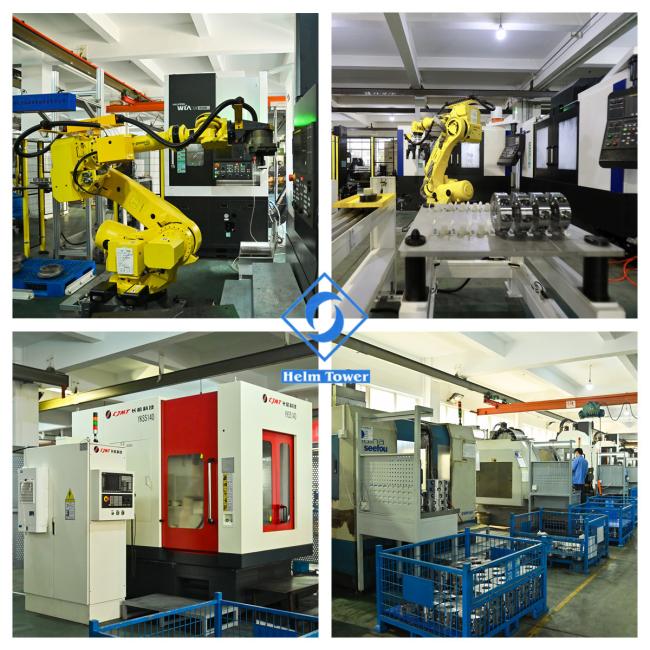

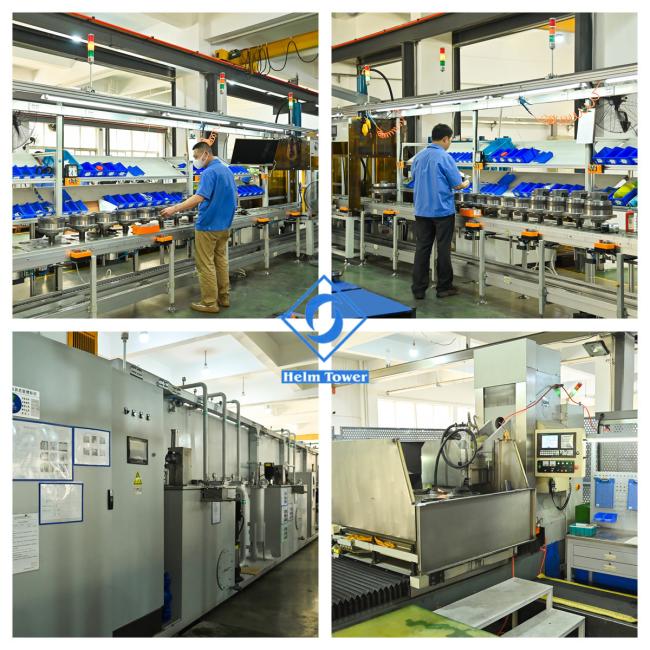

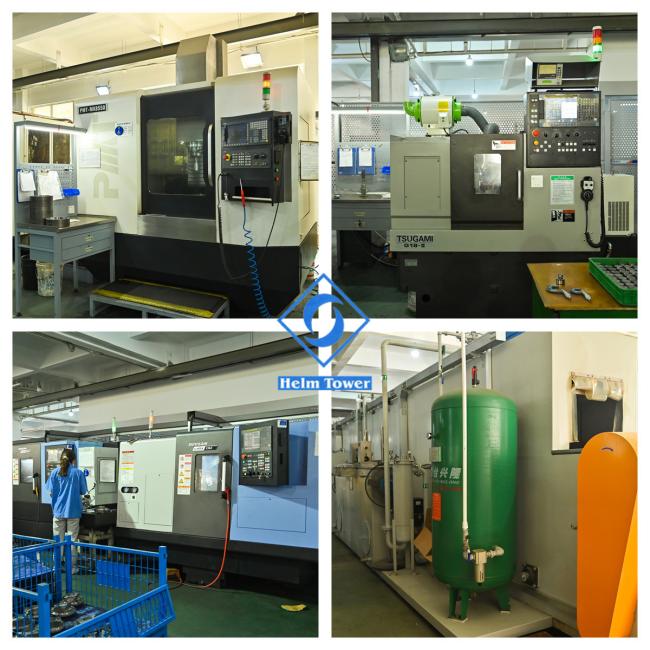

Workshop View

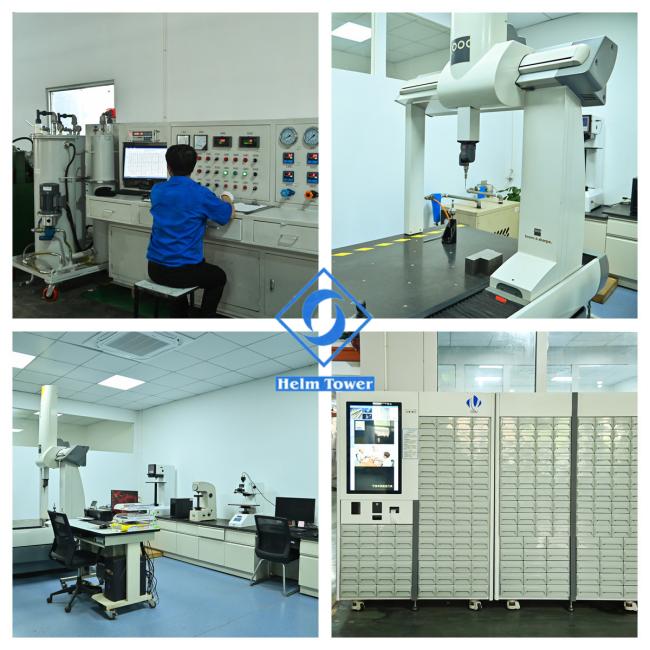

Quality Control:
