1.5t*300mm Auxiliary Equipment Trim And Flashing Driven Un Coiler Rack With Leveling
Trim and flashing driven un-coiler rack with leveling, 2 in 1 de-coiler for roof panel roll forming machine
Application:
Driven de-coiler with straightening or leveling is working with the presser and roll former for profile with high precision and large quantity holes with fast speed for efficient production
Quick Detail:
- Thickness : 0.4mm-0.8mm, 0.8-1.2mm
- Material : GI,PPGI
- Input width : < 300mm
- Material weight : 2MT
- Rotation way: by driven motor
- Coil inner diameter : 470-510mm
Description/Technical Parameter details of the de-coiler

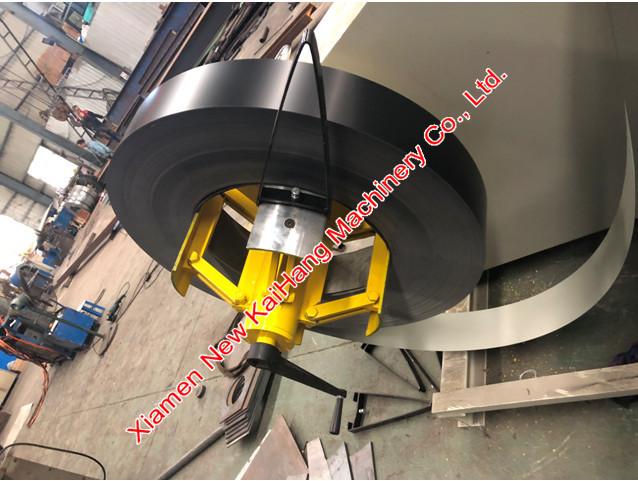

Coil inner hole expand by manual, four palms
Motorized driving coil rotation, auto stop/start control
Load capacity=2Ton
Coil Inner – diameter: 450-530mm
Coil outer-diameter=Max.1200 mm
Coiler Width=Max. 300 mm

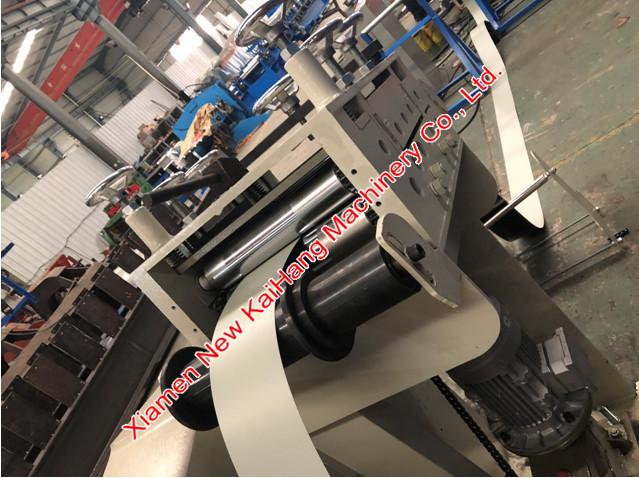

Pre-straighten device share in the same driving motor of un-coiler
7 shafts for straightening the sheet
Solid shaft, made from GCr15, hart chrome-coated
Features:
The de-coiler is touch the roll former speed by limit switch
To start/stop automatically
Suit with 15-18 mpm roll former
Profile Drawing/Layout/Equipment reference pictures:
