3MT Capacity 2 In 1 Un-Coiler Un Winder With Hydraulic Pack 12 Months Warranty
Un-winder with hydraulic pack for upright/ heavy gauge box beam/ presser, 3MT capacity, 2 in 1 un-coiler
Application:
Heave gauge driven de-coiler with straightening or leveling is working with the presser and different roll former such as upright, slot angle, beam, highway guardrail profile, box panel with fast speed for efficient production
Quick Detail:
- Thickness : 2.0-2.5mm
- Material : GI,PPGI, 345Mpa
- Input width : < 400mm
- Material weight : 3MT
- Rotation way: by driven motor
- Coil inner diameter : 470-510mm
Description/Technical Parameter details of the de-coiler
Coil inner hole expand by manual, four palms
Motorized driving coil rotation, auto stop/start control
Load capacity=2Ton
Coil Inner – diameter: 450-530 mm
Coil outer-diameter=Max.1200 mm
Coiler Width=Max. 300 mm
Pre-straighten device share in the same driving motor of un-coiler
7 shafts for straightening the sheet
Solid shaft, made from GCr15, hart chrome-coated
Features:
The de-coiler is touch the roll former speed by limit switch
To start/stop automatically
Suit with 15-18 mpm roll former

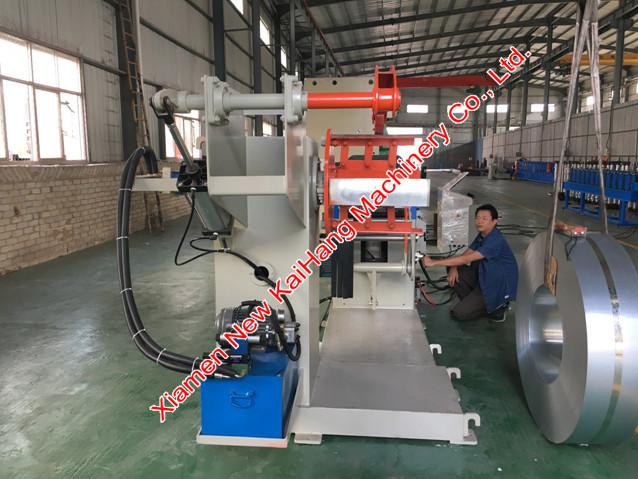

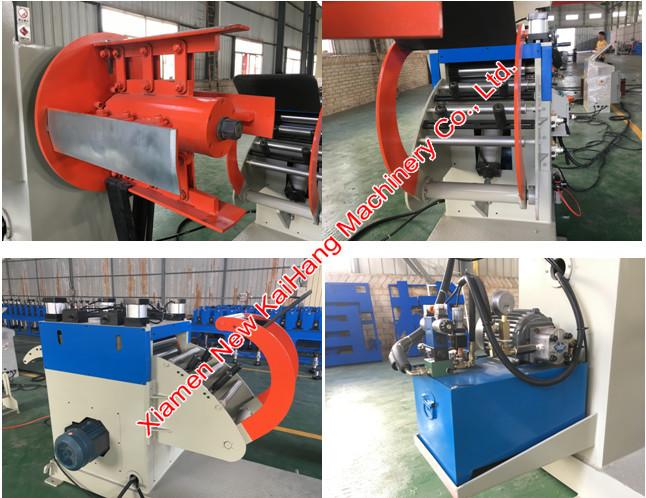

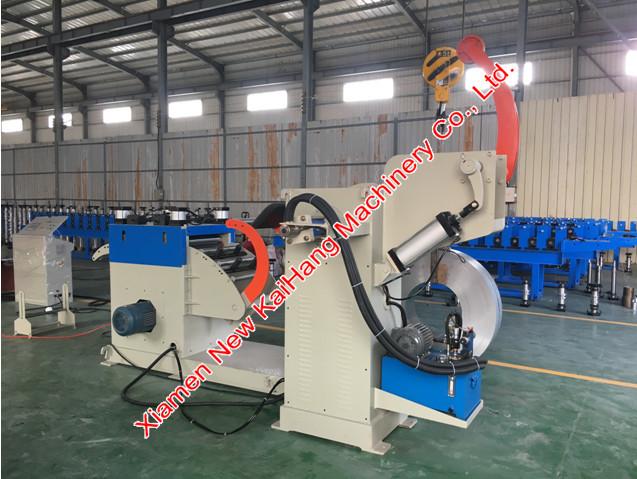

Profile Drawing/Layout/Equipment reference pictures:
