Big capacity hydraulic un-coiler, coil car/ cart for floor decking mc, tapered wedge design

Application:

Based on different capacities, we provide 5ton hydraulic un-coiler, 8ton hydraulic de-coiler, 10ton hydraulic de-coiler, 12ton hydraulic de-coiler and 15 ton hydraulic de-coiler. Usually there is a coil car equipped for hydraulic de-coiler over 5ton capacity.

The 12Tons hydraulic de-coiler with coil car is for bridge decking machine, heavy duty roofing machine etc.,

Quick Detail:

1. Thickness : 0.8mm-1.2mm
2. Material : Pre-painted Coil, 345 Mpa yield strength
3. Input width: 1250mm
4. Material weight: Max. 12MT

Description/Technical Parameter details of the de-coiler

Hydraulic group to expand/loose coil palms

Hydraulic Pump motor: 3KW

Coil ID: 510+/-30mm

Coil OD: Max.1500mm

Taper wedge expand type instead of Link connected expand design

Load Capacity = 12MT

Manual support arm at the end of the main mandrel for extra two tons capacity

Coil Width Max. 1250mm

Driving motor with gear box to rotate the coil, 5.5KW

Delta brand inverter, Taiwan famous brand

be suitable for the roll former with max. roll forming speed 25mpm

Pneumatic cylinder for top arm to press the coils when the machine starts/stops the rotation

Hydraulic motor to drive the coil car

Up/down stroke of coil car: Max. 450mm

Forward/backward stroke of coil car: Max. 2000mm

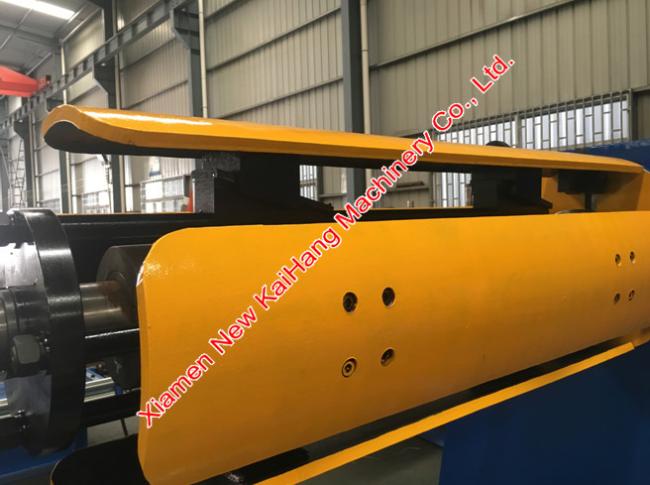

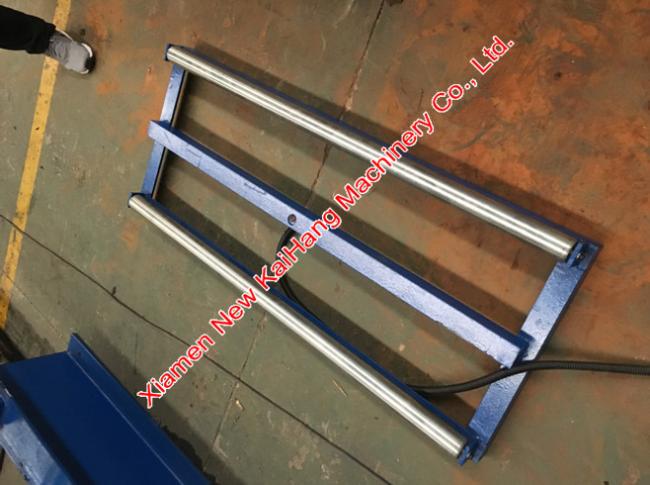

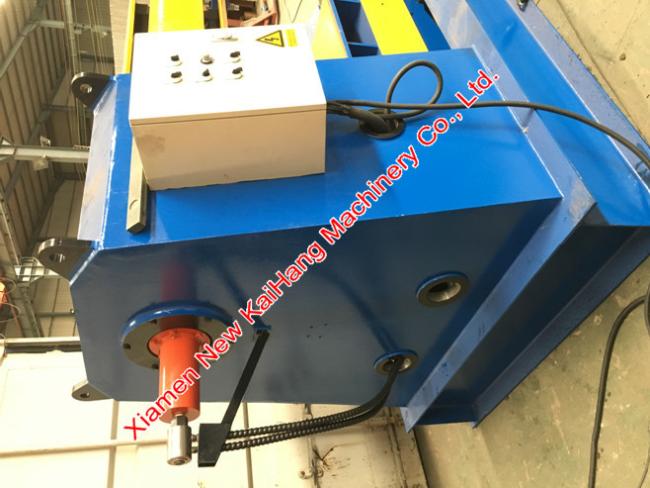

Profile Drawing/Layout/Equipment reference pictures:
