20mm 2.5V 2phase external drive Lead screw Hybrid Linear Stepper Motor for medical equipment
20mm 2.5V 2phase external drive Lead screw Hybrid Linear Stepper Motor for medical equipment
Nema 8 (20mm) hybrid stepper motor, bipolar, 4-lead, low noise, long life, high performance, CE and RoHS certified.

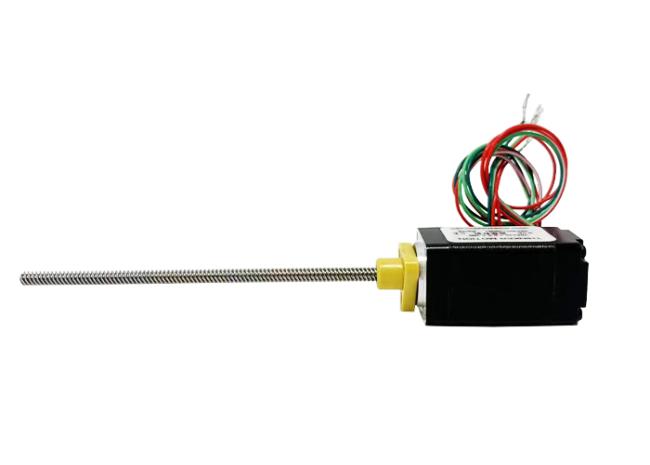

VSM20HS30-C2-0254-100-01 Standard externally driven motors External view:
Descriptions:
|
Product Name |
20mm Externally driven hybrid stepper motors |
|
Model |
VSM20HS30-C2-0254-100-01 |
|
Type |
hybrid stepper motors |
|
Step Angle |
1.8° |
|
Voltage (V) |
2.5 / 6.3 |
|
Current (A) |
0.5 |
|
Resistance (Ohms) |
5.1 / 12.5 |
|
Inductance (mH) |
1.5 / 4.5 |
| Lead Wires | 4 |
|
Holding Torque (N.m) |
0.02 / 0.04 |
|
Motor Length (mm) |
30 / 42 |
| Ambient Temperature | -20℃ ~ +50℃ |
| Temperature Rise | 80K Max. |
| Dielectric Strength | 1mA Max. @ 500V, 1KHz, 1Sec. |
| Insulation Resistance | 100MΩ Min. @500Vdc |
Certifications:
Electrical Parameters:
| Motor Size |
Voltage/ Phase (V) |
Current/ Phase (A) |
Resistance/ Phase (Ω) |
Inductance/ Phase (mH) |
Number of Lead Wires |
Rotor Inertia (g.cm2) |
Holding Torque (N.m) |
Motor Length L (mm) |
| 20 | 2.5 | 0.5 | 5.1 | 1.5 | 4 | 2 | 0.02 | 30 |
| 20 | 6.3 | 0.5 | 12.5 | 4.5 | 4 | 3 | 0.04 | 42 |
General technical parameters:
| Radial clearance | 0.02mm Max (450g load) | Insulation resistance | 100MΩ @500VDC |
| Axial clearance | 0.08mm Max (450g load) | Dielectric strength | 500VAC, 1mA, 1s@1KHZ |
| Max radial load | 15N (20mm from flange surface) | Insulation class | Class B (80K) |
| Max axial load | 5N | Ambient temperature | -20℃ ~ +50℃ |
Screw specifications:
| Lead screw diameter(mm) | Lead(mm) | Step(mm) | Power off self-locking force(N) |
| 3.5 | 0.6096 | 0.003048 | 80 |
| 3.5 | 1 | 0.005 | 40 |
| 3.5 | 2 | 0.01 | 10 |
| 3.5 | 4 | 0.02 | 1 |
| 3.5 | 8 | 0.04 | 0 |

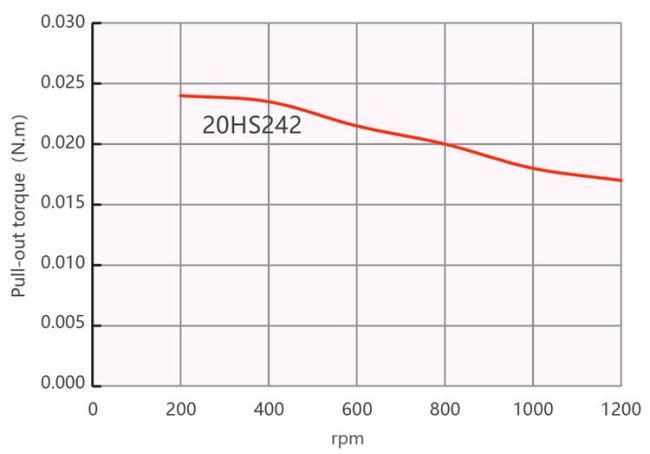

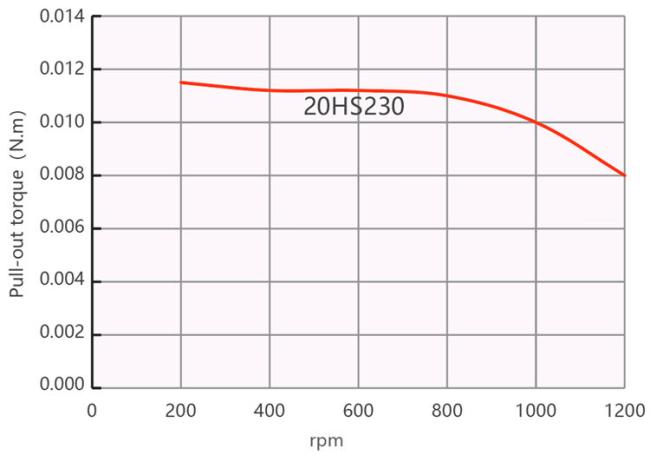

Torque-frequency curve:
Test condition:
Chopper drive, half micro-stepping, drive voltage 24V
Areas of application:
Medical Devices: 20mm externally driven hybrid stepper motors are widely used in the field of medical devices, such as medical syringes, infusion pumps, respiratory machines and so on. Its high precision and low noise characteristics can ensure the safety and stability of medical equipment.
Laboratory Instruments: 20mm out-drive hybrid stepper motors are also commonly used in laboratory instruments, such as automated analyzers, liquid chromatographs, gas chromatographs and so on. Its high precision and controllability can ensure the accuracy and stability of experimental results.
Visual Optical Instruments: In the field of visual optical instruments, 20mm out-drive hybrid stepper motors are commonly used in autofocus lenses, video cameras, telescopes and other equipment to achieve high-precision focusing and tracking functions.
Semiconductor: 20mm out-drive hybrid stepper motors are also widely used in semiconductor equipment, such as semiconductor manufacturing equipment, wafer cutter, semiconductor packaging equipment and so on. Their high precision and controllability can ensure the accuracy and stability of the semiconductor manufacturing process.
Communication: In the field of communication, 20mm externally driven hybrid stepper motors are commonly used in communication equipment, such as fiber optic communication equipment, satellite communication equipment. Its high precision and low noise characteristics can ensure the transmission quality and stability of communication equipment.
New energy: In the field of new energy, 20mm out-drive hybrid stepping motors are commonly used in solar photovoltaic equipment, such as solar trackers, solar collectors, etc. Its high precision and control can ensure the transmission quality and stability of communication equipment. Its high precision and controllability can ensure the efficiency and stability of solar equipment.
Motor Selection Requirements:
►Movement/mounting direction
►Load Requirements
►Stroke Requirements
►End machining requirements
►Precision Requirements
►Encoder Feedback Requirements
►Manual Adjustment Requirements
►Environmental Requirements

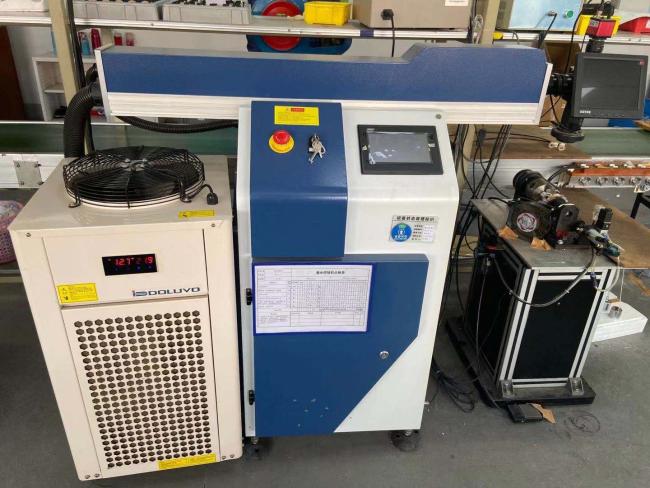

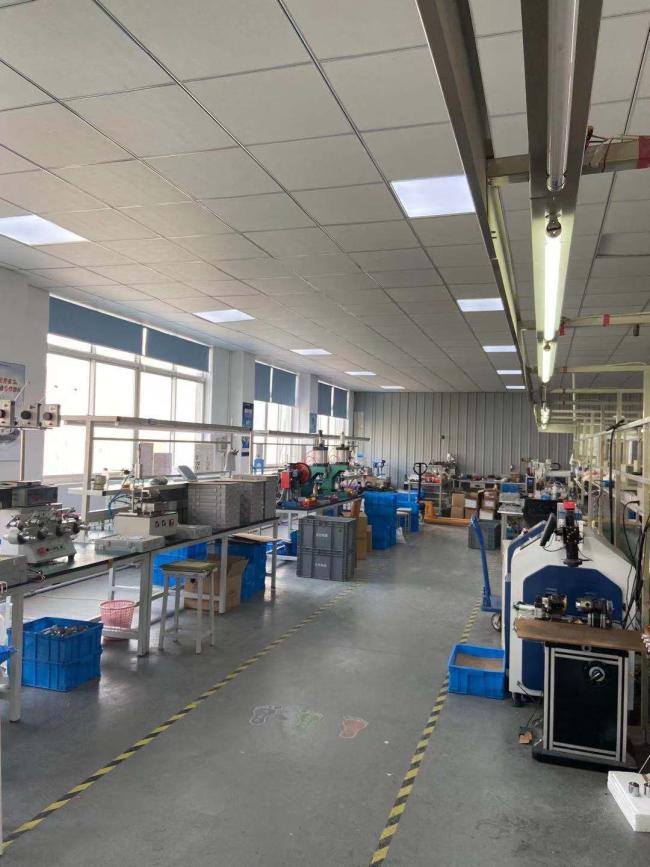

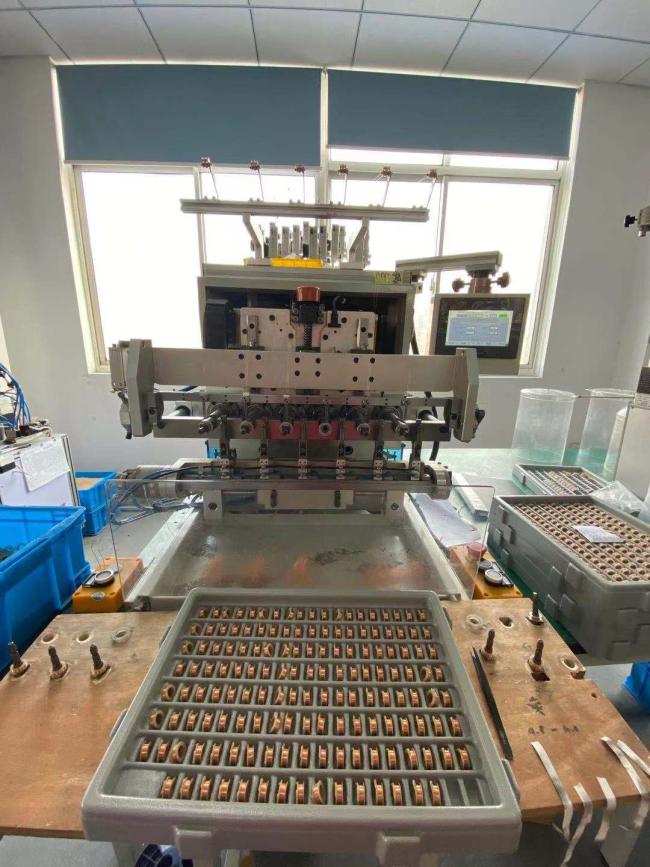

Production workshop:
