Nema 14 (35mm) hybrid stepper motor, bipolar, 4-lead, ACME lead screw,1.8° Step Angle,high performance.
Nema 14 (35mm) hybrid stepper motor, bipolar, 4-lead, ACME lead screw,1.8° Step Angle,high performance.
This 35mm hybrid stepper motor is available in three types: externally driven, through-axis, and through-fixed-axis. You can choose according to your specific needs.

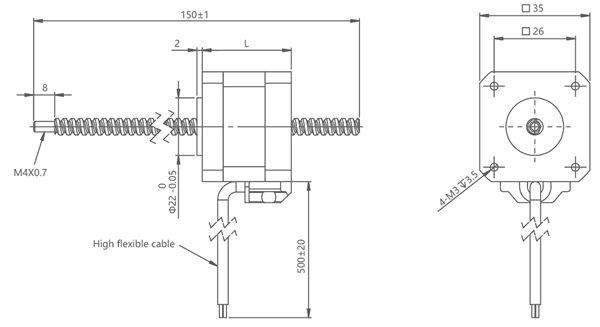

VSM35HSM standard external motor outline drawing:
Notes:
Lead screw length can be customized
Customized machining is viable at the end of lead screw
Descriptions:
|
Product Name |
35mm hybrid stepper motors |
|
Model |
VSM35HSM |
|
Type |
hybrid stepper motors |
|
Step Angle |
1.8° |
|
Voltage (V) |
1.4/ 2.9 |
|
Current (A) |
1.5 |
|
Resistance (Ohms) |
0.95 / 1.9 |
|
Inductance (mH) |
1.5 /2.3 |
| Lead Wires | 4 |
|
Motor Length (mm) |
35/45 |
| Ambient Temperature | -20℃ ~ +50℃ |
| Temperature Rise | 80K Max. |
| Dielectric Strength | 1mA Max. @ 500V, 1KHz, 1Sec. |
| Insulation Resistance | 100MΩ Min. @500Vdc |
Certifications:
Electrical Parameters:
| Motor Size |
Voltage /Phase (V) |
Current /Phase (A) |
Resistance /Phase (Ω) |
Inductance /Phase (mH) |
Number of Lead Wires |
Rotor Inertia (g.cm2) |
Motor Weight (g) |
Motor Length L (mm) |
| 35 | 1.4 | 1.5 | 0.95 | 1.4 | 4 | 20 | 190 | 34 |
| 35 | 2.9 | 1.5 | 1.9 | 3.2 | 4 | 30 | 230 | 47 |
Lead screw specifications and performance parameters:
|
Diameter (mm) |
Lead (mm) |
Step (mm) |
Power off self-locking force (N) |
| 6.35 | 1.27 | 0.00635 | 150 |
| 6.35 | 3.175 | 0.015875 | 40 |
| 6.35 | 6.35 | 0.03175 | 15 |
| 6.35 | 12.7 | 0.0635 | 3 |
| 6.35 | 25.4 | 0.127 | 0 |
Note: For more lead screw specifications, please contact us.

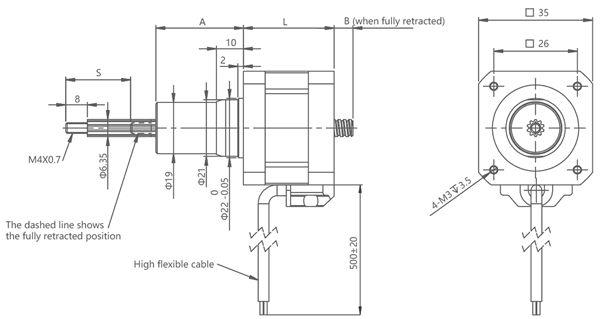

35mm hybrid stepper motors standard captive motor outline drawing:
Notes:
Customized machining is viable at the end of lead screw
|
Stroke S (mm) |
Dimension A (mm) |
Dimension B (mm) | |
| L = 34 | L = 47 | ||
| 12.7 | 20.6 | 8.4 | 0 |
| 19.1 | 27 | 14.8 | 0.8 |
| 25.4 | 33.3 | 21.1 | 7.1 |
| 31.8 | 39.7 | 27.5 | 13.5 |
| 38.1 | 46 | 33.8 | 19.8 |
| 50.8 | 58.7 | 46.5 | 32.5 |
| 63.5 | 71.4 | 59.2 | 45.2 |

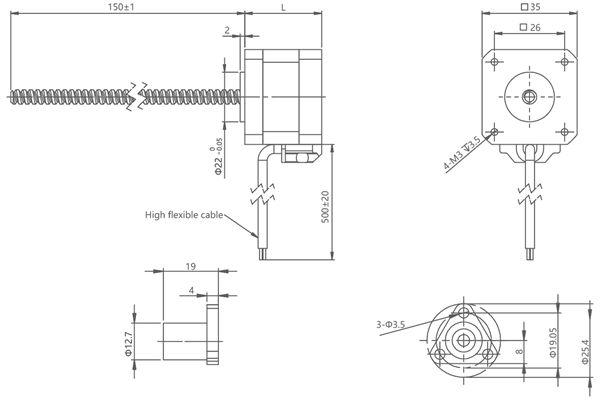

35mm Hybrid Stepper Motor Standard Through-Fixed Motor Outline Drawing:
Notes:
Lead screw length can be customized
Customized machining is viable at the end of lead screw
Speed and thrust curve:

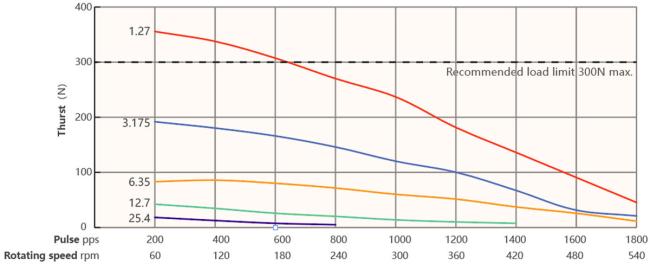

35 series 34mm motor length bipolar Chopper drive
100% current pulse frequency and thrust curve (Φ6.35mm lead screw)

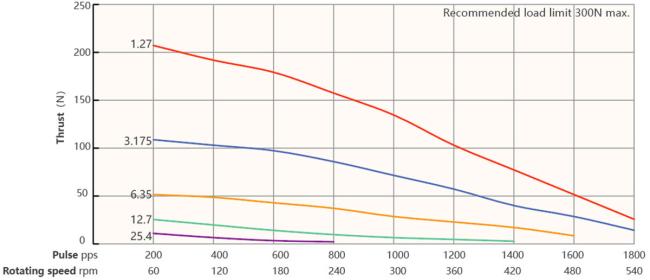

35 series 47mm motor length bipolar Chopper drive
100% current pulse frequency and thrust curve (Φ6.35mm lead screw)
| Lead (mm) | Linear velocity (mm /s) | ||||||||
| 1.27 | 1.27 | 2.54 | 3.81 | 5.08 | 6.35 | 7.62 | 8.89 | 10.16 | 11.43 |
| 3.175 | 3.175 | 6.35 | 9.525 | 12.7 | 15.875 | 19.05 | 22.225 | 25.4 | 28.575 |
| 6.35 | 6.35 | 12.7 | 19.05 | 25.4 | 31.75 | 38.1 | 44.45 | 50.8 | 57.15 |
| 12.7 | 12.7 | 25.4 | 38.1 | 50.8 | 63.5 | 76.2 | 88.9 | 101.6 | 114.3 |
| 25.4 | 25.4 | 50.8 | 76.2 | 101.6 | 127 | 152.4 | 177.8 | 203.2 | 228.6 |
Test condition:
Chopper drive, no ramping, half micro-stepping, drive voltage 40V
Areas of application:
Industrial Automation
Robotics
Textile Machinery
Packaging Machinery
Laboratory Automation
Consumer Electronics
Advantage:
High Accuracy
Good low-speed performance
Simple Drive Control
Reliability and Durability
Fast Response and Dynamic Performance
Wide range of application areas
Motor Selection Requirements:
►Movement/mounting direction
►Load Requirements
►Stroke Requirements
►End machining requirements
►Precision Requirements
►Encoder Feedback Requirements
►Manual Adjustment Requirements
►Environmental Requirements

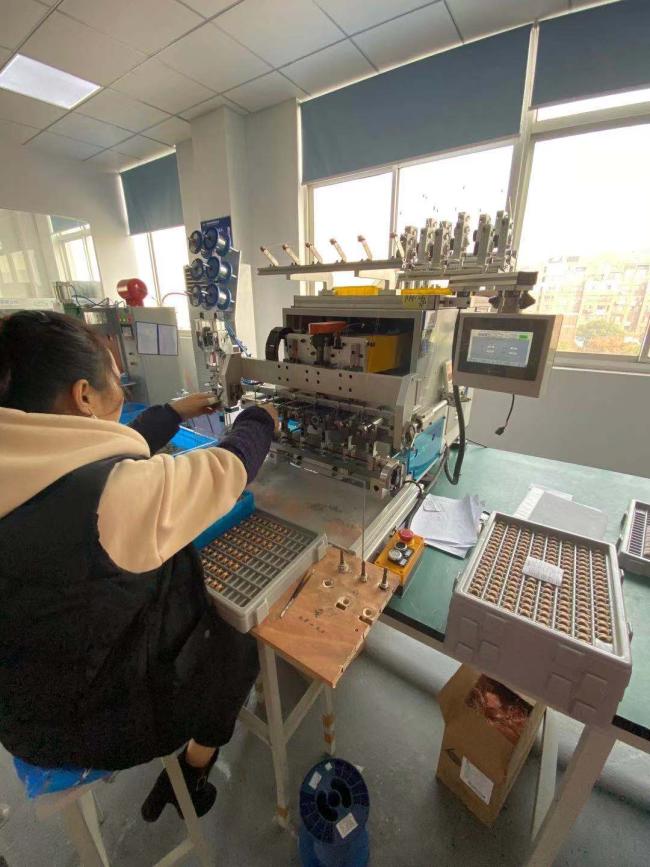

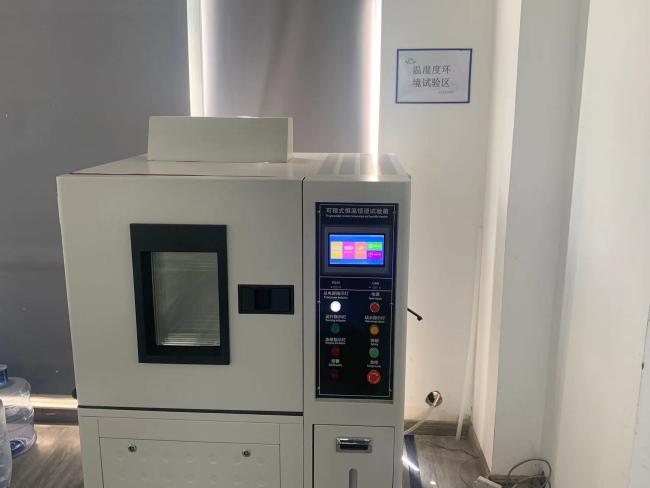

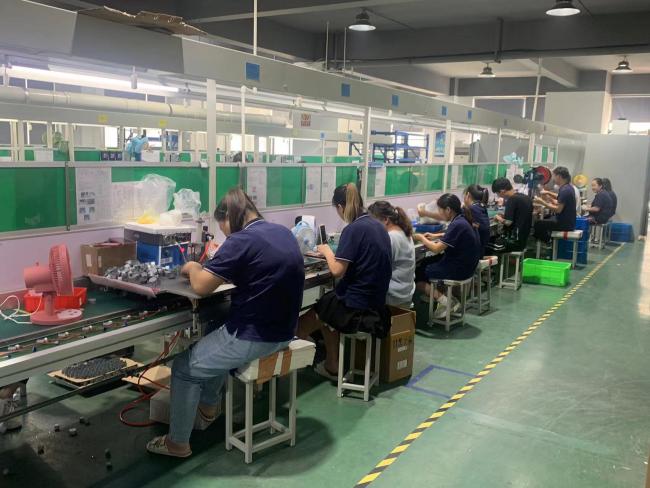

Production workshop:
