High performance 20mm (Nema 8) hybrid stepper motor, bipolar, 4-lead, ACME screw stroke selectable
High performance 20mm (Nema 8) hybrid stepper motor, bipolar, 4-lead, ACME screw stroke selectable
Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

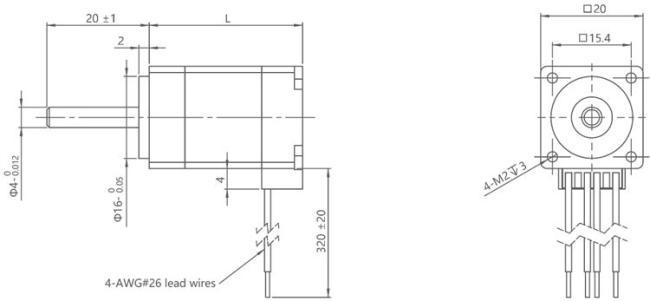

Mechanical Dimension:MM
Typical Applications
- 3D Printer
- Monitoring Equipment
- Medical Machinery
- Vending Machine
- Engineering Vehicle
- CNC Engraving Machine
- ATM Machine
Electrical Characteristics
|
Product Nema |
20mm Extermally driven hybrid stepper motors |
|
Model |
VSM20HSM |
|
Type |
hybrid stepper motor |
|
Rated voltage |
2.5 V /6.3V |
|
No. of phases |
2 phases |
|
Step Angle |
1.8°/STEP |
|
Lead Wires |
4 |
|
Resistance |
5.1Ω/12.5Ω |
|
Current |
0.5A |
The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.
Product Detail Presentation
