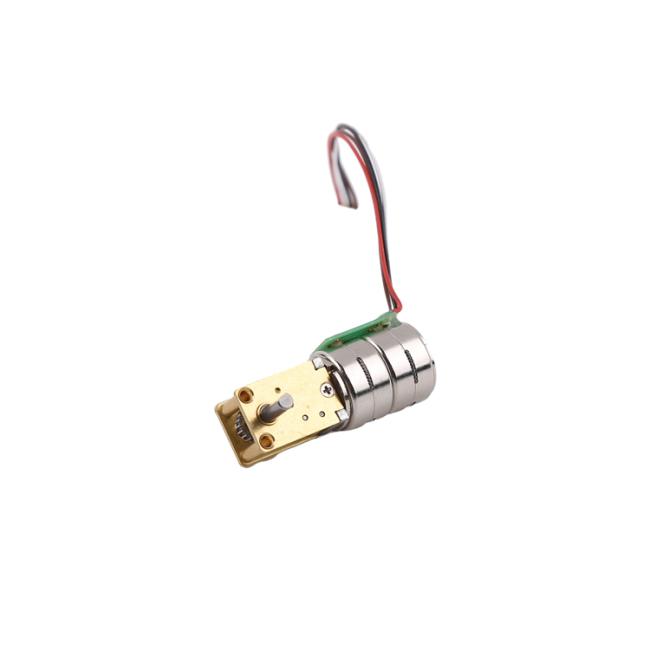

micro15mm diameter high torque electric worm gear stepper reduction electric stepper motor 5V compact motor
15mm diameter worm gearbox stepper motor 5V right angle gearbox micro motor
This worm gear gearbox motor is composed of a 15mm diameter micro stepper motor and a 10 * 12 * 18 precision metal gearbox, and the reduction ratio can be customized according to customer needs.
Gear reduction ratio: 1:21 1:42 1:118 1:236 1:302 1:399 1:603 1:515 1:798 1:1030, and the efficiency of the reduction box is 20%~30%. Please pay attention to efficiency when choosing this reduction motor
Customers can match the speed ratio according to different torque and speed requirements, while
Given an appropriate driving frequency, a stepper motor can achieve the goal of determining speed and torque.
This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output structure, such as the circular axis, D axis, and the wire rod!

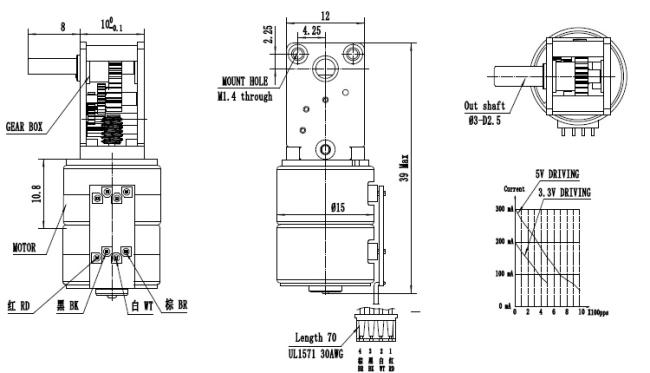

Mechanical Dimension:MM
Specifications
| Product Name | 15mm micro stepper motor | |||
| Model | SM15(double)-1812-118-8D | |||
| Rated Voltage | 5 V | |||
| Current Per Phase | 130mA /phase | |||
| Coil Resistance | 39Ω±10% | |||
| No. Of phase | 2 Phases | |||
| Step Angle | 18 degree | |||
| Excitation Method | 2 Phase Excitation | |||
| Drive Mode | Bipolar Drive | |||
| MAX. STARTING FREQUENCY | 900 PPS min. (AT 5.0 V DC) | |||
| MAX. SLEWING FREQUENCY | 1200 PPS min. (AT 5.0 V DC) | |||

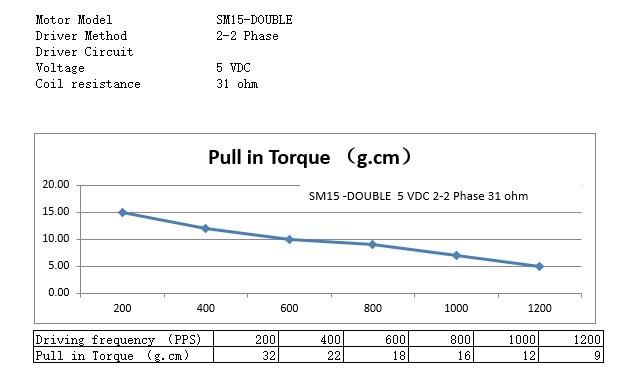

| PULL IN TORQUE | 3.5 gf-cm min. (AT 500 PPS , 5.0V DC) | |||
| PULL OUT TORQUE | 4.2 gf-cm min. (AT 500 PPS , 5.0V DC) | |||
| Insulation Class | Class E for Coils | |||
| Insulation Strength | 100V AC FOR ONE SECOND | |||
| Insulation Resistance | 50MΩ DC 500 V | |||
| Operating Temperature Range | -0~+55 ℃ | |||
| Weight | 18g | |||
| OEM & ODM SERVICE | AVAILABLE | |||
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Product Detail Presentation
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.
