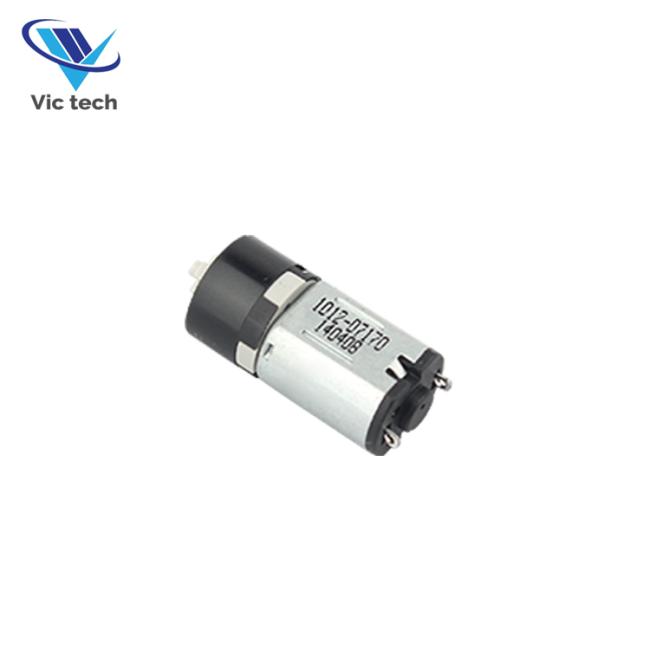

N10 Small DC Gear Motor Precious Metal Reversing Planetary Gear Set Micro Gear Motor

Price Negotiable
Price: $1.50-3
MOQ: 5
Delivery Time: Negotiable
Brand: Vic-tech
Product Description

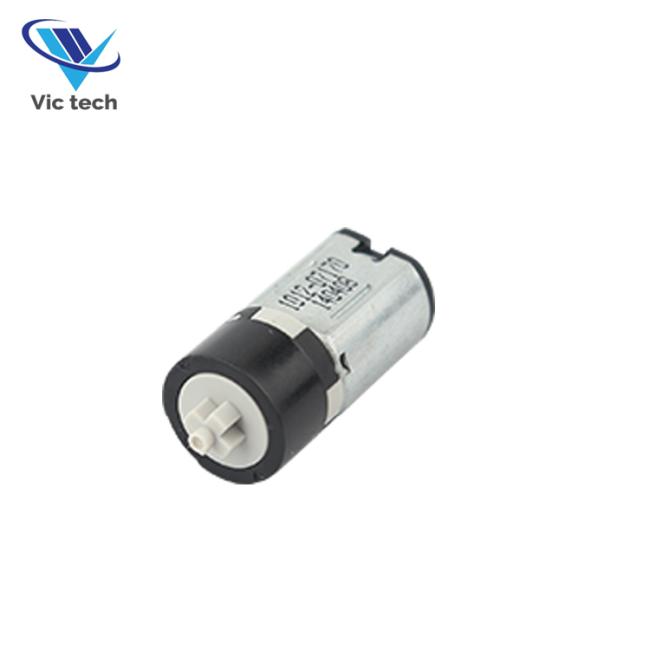

 precious metal reversing planetary gear set gear motor



VSM M10 precious metal reversing planetary gear set gear motor, suitable for video products, high-end toys, personal health products, security equipment, etc. Customizable parameters: wire length, shaft length, performance, gear box.

Our gearboxes are processed and assembled by imported machine tools to ensure that the accuracy of each gear is higher than other manufacturers in the same industry, so the gearbox is stable in transmission, low in noise, high in efficiency, reliable in structure, long in life and quality.
stability.

Our team has more than 10 years of experience in micro-motor design, development and production, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!



PRODUCT NAME Brush dc motor
MODEL VSM M20
VOLTAGE 2.5V
TERMINAL RESISTANCE 3.7Ω
NO-LOAD SPEED 110rpm
NO-LOAD CURRENT 100mA
MAX TORQUE 37.2mNM
LOAD TORQUE 9.8mNM
LOAD SPEED 80rpm
LOAD CURRENT 230mA
WEIGHT 3.8g
GEAR RATIO 1:171
OPERATING ENVIRONMENT -10~+60℃;15~90%RH

Precious metal commutation

Changzhou Vic-Tech Motor Techology Ltd. is a professional  manufacturers and scientific research institution, dedicated in brushless motor development, motor application overall solutions, and motor processing and manufacturing. Our company is located in ‘City of Chinese Micro Motor’ Changzhou, Jiangsu Province. With beautiful scenery and convenient traffic, only 1 km away from expressway, 2 km away from railway station, 15 km away from airport. Changzhou is between two cosmopolises, Shanghai and Nanjing, only 100km away from both cities. Convenient logistics and timely information provide conditions for our high efficient and satisfying service. Our company has experience of researching and developing motor over sereval decades, and we have our own developing team with experienced professional engineers and electric experts. With capacity to design new products, provide ralted solutions based on customers’ specific requirements (including mechanical structure, drive control, motor parameters etc.) At the same time, we have 4 manufacturer in Shenzhen, Changzhou and Dongguan to produce stepper motors, permanent-magnet motors, micro motors, and DC motors, and all of them have passed ISO9001:2008 international quality system authentication. We have enough capability for your big orders.

1. How about the quality of products in your company?

We have high and best quality products and our products get some good feedbacks from clients over the world. Once you got our peoducts with some questions under guarantee, we will provide helps at first time. at the usual time we keep our records about products complaints as low as 1%.

2. Are you a manufacturer?

Yes, we are a manufacturer, not agent. We have own factory, which is located changzhou, CHINA. We have a leading power in producing and exporting galvanized steel pipe etc. I promise that we are what you are looking for. and Welcome you to contact us !
