High torque nema 17 42mm high precision geared gear reducer stepper motor for 3d printer

The 42mm Hybrid Stepper Motor Series is available with a high performance gear box. Our gearboxes come in a high efficiency, high accuracy planetary gear configuration. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

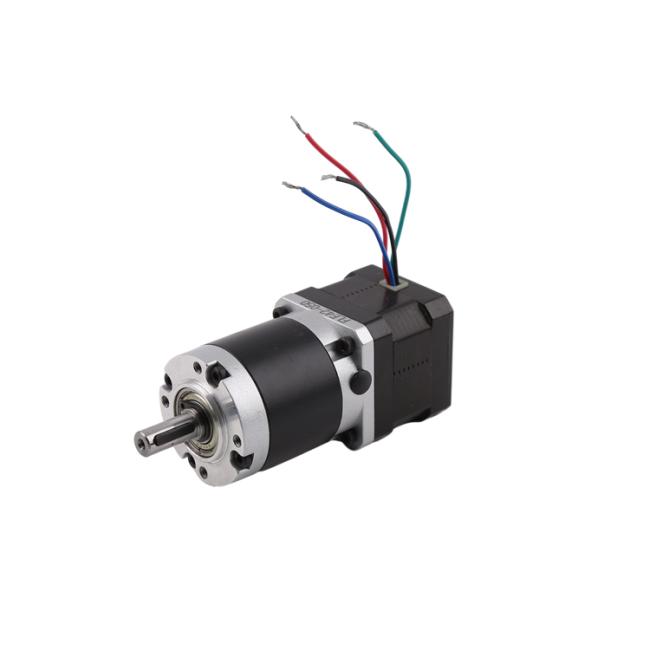

This is a 42mm square hybrid stepper motor (NEMA 17)  mount with a planetary gearbox.

There are several gearbox ratio for you to choose, gear ratio from 3.71 to 719.98

Base on different gear stage, gearbox will have different length and efficiency.

1 stage:    32.2 mm length, 90% efficiency

2 stages:  40.0 mm length, 80%  efficiency

3  stages: 50.0 mm length, 72% efficiency

4  stages: 57.0 mm length, 63% efficiency

Please let us know the following Parameter if we are lucky to attract your interests:

1. Voltage & Frequency
2. Number of revolutions and direction of rotation
3. Type of output shaft ( Our standard shaft our your customized shaft)
4. Torque on output shaft
5. Length of lead wire if you have requirements

The necessary driving device or control device for the customer can cooperate with the customer for development.
The basic step angle of the motor is 1.8 degrees.
At the same time, we can provide the same size products with a step angle of 0.9 degrees!

The output part is linear.

Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

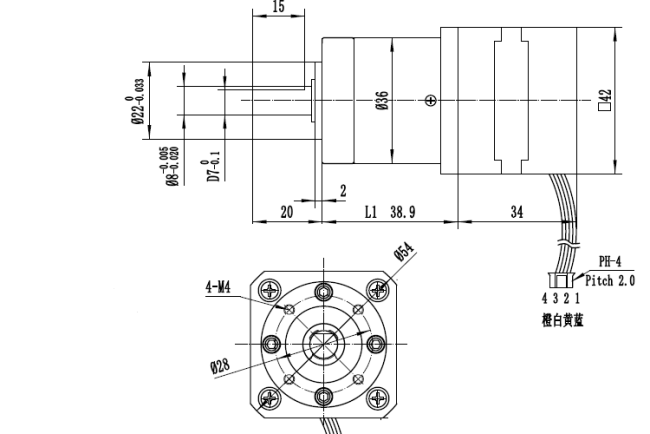

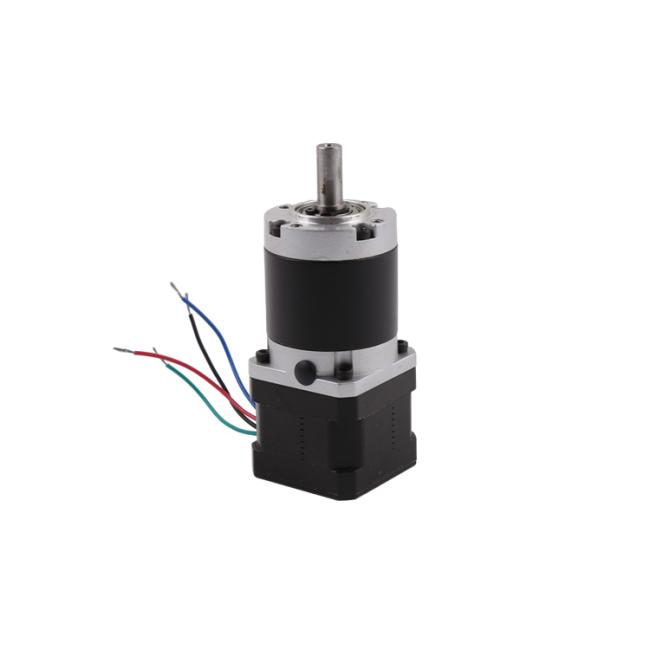

42mm(NEMA17) geared stepper motor with planetary gearbox

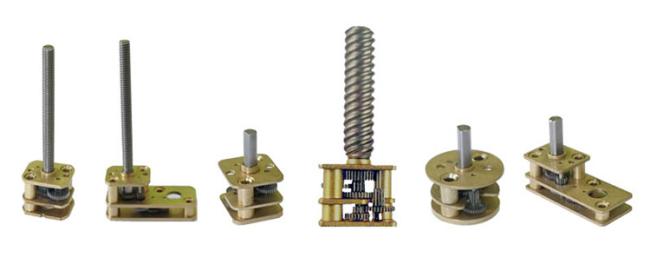

SHAFT TYPES:

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

• Round Type :DIA3mm. 4mm. 5mm
• D-cut   Type: DIA3-D2.5  DIA4-D3 etc
• Screw Type:  M3 M4 M5 Serial
• Trape  Type
• I-cut    Type:  DIA3-I2 DIA4-I3
• Other  Type:  Shaft with a hole etc

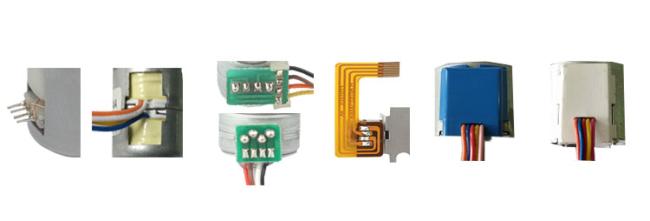

TYPE of WIRE CONNECT:

Motor input method with Pin type

, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
