25mm 4 Phase 6 Wires 7.5 degree Geared Stepper Motor Chinese Wholesale Supply PM Stepper Motor 25-048S-193

25mm 4 Phase 6 Wires 7.5 degreeGeared Stepper Motor Chinese Wholesale Supply PM Stepper Motor 25-048S-193

Permannent Magnet Stepper Motor Gearbox.This product is mainly used for sanitary ware, thermostatic valve, hot water faucet, automatic adjustment of water temperature and water flow, etc.
At the same time, it can realize other fields that require precise control. Due to the realization of open-loop control, low-cost position control is realized.
Used in gas valves, water purifier valves, instruments and other automatic control areas of precision control.
At the same time, the external wiring part can be used according to customer requirements for various types and lengths of connecting lines, or FPC FFC.
The output part can be used in various ways such as gears, pulleys, V-grooves and turbine screws.
The shape of the mounting plate and the angle of the outlet can be adjusted according to customer needs!

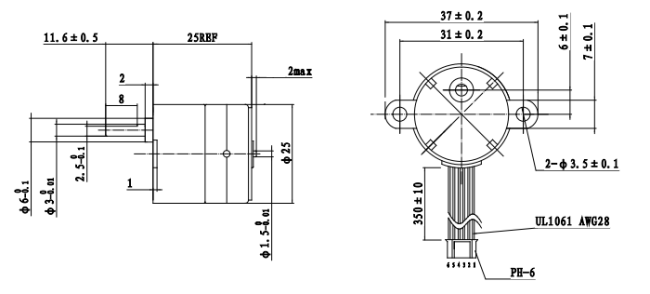

Mechanical Dimension:MM

Typical Applications

• Saliva Analyzer
• Blood Analyzer
• Welding Machine
• Intelligent Security Products
• Fiber Fusion Splicer
• Digital Electronics

Specifications

Type of Wire Connect

Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Shaft Type

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

• Round Type :  DIA3mm. 4mm. 5mm

• D-cut Type:     DIA3-D2.5 DIA4-D3 etc

• Screw Type:    M3 M4 M5 Serial

• Trape Type

• I-cut Type:       DIA3-I2   DIA4-I3

• Other Type:      Shaft with a hole etc

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

Product Detail Presentation
