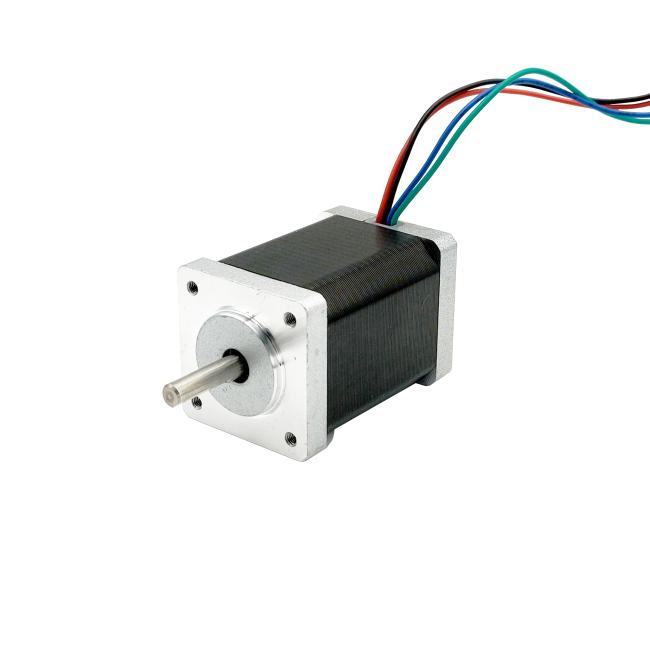

NEMA14 35mm 1.8 Degree electric stepper motors High Precision 2-Phase Hybrid Stepping Motor
NEMA14 diameter 35mm 1.8 degree step angle high precision 2-phase hybrid stepping motor
The stepping motor is a mechanical structure, which does not require changes in brushes or Hall sensors, which increases the life of the motor. The life of a stepper motor is usually determined by the life of the bearing.
Optimized design of induction cooker, increase torque, reduce temperature rise, and make the motor run smoothly
The angular displacement of the stepping motor can be precisely controlled by the number of electrical pulses, and the angular accuracy can be controlled within ±0.09° without any feedback device.
Our products can be customized, if you are interested, you can write to me.

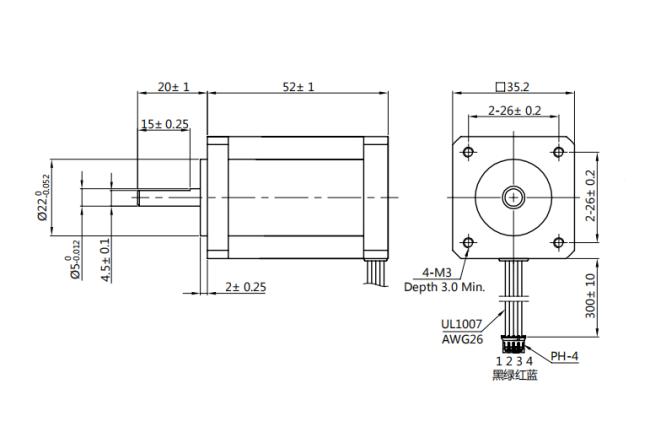

Mechanical Dimension:MM
Typical Applications
- 3D Printer
- Monitoring Equipment
- Medical Machinery
- Vending Machine
- Engineering Vehicle
- CNC Engraving Machine
- ATM Machine
Specifications
| Motor diameter | 35mm |
|
Number of Phase |
2 phase |
| Step angle | 1.8 degree |
| Rated voltage | 3.92V |
| Rated current/phase | 1.4A(Peak Value) |
| Resistance/phase | 2.8Ω±10%(20℃) |
|
Phase lnductance |
4mH±20%(1kHz 1V RMS) |
|
Holding Torque |
40N.cm |
|
Insulation Class |
B(130°)80K MAX |
|
Weight |
0.3kg |
The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.
Product Detail Presentation
