SM08-31L M2 Lead Screw 18 Degree Linear Stepper Motor 8mm With Naked Pins
SM08-31L 8mm M2 lead screw 18 degree linear stepper motor with naked pins without PCB
This is a 8mm stepper motor with M2 lead screw on top. (M2*0.4 mm pitch)
The lead screw length is customizable.
The coil resistance of motor is also customizable (resistance of this motor is 6Ω/phase)
This motor has naked pins, without PCB and cables.
We can solder PCB and cables, if customers want them.

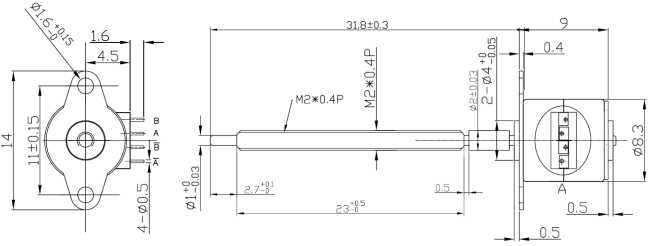

Mechanical Dimension:MM
Technical Features
| Model No. | SM08-31L |
| Motor type | 8mm stepper motor with lead screw |
| Rated voltage | 3.3V |
| Coil resistance | 6Ω/phase |
| Step angle | 18°/step |
| Pull out torque | 3 g*cm at 500 PPS |
| Lead screw type | M2 * 0.4P |
| Lead screw length | 31.8mm |
| Travel per step | 0.02mm/step |
8mm micro stepper motor is a small type motor for precision instrument.
Typical Applications
-
Intelligent Security Products
-
Camera Lenses
-
Door Locks
-
Wearable device
Specifications
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.

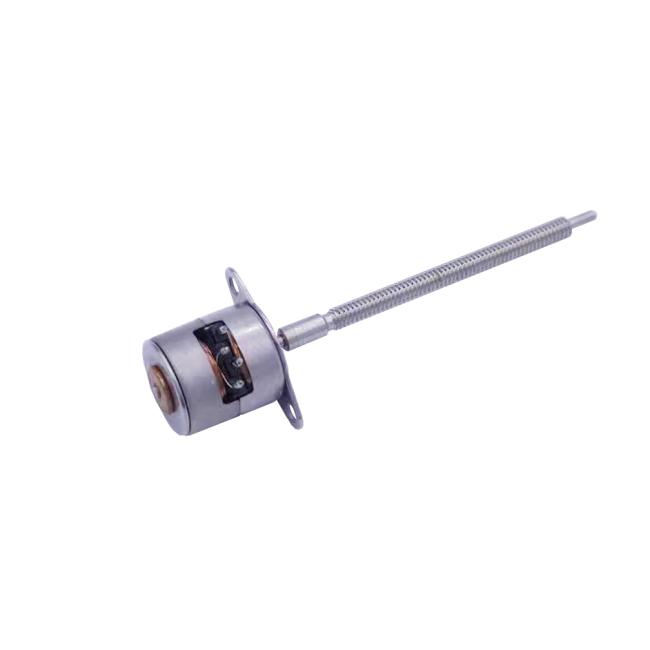

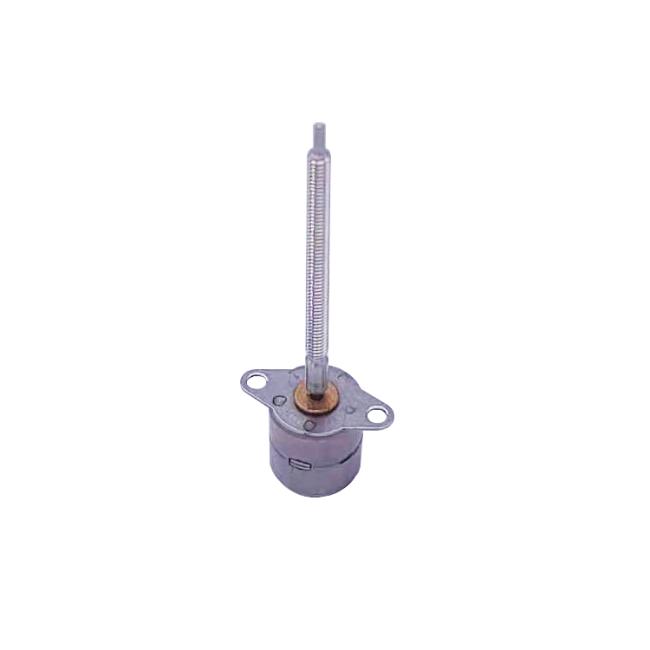

Product Detail Presentation
