Introduction
- Our granules have good fluidity thus guaranteeing your smooth production. The good raw material can reduce the rate of rejects, and can produce high quality strips.
- Our PA66GF25 granules is special material for heat insulation profiles. It's extrusion grade modified plastics. It is different from PA66 resin.

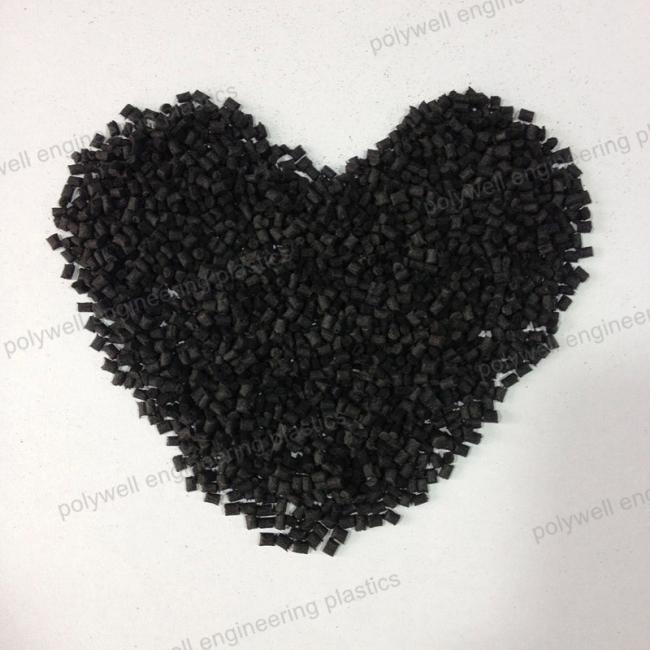

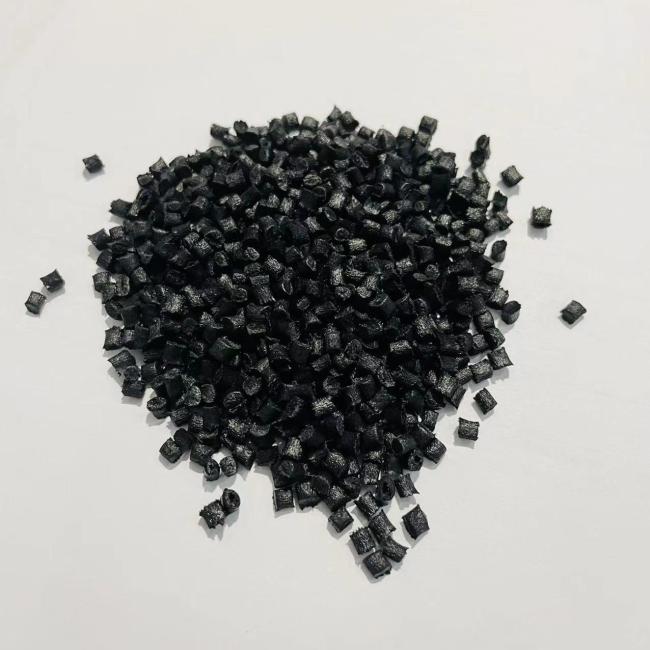

- Our PA66GF25 granules is reinforced by 25% glass fiber.
Advantages
1. It has excellent mechanical properties, high strength, high toughness.
2. The material has excellent coloring ability, can achieve various requirements of color matching
3. The shrinkage rate of PA66 is between 1% and 2%. The addition of glass fiber additives can reduce the shrinkage rate to 0.2%~1%. The shrinkage ratio is large in the flow direction and in the direction perpendicular to the flow direction.
4. PA66 is resistant to many solvents, but is less resistant to acids and other chlorinating agents.
5. PA66 excellent flame retardant performance, by adding different flame retardants can achieve different levels of flame retardant effect.
Application

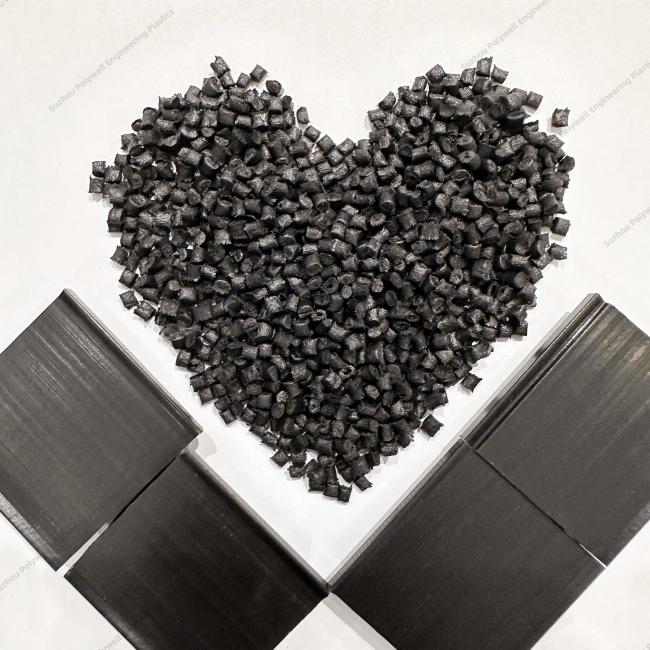

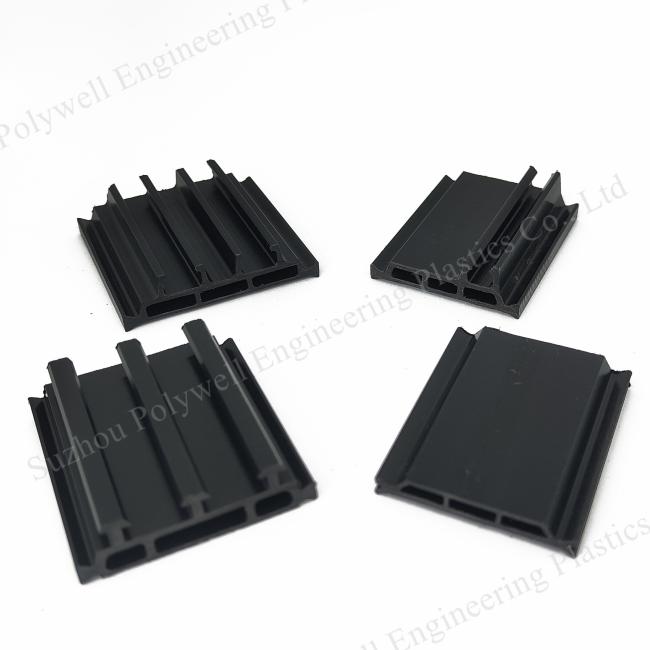

The PA66 granules with fiber glass are mainly used in thermal break strips, which are used in aluminum windows and doors.
Product Parameters
|
Item |
Unit |
GB/T 23615.1-2009 |
PW-Technical specification |
|
Density |
g/cm3 |
1.3±0.05 |
1.28-1.35 |
|
Linear expansion coefficient |
K-1 |
(2.3-3.5)×10-5 |
(2.3-3.5)×10-5 |
|
Vicat softening temperature |
ºC |
≥230ºC |
≥233ºC |
|
Melting point |
ºC |
≥240 |
≥240 |
|
Testing for tensile cracks |
- |
No cracks |
No cracks |
|
Shore hardness |
- |
80±5 |
80-85 |
|
Impact strength(Unnotched) |
KJ/m2 |
≥35 |
≥38 |
|
Tensile strength(longitudinal) |
MPa |
≥80a |
≥82a |
|
Elasticity modulus |
MPa |
≥4500 |
≥4550 |
|
Elongation at break |
% |
≥2.5 |
≥2.6 |
|
Tensile strength(transverse) |
MPa |
≥70a |
≥70a |
|
High temperature tensile strength(transverse) |
MPa |
≥45a |
≥47a |
|
Low temperature tensile strength(transverse) |
MPa |
≥80a |
≥81a |
|
Water resistance tensile strength(transverse) |
MPa |
|
≥35a |
|
Aging resistance tensile strength(transverse) |
MPa |
≥50a |
≥50a |
1. Sample water content less than 0.2% by weight.
2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3. The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.
Packing & Delivery
Packaging details: 25kg/bag
Delivery details: shipped in 10-15 working days after receiving the payment
