PA66GF25 Plastic Extrusion Line Machine Granules Processing Thermal Break Strips
PA66GF25 Granules Processing Thermal Break Strips Plastic Extrusion Line Extrusion Machine

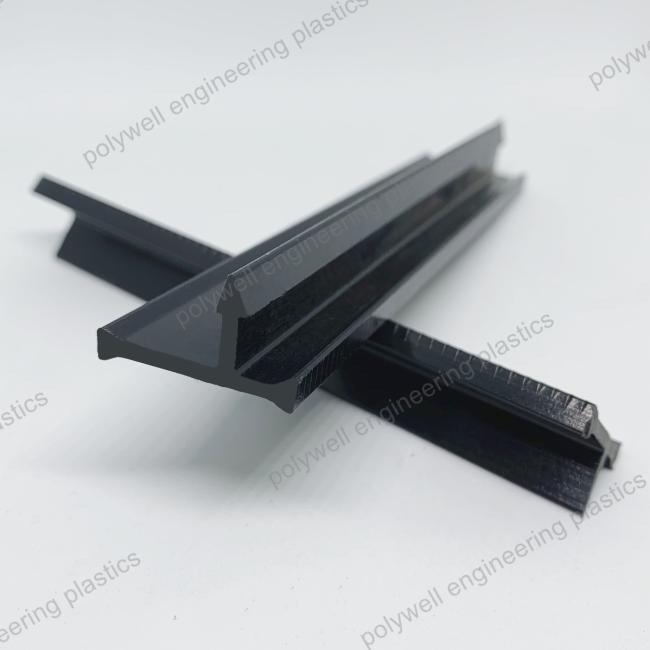

Automatic PA profiles extruding machine is for the production of polyamide thermal break profiles, which used in aluminum windows and doors.
Many customer use thermal break aluminum profile to do windows and doors to keep the heat from being affected by cold air, then make use of energy saving.

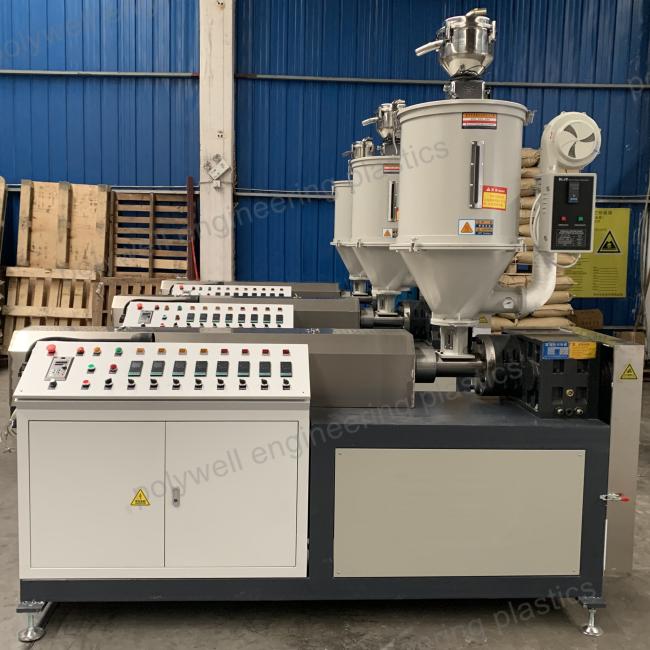

We provide high quality PA profiles extruding machine along with various molds and raw material-PA66GF25 granules, and also the subsequent technical assistance. This machine includes raw material auto feeding machine, hopper dryer, main engine, frequency converter and gearbox.
Processing Technique:
Nylon material → drying → heating → extrusion → stereotype → finished product
Machine Characteristic:
1. The barrel is heated by stainless steel heater, withstand voltage 400V
2. The professional dryer makes raw material convection with hot air uniformly, and the drying uniformity is good. Its thermal insulation structure prevents heat dissipation and promotes energy saving.
3. Special new screw make sure the machine has low energy consumption, good plasticizing ability and stable extrusion flow.
4. The extruder uses high-quality carbide twin-screws to ensure high plasticization of PA66GF25 granules
5. One temperature control zone controlled by one table, and the temperature accuracy can be controlled at ±1℃.
Parameters of Single Screw Reactive Extruder:
| Model | Capacity | Screw diameter | Power | Voltage | Loading of Dryer |
| PW-S60 | 18-25kg/h | 60mm | 8kw | 380V | 75kg |
| PW-S70 | 20-35kg/h | 70mm | 16kw | 380V | 100kg |
| PW-S80 | 20-60kg/h | 80mm | 25kw | 380V | 150kg |
| Material | PA66GF25 |
| Production Speed | 8-14 cm/min |
| Max Output | 60-80 kg/h |
| Power | 380V,50Hz or customized |
| Water | Tap water or well water |
Application:
1. Used for thermal break aluminum window, door, curtain and walls
2. Many customer use thermal break aluminum profile to do big air conditioner to keep heat of cold air, then make use of energy saving
What are the advantages of plastic extrusion?
The extrusion process is fast and efficient at producing continuous shapes in varying lengths. Products can be produced in large volumes, and there is minimal wastage. Complex shapes can be produced with varying thickness, textures, colors etc.
Our Service
Before sales
1. Introduce products in detail
2. Recommend suitable solutions
3. Provide with reference information
During manufacturing
1. Provide with layout and engineering conditions
2. Inform the processing status
3. Offer related documents
After Sales
1. Provide installation, commissioning and training
2. Offer spare parts
3. Provide with necessary technical support
FAQ
Q: What is your MOQ for the polyamide strip extrusion machine?
A: 1 set.
Q: As new player of polyamide strips extrusion, how we learn to use the machine?
A: Polywell will provide paper and videos files to help customer operate the machine. If customer needs, we can also provide on site training service.
Q: Can we customize and buy the raw materials and molds?
A: We can provide every product related to the polyamide thermal break profiles production. Including the raw material, the mold, the cutting machine, the worktable, the winder and so on.
Q: What is the warranty for your machine?
A: For extruder machine, it is one year. We are confident in our products, and pack them well before delivery, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately.
Q: What is your payment terms?
A: 50% T/T deposit before production, 50% T/T balance before loading.
