Fully Automatic Customized PVC UPVC Plastic Single Wall Solid Water Pipe Production Line Making Machine Equipment
20-63mm Double Cavity UPVC PVC CPVC Electric Conduit Pipe Making Machinery Equipment
Product Description

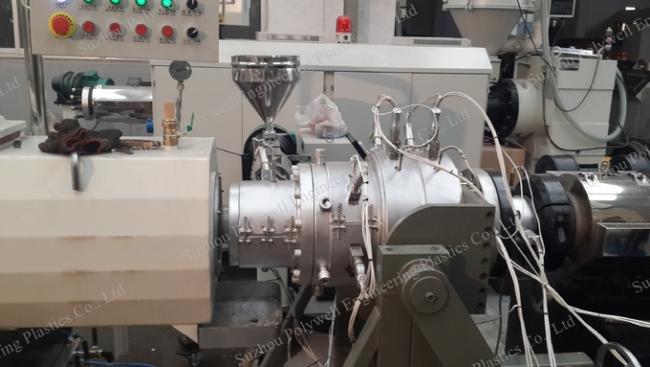

The PVC Pipe production line is mainly used in the area of agricultural water supply system, architectural water supply system(water supply and drainage pipe), pavement of cables and as well as different diameter and thickness of PVC Pipes. The complete PVC Pipe production line is composed by conical twin screw extruder, pipe extrusion mold, vacuum calibration tank, haul off machine, cutter and stacker, belling machine (flaring machine). The main extruder and haul off we adopts ABB inverter, vacuum pump and motors adopt high quality famous brand. Haul off machine has two claws, three claws, four claws, six claws and eight claws accord to different pipe diameters. For pipe cutting machine has saw and planetary cutting type, which additionally attached with the meter counter and intensifying device. The production line is easily installation and operation, simple maintenance with reliable quality.
Production Process

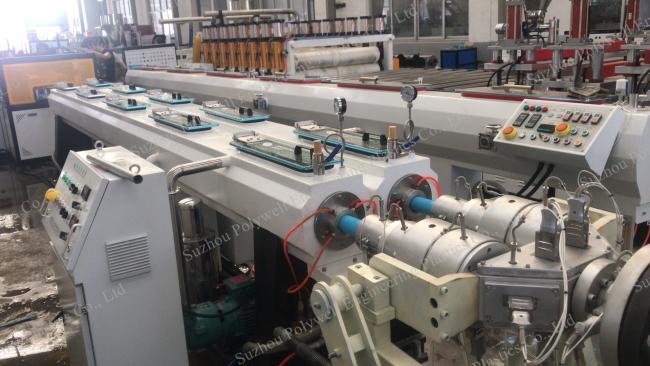

Material → mixer → forced Feeding → conical double screw extruder → mould&calibrator → vacuum spay cooling tank → printer→ haul-off → cutter → stacker
The whole production line

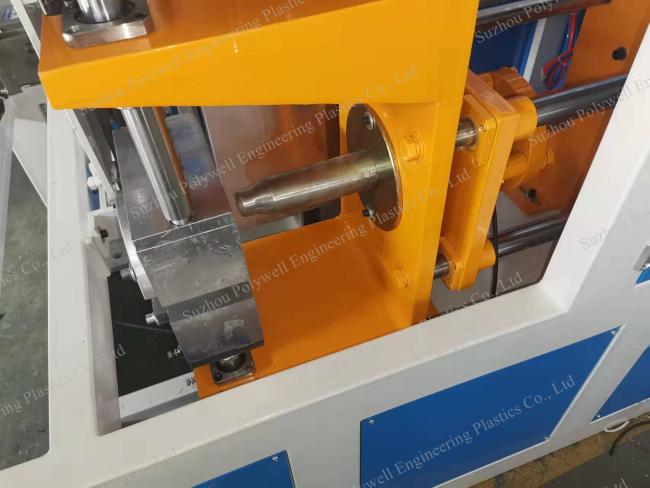

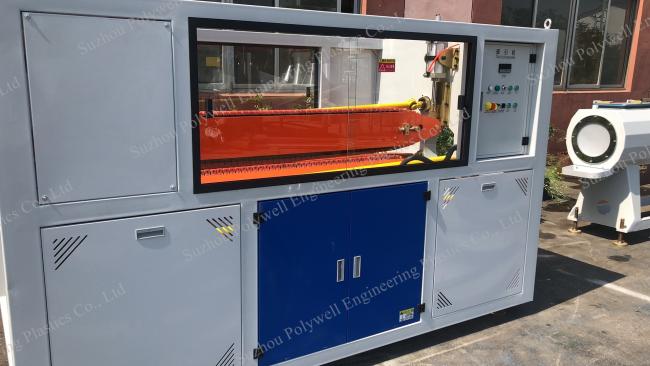

| No. | Item | Quantity |
|---|---|---|
| 1 | SJSZ series conical twin screw extruder (Equipped with automatic feeding unit) | one set |
| 2 | Die and Mold | one set |
| 3 | Vacuum calibration water tank | one set |
| 4 | Haul-off unit | one set |
| 5 | Cutter Unit | one set |
| 6 | Stacker | one set |
| Optional auxiliary machines in production for your choice | ||
| A | Printer | one set |
| B | Mixer | one set |
| C | Crusher | one set |
| D | Milling machine | one set |
| 5 | Belling machine | one set |
Features
- Main machine uses PVC high efficiency screw, and notch feeder with powerful water cover cooler, which has greatly improved transmitting capability and ensured extruding. Dc running electric machine with high-quality speed adjuster
- Applied for the basket-shaped composite electric head for processing polythene, which not only ensures the stability of high efficiency extruding, but also achieves the minimum stress and highest pipe quality brought by low melting temperature
- Adopting high efficiency double-cavity vacuum calibrating technology and spray-paint cooler gullet, which improve the finished product passing rate, and meet the requirements of high speed manufacturing. Vacuum calibrating platform and cooler gullet are all made of stainless steel
- Adopting multi-track traction, through the central motor to run all the tracks to reach same height, and ensure roundness of pipes
- Adopting fully automatic control system with high precision, reliable operation, easy and convenient handling
- Suitable pipe diameter: 16 - 630mm
Technical parameters
|
Diameter Range (mm) |
Extruder Type |
Extrusion Power(KW) |
Max. Capacity (kg/h) |
Max. Haul Off Speed (m/min) |
|---|---|---|---|---|
| Ф16-40 | SJZ51/105 | 18.5 AC | 120 | 10 |
| Ф20-63 | SJZ65/132 | 37 AC | 250 | 15 |
| Ф20-63 | SJZ51/105 | 18.5 AC | 120 | 15 |
| Ф50-160 | SJZ65/132 | 37 AC | 250 | 8 |
| Ф75-160 | SJZ80/156 | 55AC | 450 | 6 |
| Ф63-200 | SJZ65/132 | 37 AC | 250 | 3.5 |
| Ф110-315 | SJZ80/156 | 55 AC | 450 | 3 |
| Ф315-630 | SJZ92/188 | 110 AC | 800 | 1.2 |
| Ф710-1000 | SJZ92/188 | 110 AC | 1100 | 1.2 |

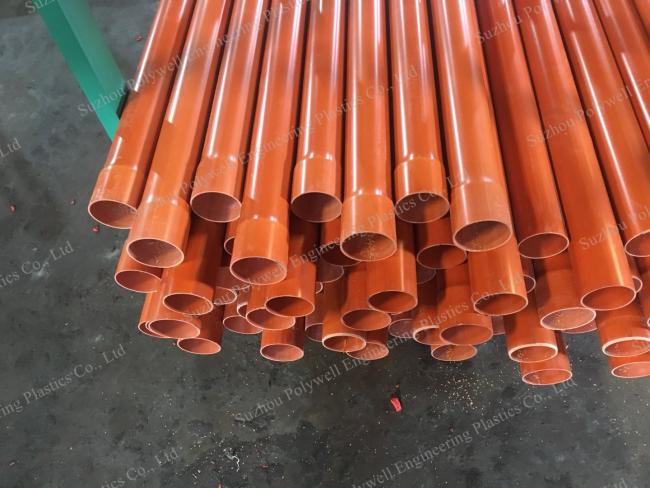

Application
1).Water supply, drainage pipelines in building;
2).Rainwater drainage pipelines in building;
3).Electrical wiring pipe in building;
4).Air conditioning condensate water systems.
Services
1. We could send engineers to the buyer's factory for installation instruction, commissioning and training service at buyer's cost.
2. Our machine has one year guarantee since the installation in buyer's factory. During the guarantee time, if any parts (except the easy damaging parts) are damaged under normal operation, we will offer free spare parts. After the guarantee time, we will offer the spare parts with cost price.
3. If the buyer has any problem during the operation, we will offer technical solutions.
