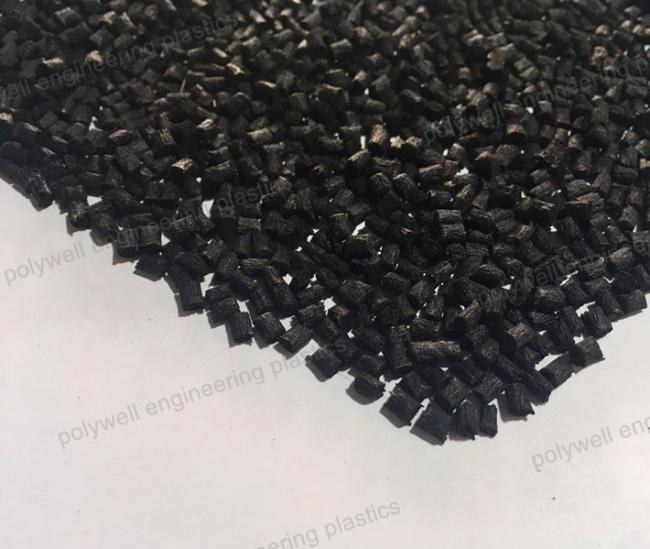

Extrusion Grade Plastic Polyamide Raw Material Nylon 66 Pellets Specialty Plastics With Glass Fiber Reinforced
Extrusion Grade Plastic Polyamide Raw Material Nylon 66 Pellets Specialty Plastics With Glass Fiber Reinforced
Basic Info.
Model NO.: PA66GF25 Modified Plastics
Material: Polyamide6.6 and fiberglass
Usage: General Plastics, Engineering Plastics, Specialty Plastics and Heat insulation plastics
Plastic Properties After Heated: Thermoplastic Plastics
Plastic Forming Method: Extrusion
Color: Black
Export Markets: Global
Additional Info.
Trademark:Polywell
Pcking: 25kg/bag
Standard: According to Chinese National Standard
Origin: China
HS Code: 390810
Production Capacity: 20MT/ Day
What is Polyamide 66 GF25?
Polyamide 66 GF25, dry impact resistent (PA 66), used for a variety of applications for thermal insulation in aluminum windows, doors and facade systems, polyamide (PA) offers good insulating properties and excellent mechanical performance
Reinforced with glass fibers, the special PA 66 GF25, dry impact resistant mixture offers the best solution for aluminum systems for optimum results
Polywell PA66 Granules Performance Table
| NO. | Item | Unit | GB/T 23615.1-2009 | PW-Technical specification |
| Material Properties | ||||
| 1 | Density | g/cm3 | 1.3±0.05 | 1.28-1.35 |
| 2 | Linear expansion coefficient | K-1 | (2.3-3.5)×10-5 | (2.3-3.5)×10-5 |
| 3 | Vicat softening temperature | ºC | ≥230ºC | ≥233ºC |
| 4 | Melting point | ºC | ≥240 | ≥240 |
| 5 | Testing for tensile cracks | - | No cracks | No cracks |
| 6 | Shore hardness | - | 80±5 | 80-85 |
| 7 | Impact strength(Unnotched) | KJ/m2 | ≥35 | ≥38 |
| 8 | Tensile strength(longitudinal) | MPa | ≥80a | ≥82a |
| 9 | Elasticity modulus | MPa | ≥4500 | ≥4550 |
| 10 | Elongation at break | % | ≥2.5 | ≥2.6 |
| 11 | Tensile strength(transverse) | MPa | ≥70a | ≥70a |
| 12 | High temperature tensile strength(transverse) | MPa | ≥45a | ≥47a |
| 13 | Low temperature tensile strength(transverse) | MPa | ≥80a | ≥81a |
| 14 | Water resistance tensile strength(transverse) | MPa | ≥35a | ≥35a |
| 15 | Aging resistance tensile strength(transverse) | MPa | ≥50a | ≥50a |
1.Sample water content less than 0.2% by weight.
2.Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3.The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.
Delivery info.
Delivery details: shipped in 5-8 working days after receiving the payment
