C Shape 25mm PA66 Polyamide Thermal Break Strips For Aluminium Windows And Doors
Product Description

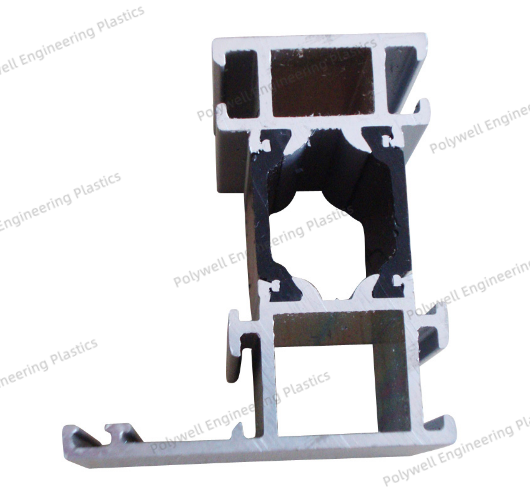

Over the years, polyamide heat-insulation strip has been widely used in glass curtain walls due to its good properties and low cost. Especially Polyamide 66 reinforced by 25% glass fiber thermal break strips, they are inserted into aluminum window, door and facade profile for thermal insulation.

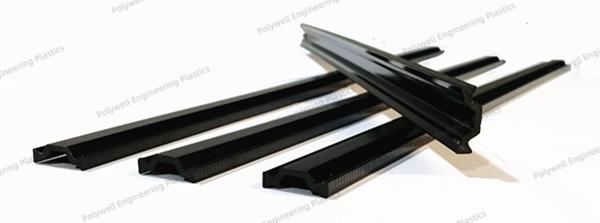

The shape C polyamide thermal insulation strip can prevent the window frame from dust and water, also has a more beautiful appearance than the shape I, but not so firm.
For the shape C, we can provide the following size or customize according to customers' requirements.
Product Parameters
|
Name |
Specification |
Brand |
Material |
|
Polyamide Granules |
PA66 GF25 |
Polywell |
PA66, Fiberglass |
|
Item |
Unit |
GB/T 23615.1-2009 |
PW-Technical specification |
|
Density |
g/cm3 |
1.3±0.05 |
1.25-1.35 |
|
Linear expansion coefficient |
K-1 |
(2.3-3.5)×10-5 |
(2.3-3.5)×10-5 |
|
Vicat softening temperature |
ºC |
≥230ºC |
≥230ºC |
|
Melting point |
ºC |
≥240 |
≥240 |
|
Testing for tensile cracks |
- |
No cracks |
No cracks |
|
Shore hardness |
- |
80±5 |
76-85 |
|
Impact strength(Unnotched) |
KJ/m2 |
≥35 |
≥35 |
|
Tensile strength(longitudinal) |
MPa |
≥80a |
≥80a |
|
Elasticity modulus |
MPa |
≥4500 |
≥4500 |
|
Elongation at break |
% |
≥2.5 |
≥2.5 |
|
Tensile strength(transverse) |
MPa |
≥70a |
≥70a |
|
High temperature tensile strength(transverse) |
MPa |
≥45a |
≥45a |
|
Low temperature tensile strength(transverse) |
MPa |
≥80a |
≥80a |
|
Water resistance tensile strength(transverse) |
MPa |
≥35a |
≥35a |
|
Aging resistance tensile strength(transverse) |
MPa |
≥50a |
≥50a |
1. Sample water content less than 0.2% by weight.
2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3.The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.
Advantages
1.Effectively increased thermal in the system property insulation.
2.Reduces condensation on the window.
3.Sound insulated.
4.Improve comfort and living condition.
5.Possible double color coatings provide better aesthetic effect.
6.Various shapes will be designed for the customer's requirements.
7.The working temperature of the thermal insulation strip is 220°C, Melting Point reaches to 246°C. This enables coating process after assembly of composite profiles.
8.High corrosion-resistance, weather-resistance, heat-resistance, alkali-resistance and long life of usage.
9.linear thermal dilation coefficient almost identical to that of aluminium profiles.
Storage Conditions
The strips will be stored in the ventilated and dry environment, horizontally placed, paying attention to waterproof, keeping away from the heat source, avoiding heavy pressure and the contact with acid, alkali as well as organic solvent.
Packages
For all specifications/shapes, they could be packaged in linear, the length will be 6 meters, or customized.
For the Shape "I", "C", and some simple shapes, they can be packed in rolls. 400-600 meters/roll.
Delivery

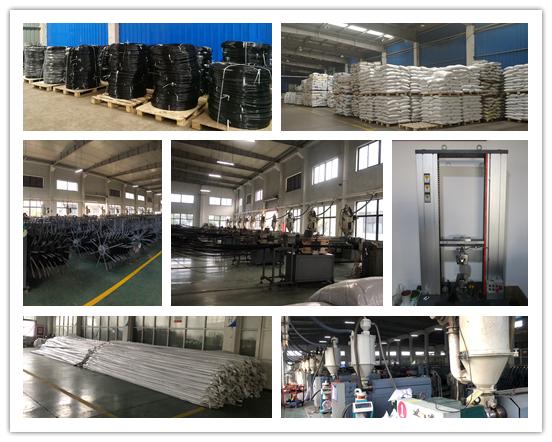

We have the production capacity of 100000 meters per day. For common specifications, we have molds, and will be shipped in 10-20 working days after receiving the deposit.
