PA6/66 Plastic Recycling Granulator Machine Multiple Feed With 400r/Min Speed
Product Description
High quality parallel twin screw extruder manufacturers are widely used in rubber and plastic and engineering resin filling, blending, modification, reinforcement, chlorinated polypropylene and super absorbent resin devolatilization treatment; Degradable masterbatch, Polyamide Polycondensation, Polyurethane Polymerization Extrusion; Particle granulation of carbon Powder, Magnetic Powder, Insulation material for Cable, sheath material, low smoke and low Halogen.
Main Features
1) Easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Quick delivery time.
4) Running in a high automatization and intellectualization,no pollution
5) Machine run steadily, no maintenance.
Competitive advantage
1.Lower power consumption.
2.Low noise, work stable and durable.
3.Modular principle design for screw configuration and barrel setup makes combination and cleaning convenient, also easy to adapt to customers' requirements.
4.Screw elements and kneading blocks are made of high tool steel , with high corrosion-resistant and high wear-resistant.
5.Barrels are made of high quality nitrided steel, corrosion proof and antifriction.
6.Vacuum system fulfills devolatilization to ensure the quality of polymer processing.
7. The screw is a double screw, which cannot jam material even if a large material roar is added, and is easy to use.
8. The screw element is connected with the mandrel by an involute connection, which has high strength, large load carrying capacity. It is convenient to assemble and disassemble.
9. Through the specific combination of screw, the produced granules are more suitable for the extrusion of nylon profiles.
Machine Parts
Name: PA66 Pellet Granulator Machine
Brand: Polywell
Lower power consumption, Low noise, work stable and durable.
Reference Values of Parallel Twin-screw Extruder
| Operating Capability kg/h | ||||||||
| Process | Materials | 20 | 35 | 50 | 65A | 75A | 95 | 132 |
| Mixing Nature-changing | PA | 2-10 | 25-60 | 80-180 | 160-250 | 300-400 | 600-1100 | 800-1800 |
Technical Data Of Parallel Twin-screw Extruder
| Model | D(mm) | L/D | Nmax(r/min) | P(kw) | Q(kw) |
| PW-D65 | 62.4 | 24-48 | 400-500 | 55-75 | 200-500 |
| PW-D75 | 71 | 24-48 | 400-500 | 90-110 | 300-600 |
| PW-D95 | 93 | 2-48 | 300 | 132-135 | 500-1000 |
Packing & Delivery
|
Packaging |
|
|
Weight |
3-4 T |
|
Packaging Details |
The normal package is wooden box.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Our Service
Before sales
1. Introduce products in detail
2. Recommend suitable solutions
3. Provide with reference information
During manufacturing
1. Provide with layout and engineering conditions
2. Inform the processing status
3. Offer related documents
After Sales
1. Provide installation, commissioning and training
2. Offer spare parts
3. Provide with necessary technical support
Our Company

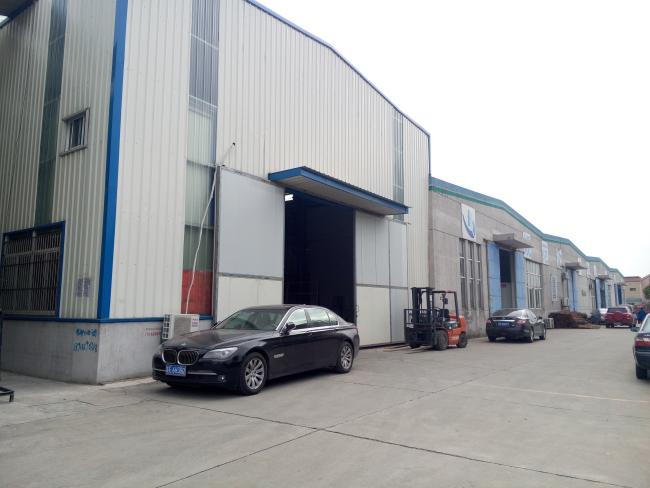

Our company is located in the city of Zhangjiagang, Jiangsu Province, China. We have been making research and development for special material of PA66 thermal insulation strip since 2006.
We expanded our business scope since the year of 2010. We not only produce PA66 granules and PA66 thermal barrier strips, but also sell parallel twin-screw granulator, extruding machine, mould and production technology.
we are developing overseas market. We are going to promote our products all around the world, to seek win-win cooperation, mutual benefits and mutual development with our customers.
Welcome to visit our company!
