380V 50Hz Automatic Capsule Filling Machine 1500×1250×2200mm Overall Size

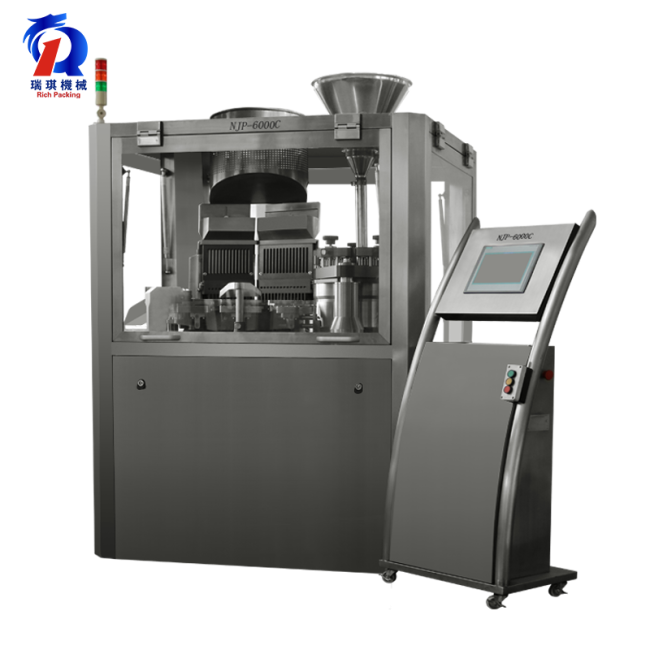

GMP CE Pharmacy Automatic Hard Gelatin Capsule Filling Machine
| Production capacity | 360000pcs/h |
| Net weight of machine | 3000Kg |
| Overall size of machine | 1500×1250×2200mm |
| Power | 380V 50Hz |
| Total power | 11KW |
| No.of segment bores | 43 |
| Vacuum | -0.02~0.06Mpa |
| Dust collector | Air consumption 0.2m3/min Air pressure 0.3-0.4Mpa |
| Noise | <75DB(A) |
| Making rate | Empty capsule 99.9% Full capsule 99.8% |
| Applicable capsule | 00,0,1,2,3,4,5# |
| Filling error | Western medicine:±3% Chinese medicine:±4% |
| Applicable product | Power,granule,pellet,tablet |
1. The capsule filler machine has 6 technological innovations and 2 invention patents.
2. Pharmacy capsule filling equipment can fill powder, granules and other materials into hollow capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#).
3. The control of capsule filler machine appliance adopts the world famous brand, modularized setup, convenient inspection and maintenance, SIEMENS human machine interface, real-time counting, and can print the equipment according to customer needs, print production date, batch number, code, etc.
4. The separation device of pharmacy machinery has been innovated to separate the powder from the waste capsule and avoid the pollution of the reclaimed powder. (Optional)
5. All the parts of the contact drug of pharmacy equipment are made of stainless steel 316, and the waste device adopts seven lines of aero aluminum.
6. The capsule filling equipment is small in volume, low in energy consumption, convenient in cleaning and stable in operation. The capsule filling machine is suitable for continuous production of 24 hours.

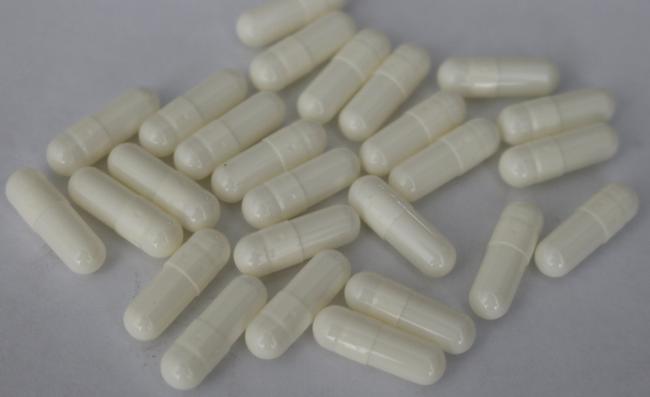

Samples of pharmacy capsule filling machine:GMP CE Pharmacy Automatic Hard Gelatin Capsule Filling Machine
